Design Concept:

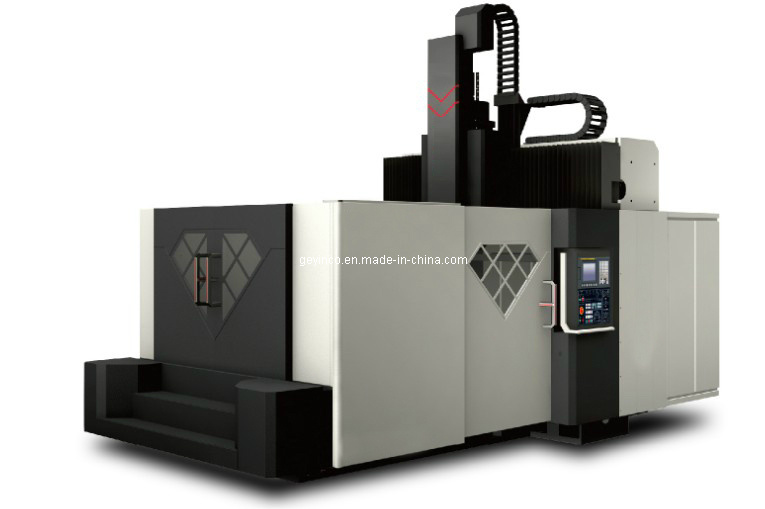

From the practical point of view, QG series reflects the features of high speed, rapid traverse, high dynamic response. It is the product for double column machining center improved towards high efficiency and high finishing processing.
Application range:
Mold Processing in high speed and with high accuracy. Parts processing in high speed and with high precision. High hardness material processing in high speed. Plastic material processing in high speed and with high accuracy.
Standard:
CNC system Mitsubishi M720vs
Direct drive mechanical spindle
Cooling system of spindle unit
Spindle hydraulic station
Pneumatic system
Grease automatic lubrication system for guides
Sir seal for Spindle end
Tools cooling system
Three-color signal lamp
Accessories and relative documents
Splash guide and safety lock
Dual screw type chip conveyor
Chain type chip conveyor with bucket
| 1. | Controller:FANUC | 10. | Tailstock center |
| 2. | Hydraulic system | 11. | Chain type chip conveyor |
| 3. | Lubrication system | 12. | Foot switch |
| 4. | Closed splash guard | 13. | Security door interlock |
| 5. | 12 position hydraulic turret | 14. | Working light |
| 6. | 15 inch solid hydraulic chuck | 15. | Alarm device |
| 7. | Tool holder | 16. | Leveling blocks |
| 8. | Cutting coolant system | 17. | Common tool kit |
| 9. | Hydraulic tailstock | 18. | Warning light |
Option:
A, CNC system FANUC or SIEMENS
B, LINEAR ENCODER
C, TOOL SETTER
D, WORKPIECE PROBE
E, TOOLS OIL MIST LUBRICATION SYSTEM
F, 24T TOOL MAGAZINECHAIN TYPE
G, AUXILIARY STEPS FOR OPERATORS
