Quick details
Place of Origin: Jiangyin, Jiangsu, China
Brand Name: Xiangle
Model Number: CL-15D
Usage: Drawing
Inlet Diameter: 1.6mm-1.0mm
Outlet Diameter: 0.6mm-0.25mm
Certification: ISO9001: 2008, SGS
Warranty: 12 months for mechanical part, and 6 month for electrical part
After-sales service Provided: Engineers available to service machinery overseas
Conductor material: Alloy wire(Dumet wire, pure nickle wire, nickle-chrome wire, copper plated steel wire, stainless steel wire)
Packaging&Delivery
Packaging Details: Plastic film packing or wooden case
Delivery Detail: 30-40days after receiving the30%~60% deposit

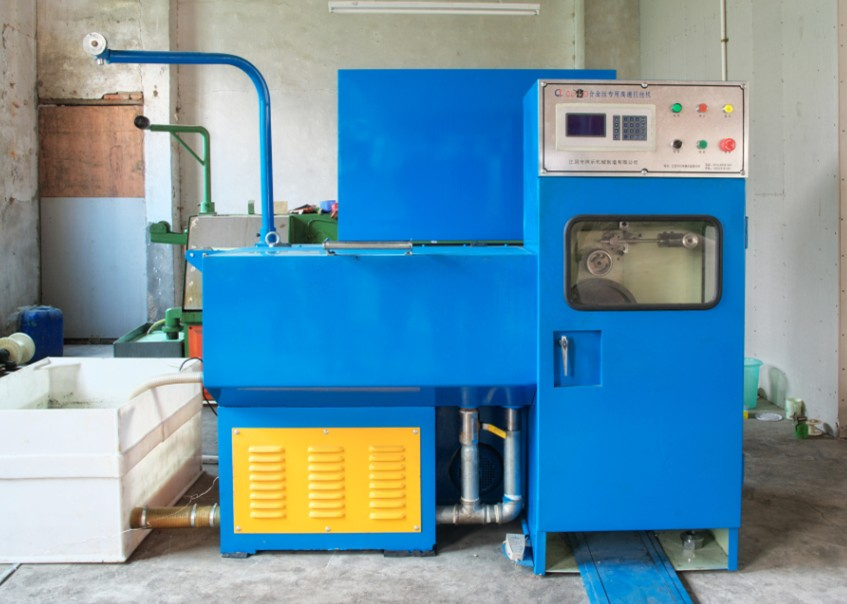

High speed drawing machine for alloy wire(20 years factory)
Main technical parameter:
1. Inlet wire: 1.6mm-1.0mm
2. Outlet wire: 0.6mm-0.25mm
3. Maximum modulus: 15
4. Drawing method: Horizontal two-axis
5. Maximum Line Speed: 1200m/min
6. Control system: Computer integrated dual frequency control
7. Capstan slip ratio: 10%
8. Capstan: Ceramic spraying or GCr15 vacuum annealing treatment
9. Max. Dia. Of capstan: 315mm
10. Dia. Of fix-speed wheel: 270mm
11. Dia. Of bobbin: 250~400 or made on customer's requirement
12. Traverse method: 90W reducing motor, adjustable liner velocity
13. Main motor: 15kw-6P
14. Take-up power: 3.7kw
15. Max. Load capacity: 30kg~50kg
16. Lubricating method: Module seat, cone pulley fully immersion
18. Drawing oil: 50KL/min
19. Dimension(L*W*H)mm: 1800mm*1200mm*1650mm
20. Weight(kg): 3000
Jiangyin Xiangle Machinery Manufacturing Co., Ltd. Has established itself as one of China's leading names in the field of Wire Drawing Machines, Annealing Furnace, and other related accessories with our promise of quality products that stay ahead of time.
Our main products are series stainless steel wire drawing machines, Spring wire drawing machine, annealing machine lines, take-up machines, copper wire drawing machine and other related equipments. We believe that perfect high-quality products only come from zero defect production process. We have adopted the advanced production equipment and technology, scientific & standardized management system and strict testing standards to ensure international advanced level on quality, structure, performance and appearance.
Our Management Concept
Quality is the life: To perfect quality is the continual goal of our company staffs all the time
Service is the key: To provide satisfying service is our responsibility.
Innovation is the power: Holding the concept of technology and innovation, we will try our best to develop new product.
Integrity is the principle: Seek truth from fact, manage company with good faith.
We make each component with all our mind and energy; Meet multiple requirements all from clients' interests. We hope to create mutual benefit with our clients!
Your choice, we care! . Please feel free to contact us for further information.
