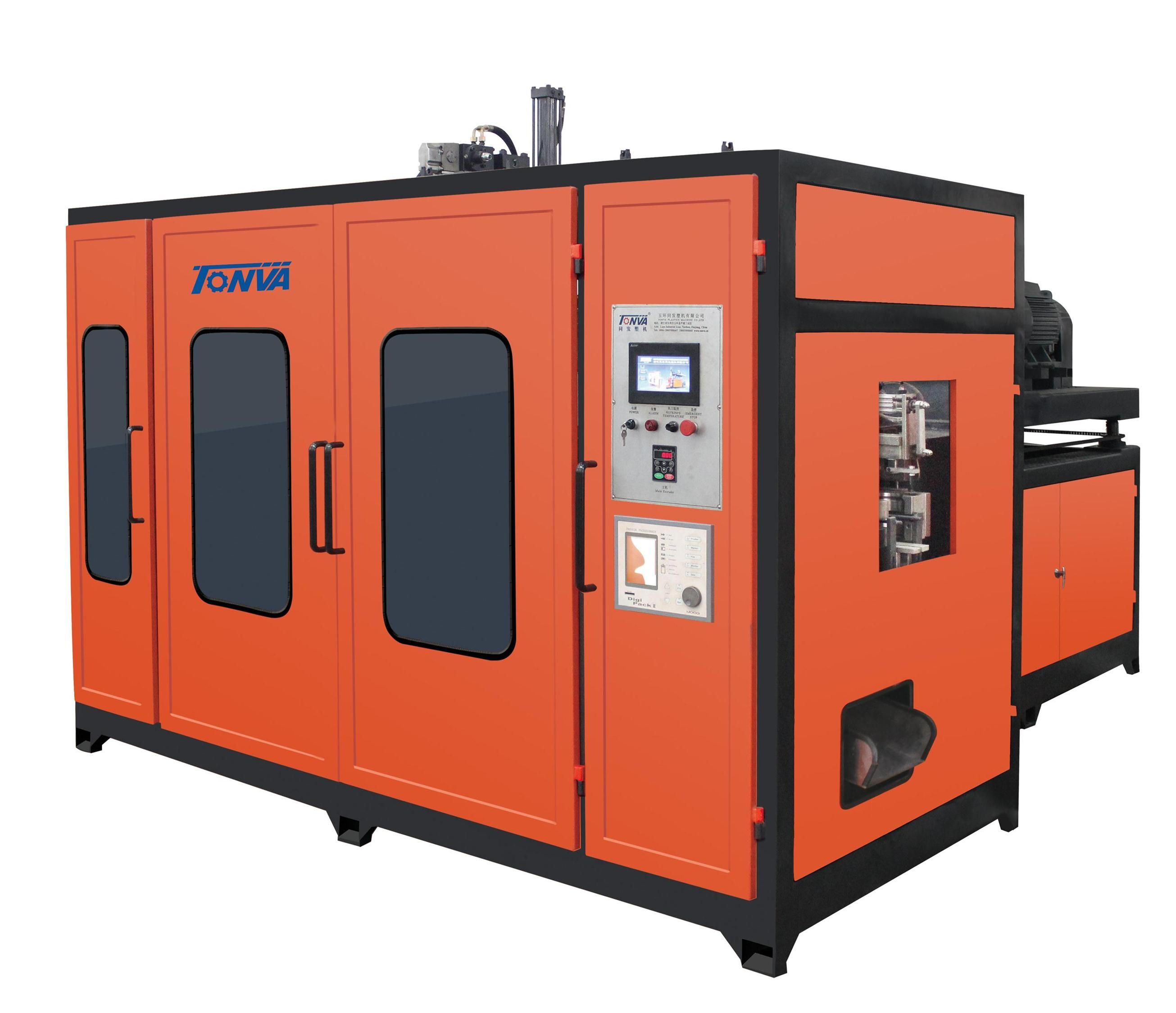

High Speed Extruder Blow Molding Machine

High Speed Extruder Blow Molding Machine
Price: US $ 47000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
HIGH SPEED SERIES TVHD-100ML-10

Specifications:
22-year manufacturer of blow molding machine
Famous brand component parts
CE; ISO;SGS
1-year warranty
Customized

Basic specification:
Ø Double Station
Ø 90mm screw / 30kw motor /11KW oil pump power
Ø HDPE etc material
Ø Automatic Trimming: Neck/Bottom/Handle/Sides

Working condition:
Ø Power supply: 380VAC/50Hz
(depending on client's country)
Ø Water Cooling: 20ºC
Ø Air source: 0.6Mpa,0.4m³/min

Technical characteristic:
ØHigh speed machine is TONVA innovative model.It adopts pure hydraulic system ,joint clamping system,running fully automatic.
Ø Suitable for bottles under 2000ml requires high output.
Ø Suitable raw material :PE/PP.
Ø Application:Food,Medicine,Chemical,cosmetic and oil etc.


Technical Parameters:

Category

Item

Unit
TVHD-100ML-10

Basic Specification

Raw material
/HDPE etc.

Product weight max.
g15

Number of head
Cavity10

Dimension
m4.3*3.5*2.1

Total Weight
kg11200

Extrusion system

Diameter of screw
mm90

Screw L/D ratio
L/D28:1

Plasticizing capacity
kg/h125

Number of heating zones
Pcs9

Extruder heating power
kW24

Extruder drive power
kW30

Die head

Number of heating zones
pcs11

Heating power
kW11

Center distance
mm60

Clamping system

Clamping range
mm150

Sliding range
mm700

Clamping force
kN80

Power Consumption

Air pressure
Mpa0.6

Air consumption
m3/min0.4

Cooling water pressure
Mpa0.3

Cooling water consumption
m3/h1

Oil pump power
kW11

Oil pump capality
ml/r59

Total Power
kW76

Average power Consumption
kW32
Main Features:
(1)Screw: Specially designed based on material's trait,high quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2.
(2) Barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2.
(3) Drive mode: inverter and hard gear surface decelerator.
(4) Temperature controlling: PID&PWM temperature control model.
(5) Mode of cooling: adopt water cooler for the processing zone, fan cooler for the rest zones.
(6) Die head system: The melting plastic out of the extrusion system is divided through the core parts of  die head, distributed by the die head channel to become several peach shaped sections.
(7) Clamping system: Joint-type clamping ,clamping by hydraulic cylinders.
(8) PLC and HMI: Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display;
(9) Extrusion motor: with the inverter controlling and alloy hard gear surface decelerator driving, saving power, lower noise, balanced and stable screw rotation.

Company information:
TONVA Plastics Machine Co.,Ltd.was established in 1993.The company is one of  the largest manufactures of Extrusion Blow Molding Machines, PET Stretch blow molding machines and kinds molds in China.The Company has a group of experienced engineers who contribute more than twenty
years in Blow Molding Machine industry and a team who good at after-sale service.

Our Service:
1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Can trainning clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7. Custimized design as requirements.

Contact Us:
Sales Manager: Andy Huang
TEL: +86 576 81716102  FAX: +86 576 81716106  MOB: 86 13566834851
Website: www.tonva.cn
Add:Bingang Industrial Zone,Shamen Town,Yuhuan County,Taizhou City,Zhejiang. P.R. China.


Prod Model: TVHD-100ML-10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 4.3*3.5*2.1m
Weight: 11.2ton
Packaging: Film or Wooden
Designe: Custom Designe
Delivery Detail: 60 Days After Receiving Deposit for Blow Molding
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Type: Extrusion Blow Molding Machine
Raw Material: PE
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: BV
Yuhuan Tonva Plastics Machine Co., Ltd. was established in 1993, and specialized in producing Blow Molding Machines\ Vacuum forming Machine and Moulds. Company has a group of experienced people who contribute more than twenty years in Blow Molding Machine industry and a team who good at after-sale service. The company has passed the ISO9001: 2008 Internationl Quality Control System and the CE ststem. Based on fabulous reputation and favorable service, our products reach great sales both in domestic markel and more than 40 countries. We produce more than 400 sets machines each year, while being highly valued and trusted by our customers.

The company focus on innovation and invest in the advanced technology year after year. Based on different functions, TONVA Blow Molding Machine can be divided into Single Station\Double Station\Four Station series; Single Die\Multiple Die Series; Single Layer\Muliple layers series; Accumulator Head\Parison Control System series. The range of the capacity is from 5ml to 3000L. They aresuitable for Various materials, such as PE\PP\PVC\PS\EVOH\EVA\PET etc. They are used to produce various kind of plastic products, such as oil barrel\Sprayer barrel\cosmetics bottle\pharmaceuticals bottle\food package\plastic toys\Christmas ball\plastic experimental apparatus and auto-parts etc.
