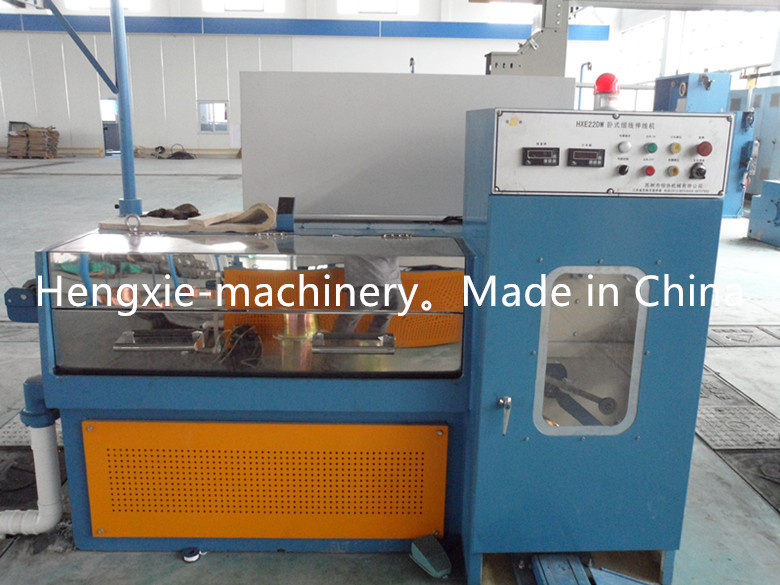

High Speed Fine Copper Wire Drawing Machine (HXE-22DW)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
HXE-22DW High speed copper wire drawing machine
Technic Detail:
Inlet size 0.6mm-1.2mm
Outlet size 0.1mm-0.7mm
High speed 2500m/min
Die numbers 22
Slip ratio of m/c 15%+8%

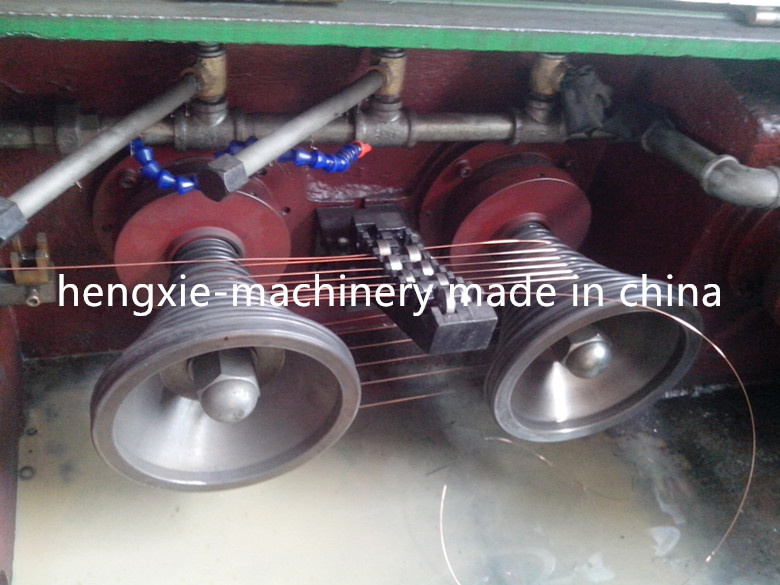

Capstan Ceramic plasma
Capstan diameter 242mm
Fix speed capstan diameter 207mm
Frame Iron cast
Main motor 15KW three phase AC motor
Spool motor 3.7KW three phase AC motor
Revise system Synchronous control spoole

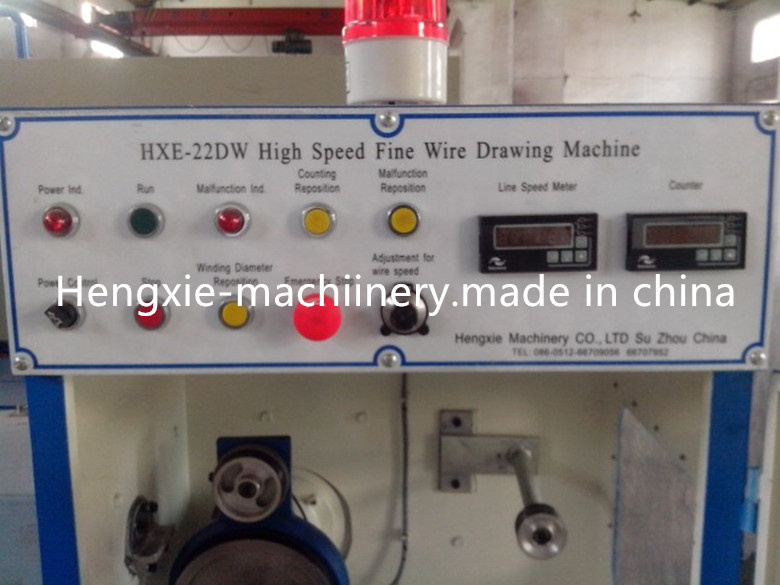

Power control Inverter control
Transmission type Flat belt
Pay-off method Over-head
Traversing unit Flat belt+synchronous motor
Tension control Weight balance by swing arm
Lubrication type spray type
Bobbin size 300mm
Spooler capacity 50-60Kg
Bobbin loading Shaft type
Power source 380V
Brake pneumatic brake
If you want to buy this machine pleas contact me i will reply as soon sa possible.
Prod Model: |
22DW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Blue / Customized |
Warranty: |
1 Year |
Popularity: |
Hot/on Sales |
Inverter Control: |
Dual Inverter Control |
Operation System: |
Button Control |
Type: |
LT Water Tank Type Metal Drawing Machine |
Usage: |
Rope Wire |
Outlet Diameter: |
0.1mm-0.7mm |
Max.Inlet Wire Dia.: |
0.6mm-1.2mm |
Max. Number Of Block: |
22 |
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
