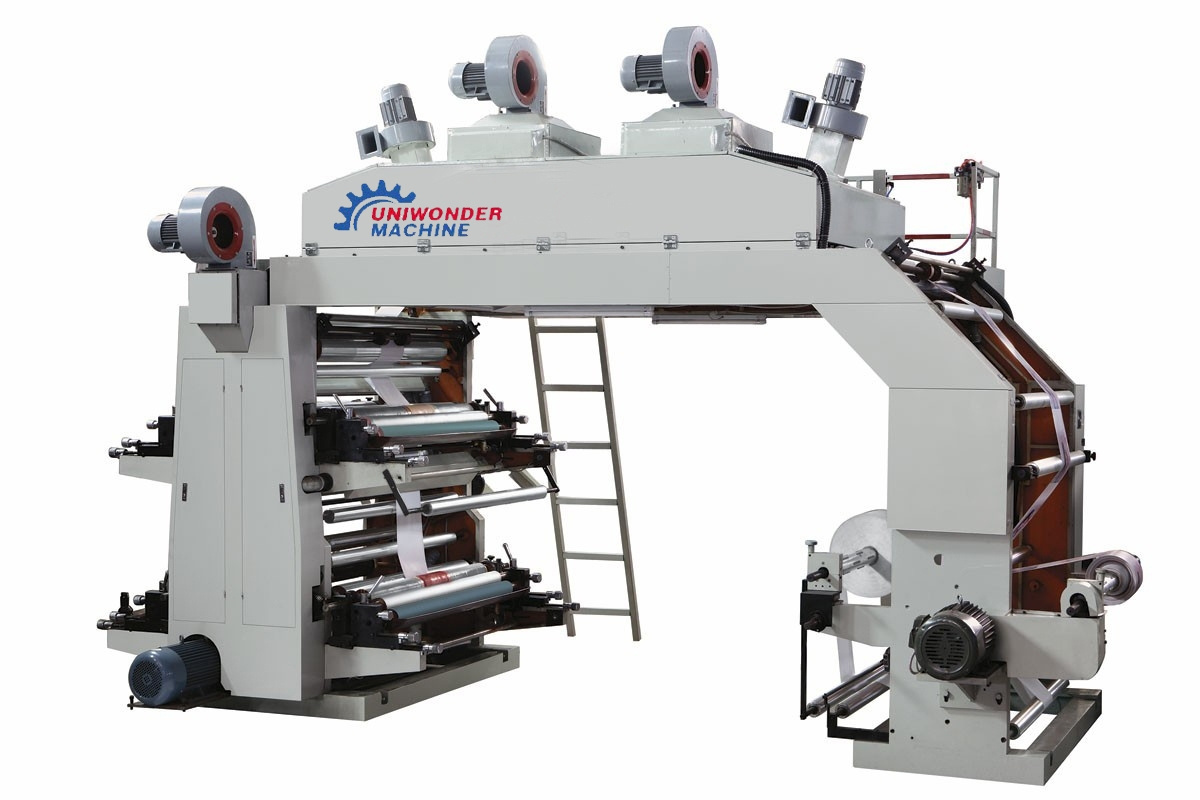

Flexible Printing Machinery
Introduction
The machine is main used for only have four color of printing or two-sided dichromatic in the meantime printing or layer version printing.
Accept to print material:
PVC 35~70μ M, OPP 20~70μ M,
BOPP 20~60μ M, PE 35~100μ M,
NY 20~50μ M, PET 20~60μ M,
CPP 20~60μ M, Paper 20~150g/
1. The operation is simple convenience, set the color be accurate, service life long
2. Adoption Taiwan motor, Japan change the Pin adjust soon, economical electricity, circulate motion small
3. Fall a version auto stop line Mo motor, version auto beginning line Mo equip
4. Provide a Mo way to pare off Mo for the gum net Lu
5. Adoption specially made mold number keep Chi wheel gear to spread to move, printing the size be accurate
6. Establish to blow breeze to have fever two suits to place, have fever adoption central constant temperature control system to combine cent set control among them, cold breeze already set equip
7. Low Gun adoption special steel material in Germany process, and through special craft processing, and electroplate 10 silks thick hard chrome protection layer
8. The aluminum metal alloy lead a round to carry on hard quality to oxidize, move balance, quiet balance processing
Accessory Machinery for Option
1. Air shafts of printing
2. Printing roller and taking it automatically by a material equipment
3. Ink viscosity controller
| Model | 804 | 806 | 1004 | 1006 | 1204 | 1206 | 1404 | 1406 |
| Max. Width of the Print Material( mm) | 750 | 750 | 950 | 950 | 1150 | 1150 | 1350 | 1350 |
| Max. Width of the film( mm) | 850 | 850 | 1050 | 1050 | 1250 | 1250 | 1450 | 1450 |
| Scope of the Print Length ( mm) | 300-900 | 300-900 | 300-900 | 300-900 | 300-900 | 300-900 | 300-900 | 300-900 |
Printing Speed
( m/min) | 60-200 | 60-200 | 60-200 | 60-200 | 60-200z | 60-200 | 60-200 | 60-200 |
| Printing possibility | 4+0 1+3 2+2 | 6+0 1+5 2+4 3+3 | 4+0 1+3 2+2 | 6+0 1+5 2+4 3+3 | 4+0 1+3 2+2 | 6+0 1+5 2+4 3+3 | 4+0 1+3 2+2 | 4+0 1+3 2+2 |
| Total Power( KW | 88 | 88 | 88 | 88 | 92 | 92 | 92 | 92 |
| Weight( kg) | 4000 | 4600 | 4700 | 5400 | 5800 | 6400 | 7300 | 7900 |
Overall Dimension (L× W× H)
(mm) | 7500× 2900× 4300 | 7500× 2900× 4600 | 7500× 3100× 4300 | 7500× 3100× 4600 | 7500× 3300 × 4300 | 7500× 3300 × 4600 | 7500× 3500 × 4300 | 7500× 3500 × 4600 |
RUIAN UNIWONDER Machinery Co., Ltd. is located in the East China Sea south of Zhejiang historic city RUIAN; Which set packing machinery, plastic machinery, printing machinery, such as scientific research and development, manufacturing, sales and after-service in one of Omni-directional and multi-purpose new technology enterprise.
RUIAN UNIWONDER Machinery Co., Ltd. is favored by domestic and oversea customers all along in the world, such as Southeast Asia, the Middle East, Africa, Europe and Asia, North and South America and Australia more than 30 countries and regions. Because of recognition of quantity, devotion of service and unremitting development of new technology, and the products are processed with high science and technical, reasonable design, advanced technology, prominent quality, credible capacity and perfect service, Which got higher reputation from our customers.
RUIAN UNIWONDER Machinery Co., Ltd. has been adhering to the "Solidarity, Progressive, Pragmatic, Innovative" spirit of "first-class enterprise, High quality products, Perfect service" as the development aim, advocates of independent innovation, respect for knowledge, attention to personnel training, relying on information technology, building high-quality, younger team, a positive potential to improve efficiency, the efforts of integration into the global market and actively participate in international competition.
Thanks a lot for your attention. In the hopeful 21 century, all of the staff from RUIAN UNIWONDER will cooperate with you with great passion and confidence and create a bright future. Wish international friends communicate with us by email or telephone. We are promise you that you will never lose. But win Chinese friendship. `
