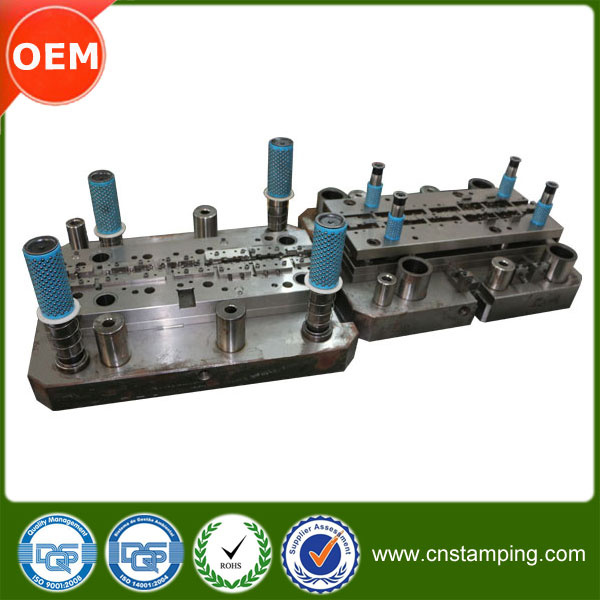

Metal Stamping Die
Die Insert Tolerence: +/-0.005mm
Stamping Speed: 1000SPM/min
Tooling Life: 50-300 million times
OEM Service
General Capabilities | Design Modeling (2-D, 3-D) | Die Location Technical Support | Inspection |
| Detail Tooling Documentation | DFMEA/PFMEA | Quick Building Prototypes |
| Die Types | Forming Dies | Precision Progressive Stamping Dies | Secondary Dies |
| High Speed Steel Dies | Precision Blanking Dies |
|
| Tooling Material | Carbide(CD650,V3,KD20) | ASP-23 | ASP-60 |
| S55C---45#55 | AL7075 | SKD11 |
| Tooling Life | 50 Million to 300 Million Times |
| Die Concept | 2-Plate Die | 3-Plate Die | Module Die |
| Production Equipment | CNC | SODICK Nice Surface EDM | P/G |
| Drill | SODICK Wire Cutting Machine | J/G |
| Milling Machine | WAIDA Profile Grinder Machine |
|
| Stamping Equipment | AIDA | PURDER | KYOL |
| MICO |
|
|
| Stamping Product | Custom Stamping | SIM Spring | Spring |
| Battery Spring | Shield Drawing | Press-Fit Terminal |
| Lead Frame | Power Terminal | PC Terminal |
| Additional Services Provided | Custom Packing | Packaging | Heat Treat |
| Plating |
|
|
| Delivery | 3-6 Week | 4-8 Week |
|
Established in 2008, Dongguan Heju Plastic Hardware Electronics Co., Ltd is the most professional OEM/ODM manufacturer of Precision terminal Stamping Parts and Stamping Molds in China, made up by a group of experts with over 10 years' experience in precision terminal stamping industry.
We are focuse on R&D of high speed stamping moulds as well as precision terminal stamping parts and we can provide all kinds of metal stamping parts applied in many fields such as Connector Terminals and Connector Shields for PC mainboard, consumer electronics, I/O Datacom etc. We have long-term cooperation with Molex, Tyco, and so on.
Over 10 Years of Experience in the R&D progressive stamping mold
Heju Industrial Corporation is engaged in manufacturing precision high speed progressive stamping mold and metal stamping parts, which are widely used in PC, TV, Automobile, Mobile phone, Consumer electronics and medical industries. We have a production base in factory, which was founded in 2008, with 15 professional engineers who have more than 10 years experience in the design and manufacture high-speed precision electronic stamping dies. Our advantage of metal stamping die are:
Die insert tolerance: +/-0.005mm.
Stamping speed: 1000SPM/min
Tooling life: 300 million times
Guaranteeing the best quality products with Certification and Advanced Equipment
With ISO 9001, ISO 14001 and ISO/TS 16949 certifications, we have specialized R&D, die designing departments, stamping facilities and the highest QC standards. During mold fabrication, normally we use following machines: SODICK water line wire cutting machine, WAIDA optical curve grinder, SODICK mirror spark machine, SEEDTEC grinder etc. With these facilities, our products have these feature:
Zero loss of material use;
Material thickness: 0.05-1.0mm
Min. Distance between two part: 0.4mm;
Dimension tolerance: +/-0.01mm;
The rate of hole diameter and thickness: 0.85: 1;
Free mold design
Our goal is to help clients improve competitiveness, all our OEM stamping die design fee are free. After reaching the agreed amount of product, there will be refunded the mold cost. Contact us today to get your order started.
