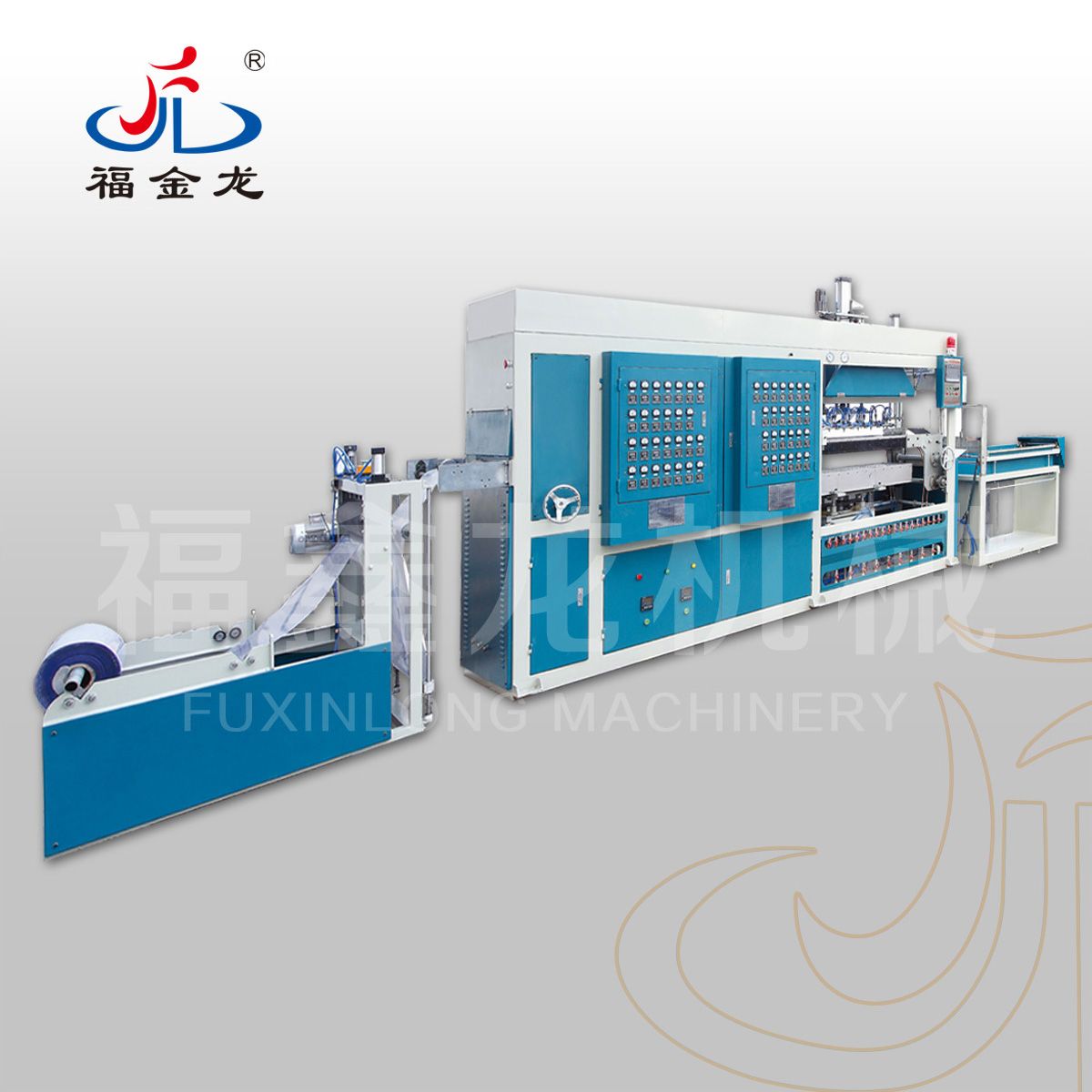

High-Speed Vacuum Forming Machining for Plastic Products
| Price: |
US $ 30000-100000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
High-Speed Vacuum Forming Machining for plastic products
Usage:
This is suitable for PVC , PS , PP sheet and etc. It can be used for making disposable fast-food containers, instant noodle bowls, western dinner plates, food coverings such as sugar boxes, cake boxes and etc, children's toys etc.
Features:
1. This machine adopts advanced PLC controlling system; it can automatically finish a series of tasks including feeding, heating, thermoforming, cooling, drawing off patterns, cutting and stacking.
2. Equipped with a unique divided temperature control system and a precision remote infrared ceramic heater, this machine can get the most stable and even temperature, and at the same time achieve electricity saving.

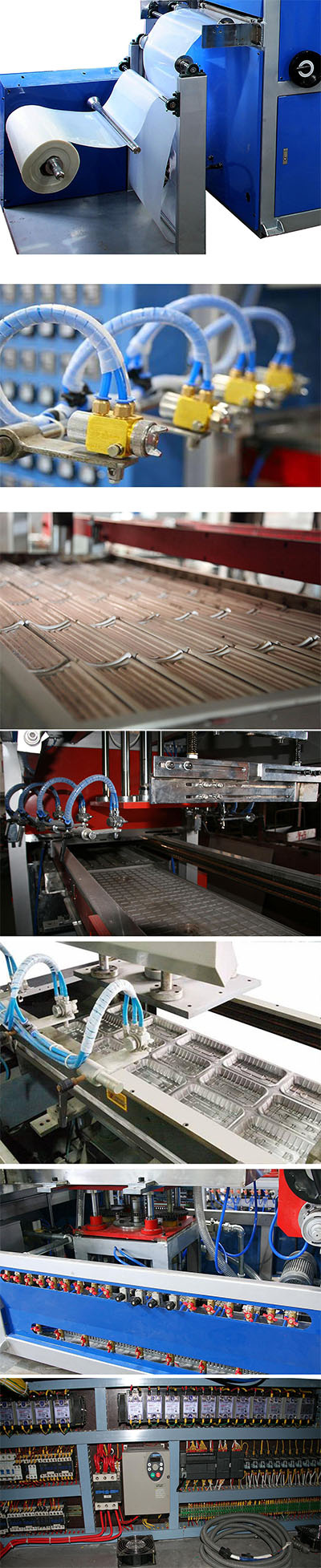

3. The major electronic devices and pneumatic components are manufactured abroad, which can ensure the stability, safety and durability of this machine.Machine parts
Products samples
| Configuration List | Model: FJL-700/1200 ZK-B |
| Vacuum Pump: Berker, Germany Volume: 100 cubic meter/h |
| Solenoid Valve: SMC, Japan |
| Mini Relay: OMRON,Japan Other Electrical Parts:Huanan, CHNT. |
| PLC: Siemens, Germany Touch Screen: Viewer, TAIWAN |
| Cylinder: φ80 mm/φ120 mm (ZHICHENG), Sino-Italy Joint Venture |
| Infrared Ceramic Heater: 101 pcs*650W |
| Thermo Controller: Huibang, China |
| Sprayer: Baoli, Taiwan |
| Transducer: Schneider |
| Coder: OMRON, Japan |
| Motor: 2.2 KW, Chenggang,Taiwan |
| Mechanical Details | Forming Width:480mm-700mm
Forming Length: 700mm-1220mm
Required Sheet Width:510mm-740mm |
| Required Thickness of sheet: 0.1-1.2 mm |
| Material: PP, HIPS, PVC, PET |
| Max. Depth of Draw: 180mm(Positive); 130mm(Negative) |
| Forming Speed:180-600 cycles/h |
| Mode of cutting arrangement: off-mould |
| Main Supply Voltage:380v/50HZ Tri-phase, four-wire |
| Power Consumption::35KW(Approx.) |
| Machine Dimension(L*W*H):7800-1400-2415mm |
| Machine Weight:3200kg |
| Briefly Introduction | The facultative adjustment sheet width between 510-740 mm. |
| Motor to feeding sheet, the error less than 3mm, length of sheet can adjusted expediently on man-machine touch screen. |
| Tremor to eject from mould, the frequency adjustable between 0-20 times. Adjustable swing, ejecting from mould by inverted blowing to make the good quality of products. |
| Assemble with the mould plate. Can be chose by customer's request. |
| PLC control system control whole process. Twice vacuum, twice up mould. |
| To avoid over-temperature when feeding for the first time. It is effectively to reduce waste by manual sheeting seeding in advance. |
| Pressurized by alloy slice around oven heater, less caloric losing, saving 60% electric power. |
| The guide pillar by horniness treat with compound bearing reduces the pollution of the packaging products and keeps the equipment clean and tidy as it is no need to fill the oil. |
| Prod Model: |
FJL-700/1200ZK-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forming Area:700*1200mm: |
Cutting Mode:off Mould |
| Automation: |
Automatic |
| Raw Material: |
PP |
| Shaping Mode: |
On Molding |
| Application: |
Medical |
| Driven Type: |
Hydraulic |
| Computerized: |
Computerized |
| Certification: |
CE |
