Specifications
Wire drawing machine
For high & low carbon steel wire
AC frequency-variation motor
PLC logical control
High efficiency.
Transportation system:
Two grade belt transmission, double enveloping worm wheels, gearbox with hard tooth sureface.
Way of speed adjusting:
AC Frequency conversion speed adjusting or DC speed adjusting.
Way of control:
Spooler pay-off, high pay-off frame, type pay-off, duck-nip pay-off, can pay-off without stop work.
Way of take-up:
Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work.
Way of pay-off:
Spooler pay-off, high pay-off frame, type pay-off, duck-nip pay-off, can pay-off without stop work.
Main function:
Slowdown to stop at fixed length automatically, wire broken test and stop work automatically, cut off any block to compose new technical process freely, slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information.
Material that can be drawn:
Steel wire (High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire, rubber tube wire, spring steel wire, cord wire and so on).
Welding wire (Air protecting welding wire, submerged arc welding wire, flux cored wire and so on).
Electric wire and cable (Aluminum-clad steel wire, copper wire, aluminum wire and so on).
Alloy wire and other kinds of metal wire.
After-sell Service:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in wire rope area, welding wire area, alloy wire area, rubber frame material area and pre-stressed steel wire area.

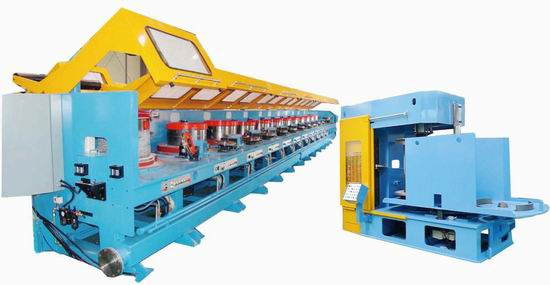

Straight wire drawing machine
Technical parameter:
|
Items |
Unit |
LZ9-12/1200 |
LZ10/800 |
LZ9/700 |
LZ10/560 |
LZ10/400 |
|
Reel diameter |
mm |
900 |
800 |
700 |
560 |
400 |
|
Draw passage |
time |
9-12 |
10 |
9 |
10 |
10 |
|
Incoming dia |
mm |
Φ14-8 |
Φ10-8 |
Φ8-6.5 |
Φ6.5-5.5 |
Φ14-8 |
|
Outgoing dia |
mm |
Φ5-3 |
Φ4-3 |
Φ3-2.5 |
Φ2-1.8 |
Φ1-0.8 |
|
Wire darwing line |
m/min |
300 |
360 |
480 |
720 |
840 |
|
Incoming strength |
Mpa |
≤1300 |
≤1300 |
≤1300 |
≤1300 |
≤1300 |
|
Total compressibility |
% |
87.24-85.94 |
84-85.94 |
85.94-85.21 |
90.53-89.29 |
87.24-84 |
|
Average compressibility |
% |
20.48-19.58 |
18.42-19.58 |
19.58-19.13 |
21.00-20.02 |
18.61-16.74 |
|
Single motor power |
Kw |
110-90 |
90-55 |
75-55 |
37-22 |
15-7.5
|
