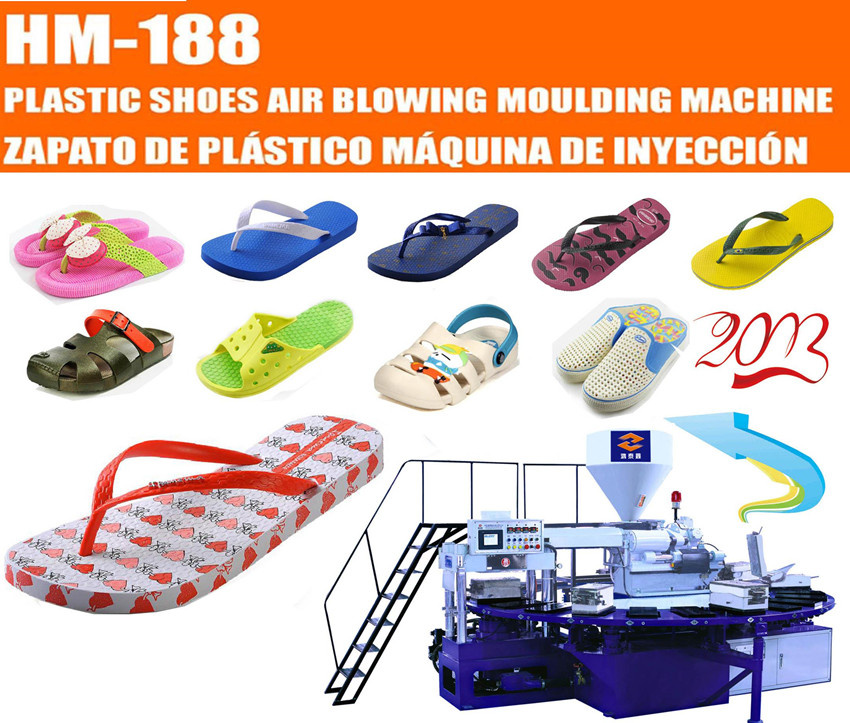

PVC Slipper Air Blowing Injection Moulding Machine
Features
1.This machine is used in plastic footwear making industry only.
It can produce all kinds of shoes,sandals,slippers,soles in plastic PVC TPR.
2.Taiwan Made PLC program control,Servo system made in Japan.
Operation system can be showed in Chinese,English,Russian,Spanish,Arabia.
3.Machine working is automatic,only need one worker in the production.
4.Machine have automatic alarm system,touch screen will show you the problem.
and you can find the solution in our operation manual easily.
Sample produced by our machine
Our Service
1.We will install the machine for you in your factory.
We will teach you how to produce the products with machine,mold and material.
including the machine operation,mold design suggesions and raw material formula.
We supply 24 hours mobile and skype video call service and solve the problem on time.
We supply the longest guarantee period in this industry,1 year and 3 month.
We also can share our successful experience in market promotion.
Packaging and shipping
Export standard package.We also can pack it according to customer's requirements.
and one set single color machine can load in a 20feet container.
one set double color machine can load in a 40feet container.
Exhibition
|
Machine model |
HM-188 |
|
Mould-clamping Unit |
|
Work station |
|
24 |
|
Clamping force |
TON |
80 |
|
Opening stroke |
MM |
210 |
|
Mould dimension |
MM |
600*280 |
|
Height of injection nozzle |
MM |
280 |
|
Injection Unit |
|
Injector |
SET |
1 |
|
Screw diameter |
MM |
65 |
|
Screw L/D ratio |
L/D |
20 |
|
Max.injection volume |
CC |
650 |
|
Injection pressure |
Kg/cm² |
800 |
|
Injection speed |
Cm/s |
10 |
|
Screw rotation speed |
R.P.M |
0-200 |
|
Electricity Consumption |
|
Heating power of injector |
KW |
7 |
|
Hydraulic unit motor |
KW |
18.5 |
|
Total electric consumption |
KW |
25.5 |
|
Temperature control |
Section |
4 |
|
Dimension and Weight |
|
Machine dimension |
(L*W*H)MM |
4600*3600*2300 |
|
Machine weight |
KGS |
6000 |
Dongguan Hongtaixin Machinery Equipment Co., Ltd. is a premier manufacturer of shoes machines and related equipment in China. Our factory is located in Dongguan, China which is called "World factory" and "Shoe Capital of Asia". We specialize in single color, double-color, three-color and four-color rotary plastic shoes injection molding machines, PVC air blowing moulding machines, multi-function TPU/TR extrusion moulding machines, EVA injection moulding machines, shoelaces injection moulding machines, rubber shoes moulding machines and others.
We have exported our products to Africa, Southeast Asia, South Asia and South America. We believe that our success depends on your satisfaction with our products. We always adhere to the principle of "quality first, customer supreme" and provide pre and after-sales services for our customers. Our team of experienced engineers strives to continuously improve our technology from hardware design to machine components to make them the most durable and reliable in the marketplace. Our shoes machines are thoroughly tested, both in the design and throughout the entire production process.
