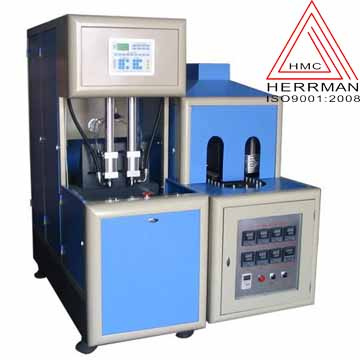

HM--B-I semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10 to 2000m
One, Specification
(1)HM--B-I semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10 to 2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
(2)Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
(3)The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
(4)The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
(5)The machine can be operated in the step by step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.
|
Max.volume of moulded product |
2000ml |
|
Max.product capacity |
1000-1200PCS/H |
|
Max.Heating power |
14kw |
|
Pressure of air supply |
2.5mpa |
|
Max.mould dimension |
20*35* 38cm |
|
Max.shifting mould dimension |
17cm |
|
Center distance between two bottles |
min 9cm max 20cm |
|
Max.stretched length |
35cm |
|
Weight |
650kg |
|
Main machinine Size |
160*60* 161cm |
|
Oven |
187*63* 145cm |
