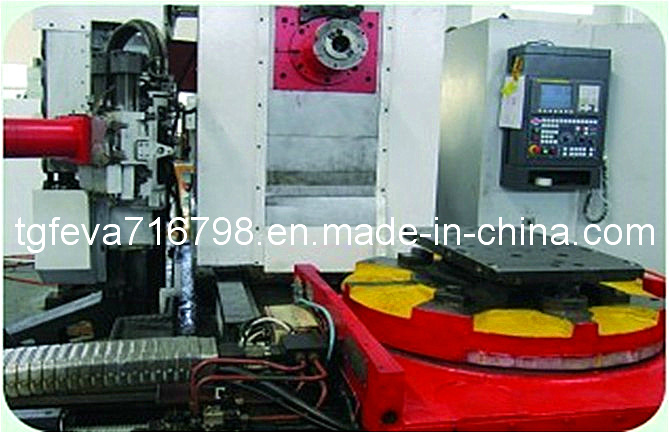

Product structure;
1, The cost-effective HMC - 40/60 series of plastic sliding guide rail structure, which has big span, high rigidity, good stability, affordable.
2, the high precision series HMC-50S/60S/80S with high precision ball bearing type linear rolling guide, T shape machine tool, high speed and high efficient.
3, HMC60M/50M processing center with rectangular table, horizontal numerical control machine tool, particularly suits to long pole, high workpiece and mold parts processing.
Prominent feature;
1, The configuration of machine tool is diverse, there are both high speed type and large rectangular, big torque model using wide spindle motor or slow down design, meet the demand of low-speed heavy cutting and high speed finish machining.
2, A unique program design to shorten tool exchange time.
3, perfect testing and interlock function, rich experience in design of PLC, ensure the safety and reliable of the whole machine.
4, Interface with PLC and modularization software to increase the functional components and software upgrade at any time.
5, Precision assembly, strict testing, The accuracy of machine tool numerical control accord with the standard German VD.
The machine tool has good dynamic performance, exact movement, accuracy control, stable machining precision and fine stability by repeated tests; The parts could automatically completed in a clamping to finish milling, drilling, expanding, boring, reaming, tapping and other manufacturing procedure; It is easy to use, operate and maintain, especially suitable for parts batch processing, which is the preferred equipment for auto, motorcycle parts, military industry, valves, machinery, textile, printing packaging, mold manufacturing and vocational education and training.
Model |
Units |
HMC-40/50M |
HMC-60/60M |
HMC-50S |
HMC-63S |
HMC-80S |
Working-bench |
Size |
mm |
400*400 / 500*1100 |
600*600 / 600*1300 |
500*500 |
630*630 |
800*800 |
T-groove (number of slots-slot width*slot pitch) |
mm |
5-14*80 / 5-18*150 |
6-14*80 / 5-18*120 |
5-18*100 |
5-22*125 |
5-22*160 |
Max loading |
kg |
400/750 |
600/1000 |
500 |
800 |
1200 |
Indexing table |
|
5°* 72 equal divisions |
1°* 360 equal divisions |
1° * 360 equal divisions (Options: BRT 0.001°) |
Travel |
Travel of X spindle |
mm |
680/800 |
800/1020 |
700 |
1000 |
1300 |
Travel of Y spindle |
mm |
550 |
620/660 |
590 |
740 |
900 |
Travel of Z spindle |
mm |
500 |
590 |
580 |
800 |
900 |
Distance between main spindle nose and worktable |
mm |
50-600 / 240-790 |
110-730 / 260-920 |
120-710 |
60-800 |
180-1080 |
Distance from main spindle axis to vertical guideway |
mm |
150-650 |
165-755 |
200-780 |
150-950 |
100-1000 |
Travelling rate |
Rapid travelling speed of X spindle |
m/min |
24 |
20 |
30 |
24 |
24 |
Rapid travelling speed of Y spindle |
m/min |
20 |
18 |
30 |
24 |
24 |
Rapid travelling speed of Z spindle |
m/min |
24 |
20 |
30 |
24 |
24 |
Cutting feed rate |
m/min |
0.005-6 |
0.005-6 |
0.005-6 |
0.005-6 |
0.005-6 |
Main spindle |
Power of spindle driving motor (rating/intermittent) |
kw |
7.5/9 |
9/11 wide-range |
9/11 wide-range |
11/15 wide-range |
15/18.5 wide-range |
Max. output torque at main spindle (rating/intermittent) |
Nm |
60/115 |
86/140 |
115/210 |
143/286 |
263/442 |
Range of main spindle speeds |
r/min |
45-6000 |
45-6000 |
25-6000 |
45-6000 |
45-6000 |
Serial number of taper hole of spindle |
No. |
ISO No. 40 or 50 / BT 40 or BT 50 |
ISO No. 50 / BT 50 |
ISO No. 40 or 50 / BT 40 or BT 50 |
ISO No. 50/ BT 50 |
Tool magazine |
Tool magazine capacity / time of tool change (tool to tool) |
knifes/sec |
24 / 3s |
30 / 6s |
24 / 3s |
24 or 30 / 6s |
40 / 6s |
32 / 3s Chain |
40 / 6s Chain |
60 / 6s |
Precision |
Positioning accuracy (VDI standard) |
mm |
0.016 |
0.016 |
0.012 |
0.016 |
0.020 |
Repeated positioning accuracy (VDI standard) |
mm |
0.010 |
0.010 |
0.008 |
0.010 |
0.012 |
Positioning accuracy of revolving stage / repeated positioning accuracy |
|
10/5 (HMC-50M and HMC-60M have no the specification) |
10/5 (HMC-50M and HMC-60M have no the specification) |
10/5 (HMC-50M and HMC-60M have no the specification) |
10/5 (HMC-50M and HMC-60M have no the specification) |
10/5 (HMC-50M and HMC-60M have no the specification) |
Numerical control system |
|
|
FANUC Oi-Mate-MD (Options: Siemens 828 FANUC Oi mate-MD etc.) |
FANUC Oi-Mate-MD (Options: Siemens 828 FANUC Oi mate-MD etc.) |
FANUC Oi-Mate-MD (Options: Siemens 828 FANUC Oi mate-MD etc.) |
FANUC Oi-Mate-MD (Options: Siemens 828 FANUC Oi mate-MD etc.) |
FANUC Oi-Mate-MD (Options: Siemens 828 FANUC Oi mate-MD etc.) |
Bleed pressure |
|
mpa. |
0.5-0.7 (flow rate: 500L/min) |
0.5-0.7 (flow rate: 500L/min) |
0.5-0.7 (flow rate: 500L/min) |
0.5-0.7 (flow rate: 500L/min) |
0.5-0.7 (flow rate: 500L/min) |
Power requirement |
|
|
|
|
|
|
|
Weight |
|
kg |
7000 |
9000 |
12000 |
15000 |
18000 |
Dimension |
|
mm |
|
|
|
|
|
