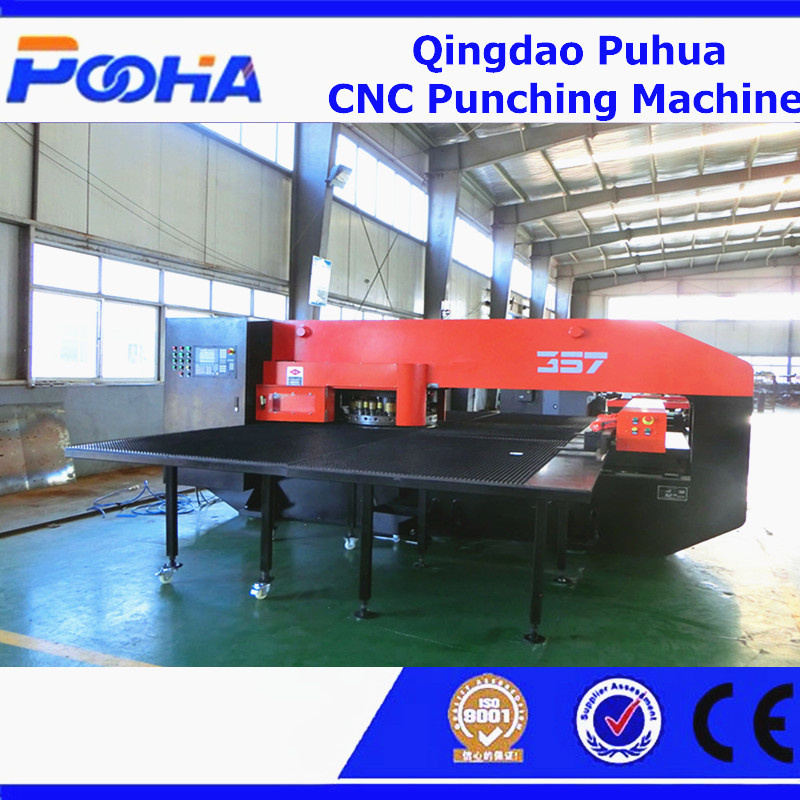

AMD-357 CNC Turret Punch , Punching Machine Product Description1.Adopts Siemens 3 / 4 axis CNC special system and match up digital AC servo motor to make it fast and reliable; 2.Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3.High level of the digital hydraulic main transmission system, speed is faster, and the stroke can be adjustable;
4.With the second positioning function, can achieve without dead zone processing;
5.The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
6.Main pneumatic components, electric components, hydraulic components and transmission components adopt international well-known brand product, which makes the punch work perfectly;
7.Equipped with concentrated lubricating device, reduce each motion vice friction, improve service life.
Specification | Unit | AMD-357 |
Transmission mode | / | Mechnical |
Punch Force | KN | 300 (30T) |
Power Rating | KW | 20 |
Max. Processing Size | mm | 2500*1250 |
Max. sheet Thickness | mm | ≤ |
Max. Punch Diameter | mm | Φ88.9 |
Max. Traversing Speed | m/min | 40 |
Max. Punch Hit | hpm | 600 |
Hole Accuracy | mm | ±0.1 |
Number of stations in turret | No. | 16/24/32 |
Turret Speed | rpm | 30 |
Controlled Axis | No. | 3/4 |
Rotating location | No. | 2 |
Air Pressure | mpa | ≥0.8 |
Outline Dimension | mm | 4490*5300*2110 |
Machine weight | T | 11 |
Company Information
Qingdao Puhua Group was founded in 2007. Subsidiary company inclueded Qingdao Puhua Heavy Industrial Machinery Co.,Ltd and Qingdap AMADA Numerical Control Machinery Co.,Ltd. We focus on designing, researching and developing, manufacturing and selling shot blasting machine, CNC turret punching machine, shot blasting machine, moulding equipment, and environmentally-friendly dedusting equipment.
We have more than 60 self-developed designs and molds for your choose. With our rich experience and considerate services, we have been recognized as a reliable supplier for many international buyers.
Advantage:
1,The activity of designing strive for the maximum cost performance.
2, According to the requirement of users, design & develop personalization product & service.
3, According to the requirement of users, develop the best solution, minimize the cost of users.
4, 24 hours efficient, confederate after sale commitments in the country.
1 | 10 years professional production experience in machinery industry. |
2 | 22,000 m^2 production workshop, strong production capacity. |
3 | Professional senior engineer develop the best solution. |
4 | Strict quality control system, CE, ISO9001 certificate available. |
5 | Main components adopt imported international famous brand. |
6 | Timely delivery, one hour to Qingdao port. |
7 | Professional after-sale service, Email will be get back in 24 hours. |
After-sele service:
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from B/L date.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as Egypt, Qatar, UAE, India, Venezuela, Algeria, Sudan, Paraguay, Costa Rica, etc.
Shipping terms | FOB Qingdao |
Package | Standard container with stretch film. |
Payment | T/T, L/C. 30% deposit, 70% balance before delivery |
Delivery time : | 20-35 workday |
8 | We are China Leading CNC Turret Punching Machine Manufacturer. |
9 | Alibaba Assessed 5 years Gold Supplier. |
10 | Inspected by the Inspection Institution of Bureau Veritas Certification. |
11 | 100% QC inspection Before Shipment. |
12 | Best Quality & Best Service with Competitive price. |
FAQ:Settlement Currency: USD, RMB, EUR.
Trade mode: FOB, CIP, CFR, CIF, DDU, DDP.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
Please kindly give us your details requirements as follows, our engineers will recommend you best suitable machine.
1: What's the material of your plate, length*width*thickness of your plate;
2: What's the shape and diameter of your holes;
3.What's ythe motor power in your countries.
