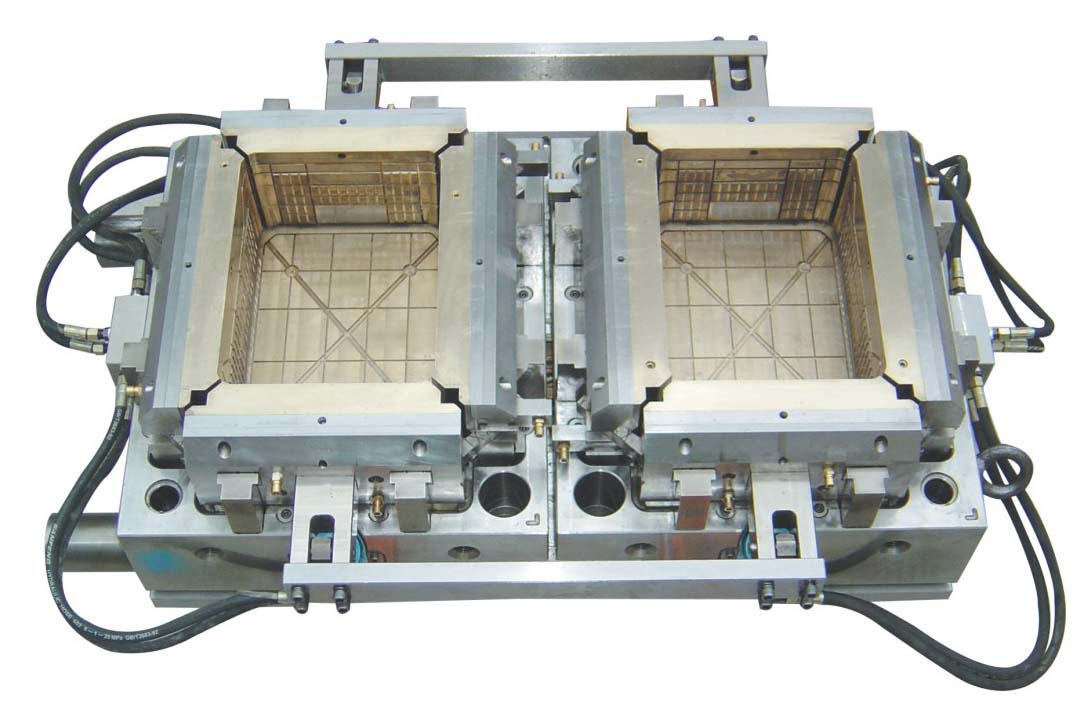

1. Construction: 2/3 PLATE w/ hot runner, or Prototype
2. Tunnel gate (sub, center, edge, pinpoint, fan, direct, tap, banana, diaphragm),
3. Mold base: LKM S50C (1730, 718, P20, 2344, stainess steel...Etc), CAV. & Core: SKD61(Nak80, SKD136, P20, H13...Etc. ),
4. Finish: High polish (SPI#. ., texture, fine machined, Edm...Etc),
5. Side action: Hydraulic cylinder r(slides, dog-leg, cam, angle pin, collapsible core...),
6. Ejection: Lifer ( pin, sleeves, blades, stripper bar, air robot, ...Etc),
7. Special features: Guided ejection, spring loaded ejection, spring loaded plate return, slide locks, parting line locks, Float a plate, cycle counter, insulate plate,
8. Standard: DME standard, non DME components. (hasco standard)
9. FAI Report.
10. Pakage: Iron box
11. FOB Hong Kong
We specializes in designing, developing and manufacturing a wide range precise plastics and rubber moulds. Our mould products widely used for science and technology, automobiles, home electrical appliances and toys industry. Our strong designing capability in advanced software of CAD/CAM/CAE provides customer with the service from product conceptual design, structure design to a total solution of prototype moulds. We have accumulated rich experience in designing and producing hot runners, air-auxiliary molds, and super-hard molds.
