Die locking force (KN): 1400
Size of moving platen(mm): 650X650
Diemeter of tie bar (mm): 80
Inner space between the bars(HV) (mm): 420X420
Die thickness(min-max) (mm): 250-500
Die stroke (mm): 350
Ejection stroke (mm): 80
Ejection orce (KN): 100
Injection force (min-max) (KN): 102-200
Diameter of shot shot sleeve (mm): 40, 50, 60
Eceentric position of shot sleeve (mm): 0-120
Dosage of fluid metal per shot(AL) (kg): 1.6
Projecting area of casting(min-max) (cm2): 108-409
Injecting pressure(min-max) (Mpa): 33-125
Injecting stroke (mm): 33-125
Injecting speed (m/s): 6
Pressure build up time (ms) <30
Dry cycle (sec): 7
Pipe line pressure (Mpa): 12
Motor power (Kw): 11
Machine weight (Kg): 5000
Overall dimensions: 4750X1150X1800
(LXWXH) (mm)
Electric Power (KW): 15
Working voltage(ACV): 380(50Hz).

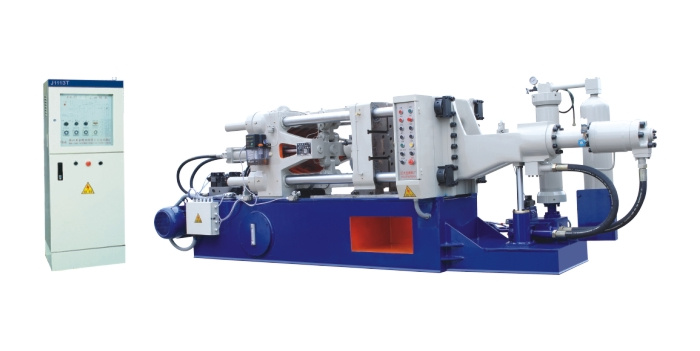

Taizhou Juda Die Casting Machine Co., Ltd. is one of factory for manufacture cold chamber die casting machine professioal in China. And juda company are localed in luqiao taizhou city.
My company have excellent equipment and technology for manufacture the die casting machine and my company can main offer to different items of die casting machine and the tone is low than 500t. And production capbility is more than 200 PCS for one year. As the quality of my China is very excellent and key part of machine are purchase from world top brand and supplier. And my company are have the machine items as follow j1113h\j1113t\j1116g\jdc180\jdc2800 and so on. And also have aluminium, brass, zine, mg metal die casting parts for car, motor car, water pump, cusomer equipment, health care Industrty.
And the sales net of my company have domestic markets and foreign markets and in domestic market there are in Shanghai, jiang su province, wenzhou city, taizhou city, ningbo city have well markets response, and for export markets there are sell to south east Asia, India, Egypt Markets. And we have power competived in these markets areas.
Meanwhile my company also engaged in all kinds of aluminum parts developing, die casting and machining for more than 10 years, if you are in demand of all kinds of accessory in aluminum, pls. Feel free to send to us drawing, we will offer you a best price ASAP., and any OEM is preferred. Looking forward to working together with you soon.
My company issue quality is company root, and will develop much more technology machine for all the world cusomer. World requirmetn is juda's duty!
