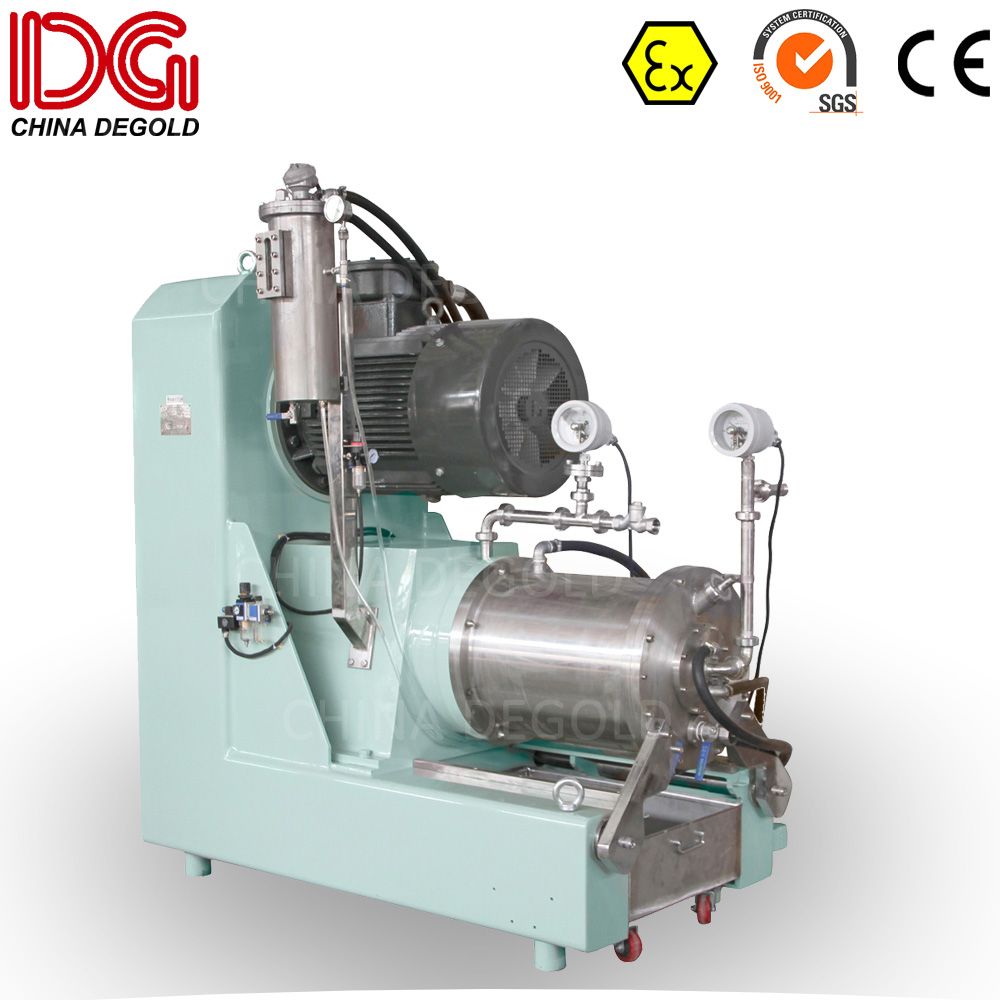

Horizontal Pearl Mill-Sand Mill-Bead Mill

Horizontal Pearl Mill-Sand Mill-Bead Mill
Price: US $ 1000-100000set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,Paypal,Western Union

DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size. We produce following five series.



"Series ZM" horizontal bead mills:grinding discs type bead mills
"Series ZM-X" horizontal bead mills:
"Series ZM-E" horizontal bead mills:
"Series ZM-K" horizontal bead mills: pin type bead mills
"Series ZM-T" horizontal bead mills:turbo type bead mills

 Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.



Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.

Applications:

Technical Data:

ZM Series:

 ZM0.3ZM1.4ZM5ZM15ZM20ZM30ZM50
Effective grinding chamber volume (L)0.31.4515203050
Main motor power (kW)0.752.27.51518.52230
Grinding shaft rotary speed (r/min)0~15000~28001650120012001120900
Adjustable range of materials flow (L/min) 0~10~20~20~100~100~60
Max. cooling water consumption (t/h) 0.511222.5
Estimated productivity (kg/h) 2~2012~12030~30040~40050~600100~1000
Dimension (mm)L64065012501560160018602100
W4105709001050105011001150
H48588512501550155015501650
Net weight (kg)5050070080098011001300
Note: Technical data are different if there are some customized constructions.



ZM-X Series:

Model

ZM5-XZM15-XZM20-XZM30-XZM50-XZM100-XZM200-X

Effective grinding chamber volume (L)

515203050100200
Main motor power (kW)1118.5223037/4545/5555/75
Grinding shaft rotary speed (r/min)1650120012001120900700550
Adjustable range of materials flow (L/min)0~20~20~100~100~600~600~150
Max. cooling water consumption (t/h)11222.52.53~4
Estimated productivity (kg/h)15~15040~40050~50060~800150~1500150~1500200~2000
Dimension (mm)

Length1250156016701760197021752150
Width900105010501050115012001200
Height1250155015651585165018802150
Net weight (kg)70080010001150135020002500
Note: Technical data are different if there are some customized constructions.



 ZM-E Series:

Type

ZM20-E

ZM50-E

ZM100-E

ZM200-E

ZM300-E

ZM500-E

ZM1000-E

Grinding chamber volume (l)

20

50

100

200

300

500

1000

Batch size (l)

100-500

200-1000

500-2500

1000-10000

>2000





Drive (kW)

18.5/22

37/45

55/75

75/90

90/110

160/200

315

Grinding shaft rotary speed (r/min)

1200

800

650

500

460

350

340

Length (mm)

1670

197027502950345033506650

Width (mm)

1050

115012001200130015001450

Height (mm)

1565

200022002200225027002850

Net weight (kg)

750

1500350037004700800012000

Note: Technical data are different if there are some customized constructions.


ZM-K Series:

TypeZM10-KZM25-KZM60-KZM150-K
Grinding chamber volume (l)102560150
Batch size (l)5002000>2000>4000
Drive (kW)18.5-2237-4575-90160-250
Length (mm)1670205025003000
Extended length (mm)2100270032804100
Width (mm)900100011951220
Height (mm)1500160019002500
Weight (kg)1250225036006700
Note: Technical data are different if there are some customized constructions.



ZM-T Series:

TypeZM8-TZM18-TZM25-TZM60-T
Grinding chamber volume (l)8182560
Batch size (l)100-1500300-2500400-3000500-6000
Drive (kW)18.5-2237-4545-5575-90
Length (mm)1400180019002300
Width (mm)800105010501250
Height (mm)1700190019002150
Weight (kg)900180020003600
Note: Technical data are different if there are some customized constructions.

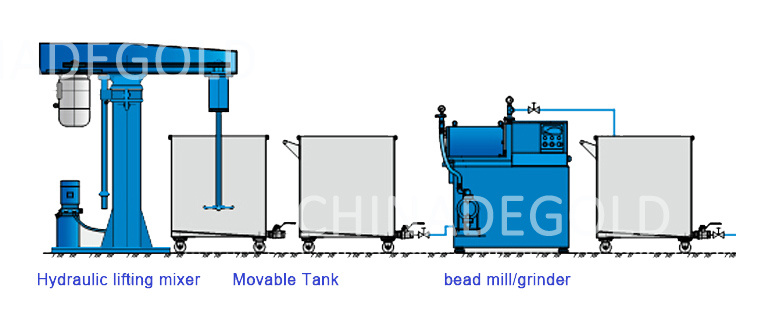

Production Line:
Exhibition:
Prod Model: ZM, ZM-X, ZM-E, ZM-K
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mill Type: Wet Grinding Mill
Application: Paint, Coating, Ink, Pigment, Non-Metal, Agrochemi
Function: Wet Grinding for Particle Size Reduce
Bead Mill Type: Disc Type, Turbo Type, Pin Type
Seal Type: Mechanical Seal
Ex Proof Type: Ex Proof and Non Ex Proof
Cooling Water Jacket: Yes
Suitable Grinding Medium: Zirconium/Zirconia/Zircon Beads
Warranty: 12 Months
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Since its establishment in 1995, Chongqing Degold Machine Co., Ltd. Has always endeavored to develop grinding and mixing technique in chemical industry. Now we have developed various models Horizontal Bead Mills and Dispersers to fulfill industrial production needs ranging from paints, inks, pharmaceuticals, food, dyes, cosmetics, petrochemicals, and non-mental mines.

All Degold technical experts have been in this field since 80s in the 20th century. We produce strictly as the requirements of ISO9001: 2008 Quality System and CE standards. Degold designs, develops, constructs, and installs production lines and advises, trains customers.

Machines are popular in domestic and oversea market. We have cooperated with so many famous painting and powder coating manufactures such as Akzo Nobel, 3M, Clariant, and Sherwin-Williams Co., Ltd. etc.

From 2007, we have begun to service oversea customers directly. Our machines have been exported to many countries and regions such as Australia, Argentina, Belgium, Brazil, Colombia, Chile, Indonesia, India, Iran, Malaysia, New Zealand, Peru, Paraguay, Pakistan, Poland, Singapore, South Africa, Spain, Tunisia, Thailand, Uruguay, Vietnam etc.
