50 litres horizontal bead mill-Model (ZM50 Series)

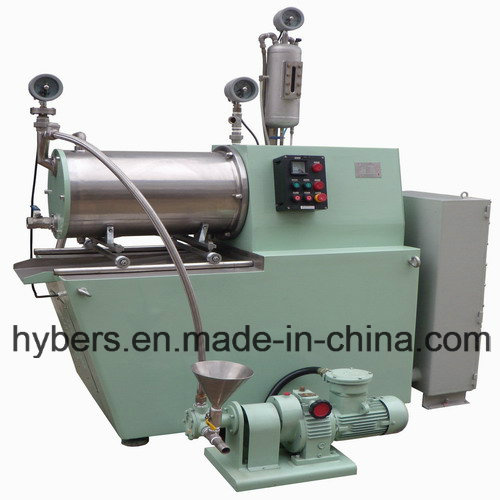

We produce 50L horizontal sand mills with different materials and constructions to meet with the different grinding requirements. Above photos are all 50 liters, but they are different.
For example, "ZM50D1210" specification.
1) 50L
2) Single mechanical seal
3) Non Ex proof
4) SS304 inner grinding chamber and hard steel grinding discs
5) Double diaphragm fluid transfer pump
6) Without AC drive
7) Dynamic gap separator
8) Chilling water jacketFor example, "ZM50S3311-X" specification.
1) 50L
2) Double mechanical seal
3) Non Ex proof
4) Mold steel inner grinding chamber and mold steel grinding discs
5) Double diaphragm fluid transfer pump
6) With AC drive to controls the grinding shaft rotary speeds.
7) Dynamic gap separator
8) Chilling water jacketFor example, "ZM50SB4410-E" specification.
1) 50L
2) Double mechanical seal
3) Ex proof
4) Tungsten carbide inner grinding chamber and mold steel grinding discs
5) Double diaphragm fluid transfer pump
6) Without AC drive
7) Static gap separator, suitable for 0.1-0.2mm beads.
8) Chilling water jacket
Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.
Please contact with us to get the model which is best for your production.
Model |
ZM1.4-D/ZM1.4-S/ZM1.4DB/ZM1.4- |
ZM5-D/ZM5-S/ZM5-DB/ZM5-SB |
ZM15--D/ZM15-S/ZM15-DB/ZM15-SB |
ZM20-D/ZM20-S/ZM20-DB/ZM20-SB |
ZM30-D/ZM30-S/ZM30-DB/ZM30-SB |
ZM50-D/ZM50-S/ZM50-DB/ZM50-SB |
ZM100-D/ZM100-S/ZM100-DB/ZM100-SB |
ZM200-D/ZM200-S/ZM200-DB/ZM200-SB |
ZM250-D/ZM250-S/ZM250-DB/ZM250-SB |
Parameter |
ZM60-D/ZM60-S/ZM60-DB/ZM60-SB |
Effective cylinder volume( L) |
1.4 |
5 |
15 |
20 |
30 |
50 |
100 |
200 |
250 |
60 |
Main motor power (KW) |
2.2 |
7.5/11 |
15 |
18.5 |
22 |
30 |
45 |
75 |
55/75 |
Grinding medium load( L) |
About 85% of the cylinder volume |
Materials in/outlet pipe diameter |
G1/2 |
G3/4 |
G1 |
G1 1/2 |
Cooling water in/outlet pipe diameter |
G1/2 |
G3/4 |
Pump pressure |
0.7MPa |
Compressed air consumption(m 3 /min) |
0.2 |
0.3 |
0.6 |
Weight(kg) |
|
600 |
750 |
900 |
1000 |
1200 |
1800 |
2500 |
2700 |
Overall size(mm) |
|
1250×900×1250 |
1550×1050×1500 |
1650×1100×1500 |
1750×1100×1500 |
1900×1150×1780 |
1750×1100×1800 |
2000×1200×2000 |
2090×1230×2090 |
