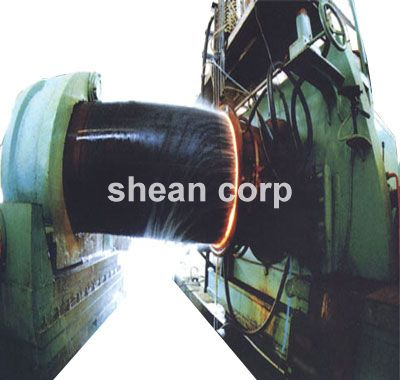

Hot Pipe Bend Machine
HYG type hydraulic two step Hot Pipe Bend Machine, was invented for easy operation and bend requirements. Hot Pipe Bend Machine could make various kinds bending pipes when equipped with rocker arm and arm lock.
Specification for Hot Pipe Bend Machine:
Raw materials of the hot pipe bend machine are as follows: Seamless steel pipe, welded steel pipe, or rolled steel pipe, Materials which can be successfully induction bent include all alloy steels, low and high carbon steels, high X grade linepipe steels, chrome-nickel alloys and titanium.
Hot Pipe Bend Machine for easy use adopt hydraulic system, induction heater which is originally used for the purpose of surface hardening steels, induction technology consists basically of an induction coil placed around the pipe to be bent. The induction coil heats a narrow, circumferential section of the pipe to a temperature of between 850 and 1100 degrees Celsius (dependant on the material to be formed). As the correct bending temperature range is reached, the pipe is moved slowly through the induction coil whilst the bending force is applied by a fixed radius arm arrangement.
Hot Pipe Bend Machine is of competitive price in China, since good reputation, we cooperated with customers form India, Turkey, Russia, Canada, etc. Hei Yan Group supply auxiliary pipe machine like bevelling machine, hydraulic press.
|
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
|
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
|
2 |
1220 |
20 |
6500 |
4 |
600 |
|
3 |
1020 |
20 |
6500 |
4 |
500 |
|
4 |
820 |
20 |
6500 |
4 |
400 |
|
5 |
720 |
20 |
6500 |
4 |
320 |
|
6 |
630 |
20 |
6500 |
2 |
300 |
|
7 |
530 |
14 |
6500 |
2 |
160 |
|
8 |
426 |
14 |
6500 |
2 |
130 |
|
9 |
325 |
14 |
6500 |
2 |
84 |
|
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
