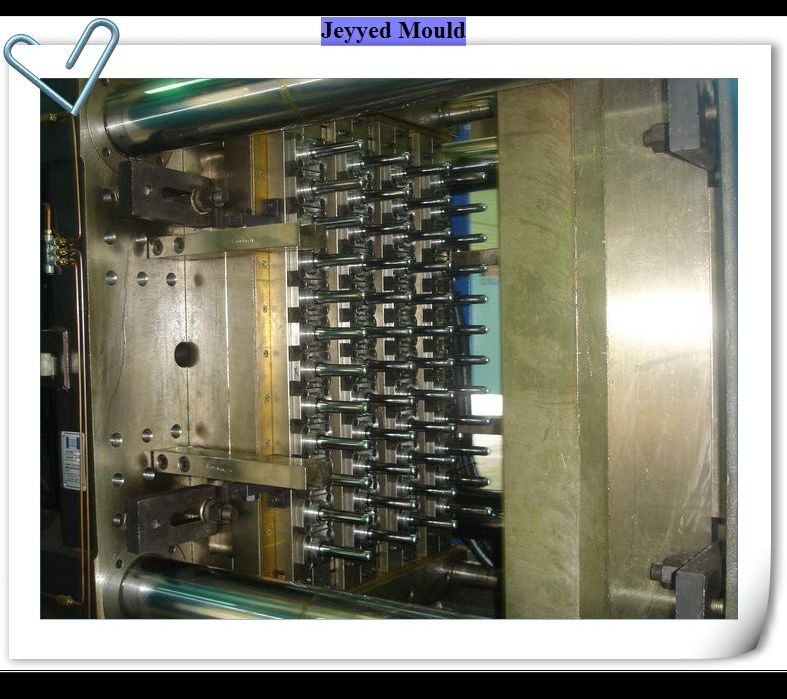

Hot runner gate vavled PET preform mould
1: Hot runner with quality
2: 1 to 120cavity, repidly quantity
3: Easy to keep, store
Usually, Multi-cavity pet preform mold does use the hot runner system rather than cold runner system, so the design of hot runner system plays an important role in mold quality guarantee. Based on foreign advanced techniques and combined with domestic clients demand, we adopt the valve gated design, in which each cavity has its own heating zone and temperature is measured by independent thermocouple. I. E., easily avoid some problems such as white or drawbench on bottom). Here, Mould is produced automatically to reduce labor force.
Main mold components (die core, die cavity, screw neck) are made by injection process, and the material of which originates from Sweden high-quality mould steel (HRC 45). In this way, it is no doubt that the mold can be used for 2 million shots without any maintenance, meanwhile, the wall thickness between max. Part and min. Part is not more than 0.10mm; Turning center processes make sure that every parts can match well; Proper distribution of cooling water way improve productivity effect and molding cycle only takes 15 seconds( need proper water chiller, bottle design and injection machine)
Mold is of high precision and long life span without traditional problems. Preform wall thickness is on error of 0.10mm; Weight difference is less than 0.3G; 2-5 moulds per minute; Up to 144 cavities in one mould.
Main feature:
1. Control system with simulating stretch testing improve yield rate
2. Adopt world advanced dipole taper localization technique, each cavity self-clamp independently, ensure mould concentricity
3. Standard screw neck, imported nitrided steel with high hardness is of long usage.
4. Advanced hot runner design and even heating temperature make sure the high quality of plastic products
5. Valve gated type without tail reduces labor force
1 All of our products dimensional controls are made according to CAD Datas.
2 Meet customers demands with the advanced inspection equipments (Video Measuring System, CMM, Projector, tool Microscope etc. ) and complete quality control system.
3 Ensure our products quality and the precision of process by the specialized CAD/CAM/CAE assistance design, CNC, EDM, and so on.
4 All moulds have to go through five checks in the whole process.
5 First trial of samples: We always send 3 pieces sample to customer for confirmation.
6 In our work process, our engineer will attend the mould trial to provide full support in improving the mould function and mould condition during trial.
Name
Mould material
45#, 50#, P20, H13, 718, 2316, 2738, NAK80, S136, SKD61 etc.
Mould base
LKM, HASCO, DEM, etc.
Cavity
Single/multi
Runner
Hot/cold
Design software
UG, PROE, CAD, CAXA ect.
Plastic material
PP, PC, PS, PE, PU, PVC, ABS, Nylon, PMMA, POM, TPU, etc.
Mould life
300, 000-3, 000, 000 shots
Delivery time
15-60days
Specification
Depends on customer's requirements.
We are a mold maker for many kinds of molds in China.
We can make container, cap mould, PET preform mould, automobile part mould, fitting mould.
If you have any requierments, please contact us.
We can be responsible for mold after sale service.
