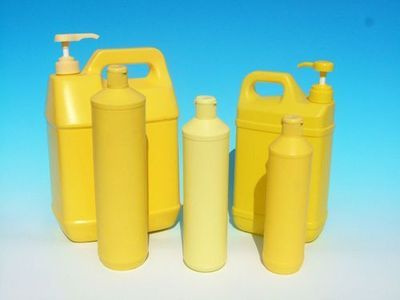

Household Plastic Bottle Blow Molding Mould
| Price: |
US $ 1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

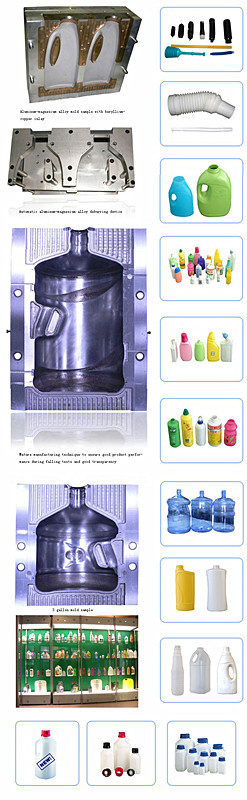

Extrusion Mould for PE Blow Molding Machine
The Mould for PE Extrusion Blow Molding Machine. We make the PE Extrusion moulds in accordance with customers' specific requirements.
Specailly for extrusion blow molding machine.
The 2L-16L double station blow moulding machine is different from the single station machine in that it has one additional station with high-precision linear guide, covering four major series of FSC-2L, FSC-5L, FSC-10L and FSC-16L. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, and PA. The largest capacity of the product can be 16L, and its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production.
Extrusion Mould for PE Blow Molding Machine,equipment information.
Specification |
| FSC-2L | FSC-5L | FSC-10L | FSC-16L |
| Material |
| PE,PP | PE,PP | PE,PP | PE,PP |
| Max.container capacity | L | 2 | 5 | 10 | 16 |
| Number of die | set | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 |
| Output | pcs/hr | 950×2 | 750×2 | 700×2 | 600×2 |
| Machine Dimension | m | 2.7×2.0×2.5 | 3.4×2.2×2.6 | 3.9×2.3×3 | 4.9×4×3.1 |
| Total weight | ton | 4 | 6.5 | 9.5 | 10 |
| Accumulator head |
| ZQD-2L | ZQD-5L | ZQD-10L | ZQD-16L |
| Number of die heating | zone | 3 | 3 | 3 | 4 |
| Power of die heating | KW | 4.2 | 5.8 | 6-7 | 6-7 |
| Max die-pin diameter | mm | 60 | 80 | 140 | 140 |
| Center distance of twin-die | mm | 130 | 160 | 240 | 260 |
| Center distance of tri-die | mm | 85 | 110 | 160 | 180 |
| Center distance of four-die | mm | 65 | 85 | 120 | 130 |
| Clamping Unit |
| FSC-2L | FSC-5L | FSC-10L | FSC-16L |
| Clamping force | KN | 38 | 70 | 110 | 155 |
| platen opening stroke | mm | 135-370 | 145-510 | 230-600 | 230-600 |
| platen size | mm | 280×380 | 320×390 | 450×490 | 500×490 |
| Max mould size | mm | 300×320 | 350×370 | 520×500 | 600×500 |
| Mould thickness | mm | 135-210 | 155-300 | 235-380 | 235-380 |
| Extruder Unit |
| ZQD-2L | ZQD-5L | ZQD-10L | ZQD-16L |
| Screw diameter | mm | 60 | 70 | 90 | 90 |
| Screw L/D ratio | L/D | 24:1 | 24:1 | 25:1 | 25:1 |
| Extruding Volume | Kg/hr | 60-80 | 100-120 | 130-160 | 130-160 |
| Number of heating zone | zone | 3 | 3 | 4 | 4 |
| Extruder heating power | KW | 5-6.6 | 6-8.2 | 8.2-9.3 | 8.2-9.3 |
| Extruder driving power | KW | 15-18.5 | 22-37 | 37-45 | 37-45 |
| Prod Model: |
FSCM-H4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Forstec |
| Model: |
Fscm-H4 |
| Size: |
According to The Needs of Customers |
| Application: |
Household Appliances |
| Product Material: |
Steel |
| Process Combination Type: |
Single-Process Mode |
| Method For Making Preforms: |
Extrusion Type |
| Extrusion Blow Molding Mould Application Type: |
Commodity Container |
| Function: |
High Temperature Resistance |
| Certification: |
CE |
| Customized: |
Customized |
| Condition: |
New |
| Warranty: |
1 Million Modules |
Suzhou Forstec machinery Co., Ltd is located in zhangjiagang city Yangshe economic development zone.
We company is mainly dedicated to the production and trading issues for the blow molding machines. The machine is suitable for the production from 5 ml to 1000 litres of plastic bottles, bucket, cans, tool bag, car parts, unique shape insulating hollow seats, the car, tray, packaging barrels and hollow products. According to the need we can be configured single-mode head, dual mode head, three die head, four die head, six die, single, double, three, four, five, six layer modular top layer. For the users can make suitable for processing various special and special raw materials bottle blowing machines, blow molding blow molding machines. Such as PE, PP, PC, PA, PS, ABS, EVA, PETG, EVOH, PVDC, characterization, PPE, POM, TPE etc products of the production. The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.
The company always adhere to the "collaboration, and the operation tenet" together with the customer, and the user, a hollow out, realize the development, improve the molding technology profession competitive power. At the same time the company always adhere to the "innovative design, fine manufacture, continued to improve, for global customers with first-class products and service" the quality idea, make product quality, provide satisfying products for market. Strive to continuing innovation and accumulation in outreach, LED by a combination of comprehensive form, the comprehensive strength of the modernization of the strong excellent enterprise.
