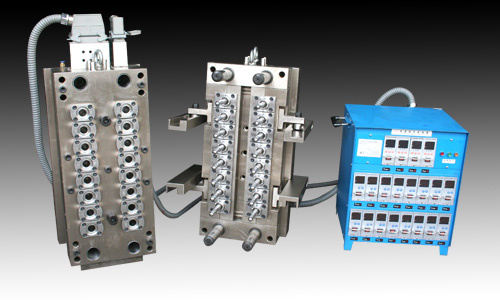

Hut Runner Pet Preform Mould

Hut Runner Pet Preform Mould
Price: US $ 1000Cavity
Trade Terms: by Ship /Air
Min Order: 1set
Hut runner PET preform mould

A. Capacity of Research and Development
YUANDA company has a powerful team for research and development, which is capable of manufacturing the perform molds with one cavity to ninety-six cavities including the injection system. At the same time we can manufacture perform molds especially according to customers' injection molding machines. We also design cold parts, hot runners and other main exchangeable components to fix on the imported perform molds.
Hut runner PET preform mould
B. Mould Features:
1. Features of the perform mold. No cutting of valve gate is employed to reduce the labor cost.
2. Advanced hot runner system assures lower level of AA value.
3. Reasonable- designed cold water channels increase cooling effect and shorten the cycle time.

C. Material
1. The main components of perform molds are made of S136 material (Sweden ASSAB).
2. The mold base is made of imported P20. Plate method avoids corrosion efficaciously and assures long life service of the perform molds.
3. German Vacuum stove is imported for heat treatment of the components, which assures the hardness of components HRC45-HRC48.

D. Advanced Processing Equipment
Many machine tools are imported from America and Japan, such as Machine center, CNC lathers, EDM and so on. All of these increases processing precision, good interchangeability and low eccentricity ≤ 0.10mm (perform length≤ 100).

E. Electric Heating Components
1. German Hotset heating components.
2. German intelligent temperature controller (PID continuous power controlling).
3. Offering temperature controller and voltage controller according to customers' requirement

F. Perfect Inspection Method.
Inspection tools include projector, hardness tester, stress tester, eccentric tester, electric balance and other inspection tools.
The screw neck is made and inspected strictly by the standard of Coca cola and the screw neck has been up to the standard of Coca cola.

G. After-Sales Service
Technologists professional in after-sales line and excellent credit assures stable operation of the machines.
PET Preform Mould Specification
Mould name 16 cavity preform mould for PCO 1810 Neck 35g Preform
Mould cavity 16 cavity
Neck finish PCO 1810 Neck finish
Preform weight 35g
Insert materials 2316 stain steel from German
Mould body #50 steel material
Cycle time 32 sec with general PET screw type of injection molding machine
Cycle time with two stage injection system and Post cooling system Not available
Hot runner design Balanced Hot runner with valve gate system
Suitable injection molding machines Husky, Netstal PET line, PET Master, General PET injection molding machine

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cavity: 16
Weight: 35gram
Product Material: Steel
Shaping Mode: Preform Mould
Product: Prefom
YUANDA is one of the biggest manufacturers of Blow Molding Machine in China. YUANDA lie in Huang yan, Taizhou, Zhejiang, China. We are the member of Enterprise of China Plastics Processing industry Association, and professional manufacturing company of Two-steps PET BOPP Semi-automatic Blow Molding Machine, manual Preform feeding PET automatic blow and Aluminum Casting Mould. After over 10 years of efforts, we have obtained eight national patent techniques. Our company has been approved by the ISO9001 and CE certificate, furthermore, the quality of the machine is in sured by PICC.
