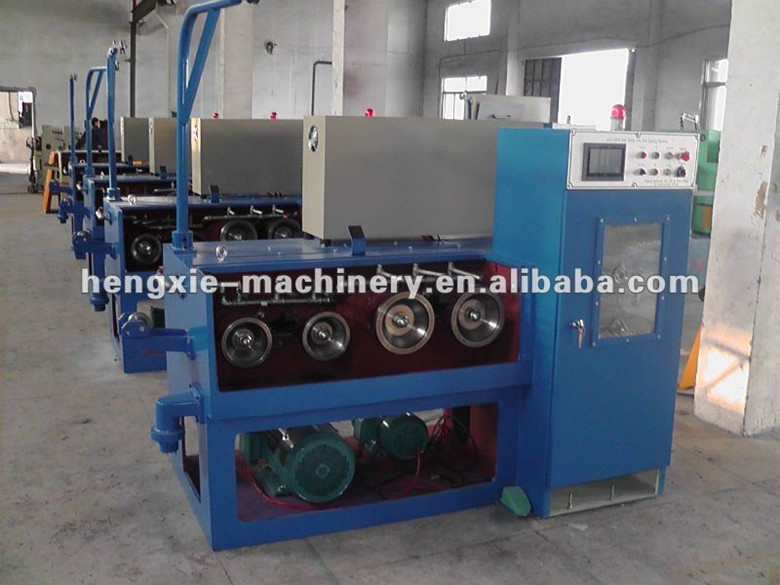

HXE-24DW Fine wire drawing machine
I. Components
| Name | Quantity |
| 1.Pay-off stands | 1 set |
| 2.HXE-22DW main drawing machine | 1 set |
| 3.Spare parts |
|
II. Main Technical parameters
1.Usage: copper drawing
2.Inlet size: 1.2mm-2.5mm
3.Outlet size: 0.2mm-0.5mm
4.Drawing speed: 2500 MPM/ MAX.
5.Die No: 22 pieces(customer self provides) Die size:Φ25mm×8
6.Reduction ratio of machine: from1st~21st:15%, 22nd: 8%.
7.Wire drawing type: horizontal and continuous and slipping drawing
8.Main motor: 20HP(15KW)AC motor, controlled by inverter
Spool motor: 5HP(3.7KW) AC motor, controlled by inverter
9.Machine body: cast iron
10.Machine transmission: by flat belt
11.Capstan: ceramic coated
12.Lubricating: spraying above dies and capstans. Requiring lubrication capacity 40L/min
13.Applicable spooler size 300mm
Power source Customized
15. Machine dimension: 2300*1250*1800mm (L*W*H)
16. Machine weight: 2400kg
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
