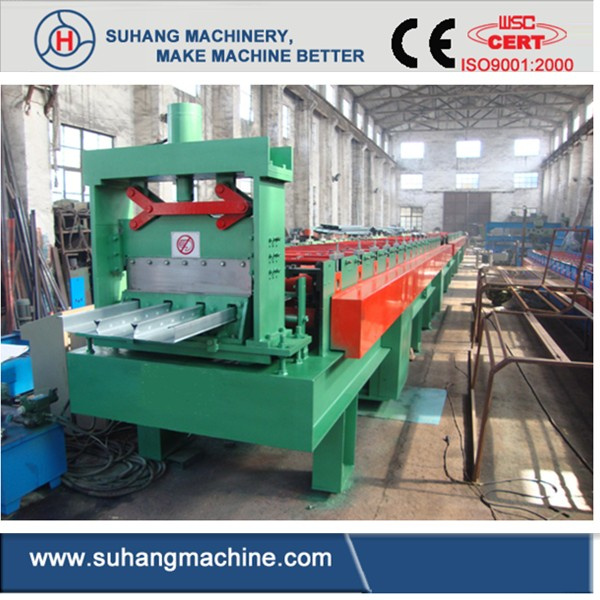

Hydraulic Decking Floor Roll Forming Machine
The panel produced by this machine has high strength with big wave. It adheres well to concrete. It is used on high buildings. It not only saves steel mold plate, but also saves investment.
The deck floor panels forming by this machine is used for high building surface panels, it has so many good advantages, such as high wave, high strongness, high atuomation, low cost.
Machine Components:
Unpowered Decoiler, Main forming machine, Forming cutter, Computer control system, Hydraulic station, Product Rack
Working Flow:
Decoiling guiding and feeding roll forming cut to length run out table
We can design and manufacture the machine according to clients' request! Please send us the enquiry with Profile Drawing.
Cutting:
(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
(2) Material of blade: GCR12 with heat treatment
(3) Length measuring: Automatically
(4) Tolerance of length: + 1.5mm
Control Box: Panasonic Brand
(1) Power supplier: 380 V, 50 Hz, 3Phase (adjusted with the requestment)
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) Unit of length: Millimeter (switched on the control panel)
Character of main structure
Main features and components of the machine
1. Main features
A. Simple structure & beautiful appearance, because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
B. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
C. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
D. It is very easy to install the equipment and suitable for producing in the factory.
E. The machine has features of low noise and high efficiency.
Screen, a series of Panasonic transducers, and OMRON encoder) a set of material shelf.
| Number | Items | Unit\Type | RF-FD |
| 1 | Steel Thickness | mm | 0.8-1.2 |
| 2 | Steel feeding width | mm | 1000-1250 |
| 3 | Forming Speed | m/min | 10-15 |
| 4 | Roller stands | stand | 30-36 |
| 5 | Roller Material |
| 45# steel, coated with chrome |
| 6 | Hydraulic cutting Power | Kw | 18 |
| 7 | Hydraulic pressure | Kw | 5 |
| 8 | Hydraulic pressure Mpa | Mpa | 12 |
| 9 | Power Supply |
| 380V, 50HZ,3 phase |
| 10 | Tolerance | mm | 1.5 |
| 11 | Material of cutting |
| Cr12 |
| 12 | Control system |
| PLC with touch screen |
| 13 | Machine net weight | T | 16 |
