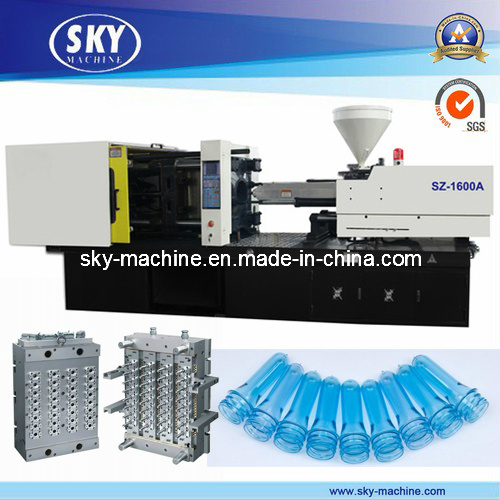

Hydraulic Injection Molding Machine

Hydraulic Injection Molding Machine
Price: US $ 20000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Hydraulic Injection Molding Machine

Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).

Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.

Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
Item Unit Data
Max. clamping force KN 1600
Max. opening distance mm 460
Space between tie bars(V×H) mm 480×480
Mold height(min-max) mm 180-500
Max. daylight mm 960
Ejector force KN 45.2
Ejector stroke mm 115
Ejector quantity   5
Screw diameter mm 45 50 55
Screw L/D ratio L/D 23.3 21 19.1
Theoretical shot volume cm3 358 442 534
Plasticizing weight(PS) g 326 402 486
Injection pressure Mpa 219 178 147
Theoretical injection rate(PS) g 142 175 212
Plasticizing capacity(PS) g/s 20.1 26.5 34.2
Screw torque N.m 1250
Max. screw rotate speed r/min 200
Injection stroke mm 225
Pump motor power KW 18.5
Pump pressure Mpa 16
Heating power KW 13.6
Heating zone   4
Size(L×W×H) m 5.3×1.35×1.9
Net weight t 5.6
International designation   1600-785

Prod Model: SZ-1600A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force: 1600kn
Type: Preform Injection
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Zhangjiagang Sky Machine Co., Ltd is one of the world's leading beverage machinery manufacturers. With over ten years of manufacturing experience, we can offer the following production lines and equipment: Bottled Water Production line, Juice production line, Barreled Water Production, Beverage Filling Machines, Water Treatment Equipment, Fruit Juice Beverage Auxiliary Equipment, Carbonated Beverage Auxiliary Equipment, Latter Packaging Equipment, and Bottle Blowing Machines. Our vast line of beverage machinery is available for countless users to meet all your customers' needs.

With our self-sufficient import and export qualifications, we can satisfy all global customers with our high-quality beverage machinery and perfect performances in both our financial standings and practical services. Throughout our years in the industry, our company has earned an admirable reputation across the globe for our advanced technology, superior quality products, and efficient after-sale service. Our beverage machinery, including Beverage Filling Machines and Soft Drink Filling Machines, has been exported to many countries, such as Japan, Russia, Indonesia, and Malaysia etc.

Quality of our beverage machinery is our primary focus. Working by the principle of "Quality First, Customer First", we take the utmost care at every stage of the manufacturing process, thereby assuring our customers a totally hassle-free performance for years of operation. We have gained vast recognition and acclaim from all our valued customers for the beverage machinery and services that clearly exceed the expectations of our clients'.

Excellent materials are very essential to our high quality beverage machinery. Our Beverage Filling Machines, Soft Drink Filling Machine, etc. Are made from top grade SUS304 and SUS316, all electric elements adopted by world-known and trusted brands such as Omron, Siemens, Mitsubishi, and Schneider. All parts are processed by CNC lathe and milling machines, guaranteeing the precision of every product.

We sincerely invite businesses around the world to establish a professional relationship with us based on trust, benefits and the promising possibility for future development. Providing high quality Beverage Filling Machines, Soft Drink Filling Machine, etc. For our customers is our endless pursuit.
