Mpplicable scope:
Unicolor/bicolor sole/shoelace, small plastics, sole test mold proofing, complement, leather sole injection molding, inserts injection.
Applicable material:
TR, TPU, TPR, PVC, SEBS and so on
Main Feature
1. Siemens PLC control system allows the machine z stable work.
2. Schneider Electric parts ensure the electric control system of the machine stable and reliable.
3. Mitsubishi fluency converter makes the mobile material shoot gun more quick, stable and accurate.
4. Dofluid hydraulic valve ensure the oil circuit smooth and stable.
5. Crane connecting bar die molding allows stable mold clamping force.
6. Rapping bar turn over automatically, counterdie shifts out to ensure easiness, convenience, and quickness of taking out the products, mold inserting.
7. Push-out automatically and no product detormation in ensured, fully reducing the work intensity of the operator.
8. Open touch panel allows a at any time control on operating condition and a diagnosis of abnormal condition.
9. Template and mold are cooled by water, which increase the output.
10. Lubricate automatically to make up the shortage of manual maintenance and to lengthen the life time of the machine.
11. The machine has four safety devices, operated by machine, electricity, water and air, which ensure the operation safe.
12. Servo motor sharply saves power energy consumption.

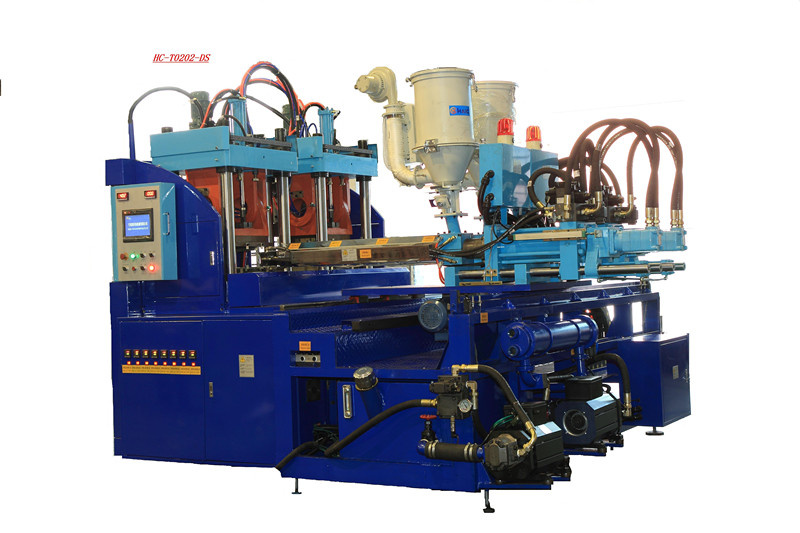

| ltem | Unit | HC_T0202-D |
| number of Station | Statian | 2 |
| Clamping | Ton | 220 |
| Mould Dimensions | mm | 300x400 |
| Max.Opening stroke OF the Mold | mm | 350 |
| Argles of Rotating head |
| 0°-90° |
| Screw Diameter | mm | 65 |
| Screw speed | rpm | 0-185 |
| Thermal zone of barrel | No. | 3+1 |
| Injection pressure | mpa | 95 |
| Injection volume | Cm3 | 860 |
| Length-diameter ratio L/D | L/D | 22 |
| Extrusion unit | Kw | 13 |
| Max.electric consumption | Kw | 45.5 |
| The average power consumption | Kw | 28 |
| Measurement L*W*H | Mm | 4300*3400*2500 |
| Weight approximate | ton | 9 |
