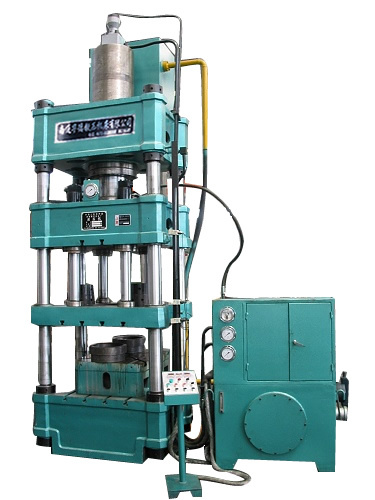

The serial hydraulic pressure system adopts two-way cartridge value. PLC and installed in the electrice for users choose, it is designed to be convenient and reliable. Serial liquid presses have fast speed of slow down, drawing speed and pigeonhole strength are adjustable, the ideal equipment in the sheet metal products.
W:
Number Paraneter Unit YHD28-40 YHD28-63 YHD28-20 YHD28315 YHD28-40 YHD28-50 YHD28-63 YHD28-12 YHD28-2000/2600
1 Rated force KN 630 1000 3000 4000 6300 8000 10300 20000 26000
2 Knock-out pressure KN 400 630 2000 3150 4000 5000 6300 12000 20000
3 Max. Workong hydra mm 300 400 1000 800 2300 3000 4000 8000 6000
4 Slide stravel Mpa 190 190 400 630 1000 1000 2000 4000 1000
5 Max. Hydraulic pre mm 25 25 25 25 25 25 25 25 25
6 Stroke of drawing mm 500 600 700 800 800 1000 1300 1350 2000
7 Destance between mm 300 300 400 400 800 1000 1300 1350 2000
8 Speed of L-R mm 560 720 1000 1260 1400 3000 1900 2000 2000
F-B mm 500 580 900 1200 2200 1500 1950 1800
9 Dimensio L-R mm 560 720 1000 1260 1400 3000 2600 3000 3500
F-B mm 500 580 900 1260 1400 2200 2200 2500 3500
10 Effectiv L-R mm 560 720 1000 1260 1400 3000 2600 3000 3500
F-B mm 500 580 900 1200 1400 2200 2200 2500 3500
11 Dimensions of dia mm 1100 1300 1400 1500 1700 1800 2000 2600 4500
12 Maximun daylight mm 700 800 900 1000 1150 1800 2000 2400 4500
13 Dimensio Pressing mm/s 120 120 100 100 100 100 100 100 100
Return mm/s 20 12-14 15 10 12 12 10-12 10 10
Return mm/s 100 120 52 60 80 100 80 80 80
14 Outline L-R mm 2500 4000 4000 4500 5600 5800 5700 7000 8000
F-B mm 1500 2000 2000 2800 3000 3000 2800 2800 3800
Mm 3200 4100 4400 4600 5500 6400 7400 9500 8800
15 Motor power KW 5.5 7.5 15 22 30 50 60 154 154
Nantong hailite specializes in making shearing machine, press brake, rolling machines and 15tons to 1500tons rubber press machine for a long history. We are an innovative enterprise which collects the production, research and development, and sale as an organic whole. We have passed the evaluation of ISO9001: 2000 certification.
Every management of our company is rigorously enforced, production is self-contained, manufacturing engineering is advanced, and product quality has courteous service steadily after sales. Our products find a good sale in such areas as Europe, Southeast Asia, the Middle East, and Africa. We welcome Chinese and foreign traveling traders. We will appreciate the advice wholeheartedly. Let us devote it sincerely together, abide by prestige, go forward hand in hand for common development.
Our factory offers the ideal equipment to user with hospitable attitude and prestige. Welcome the presence of the masses of customers.
