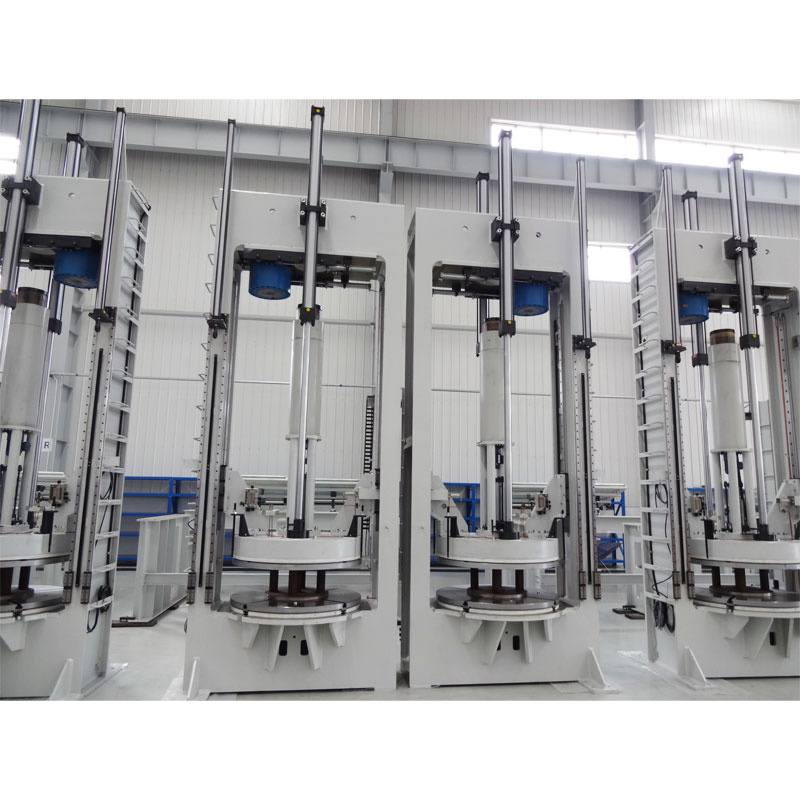

Hydraulic Rubber Machine

Hydraulic Rubber Machine
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T
Technical Parameters:

1. Sizes: 51"(15"~22")
2. Thickness of mold: Min250mm~max550mm
3. Mold clamping capacity: Max220t
4. Cavity: Two cavities
5. Type: Frame
6. Dia. And length of tire: Φ 900mm &max400mm
7. Type of bladder: Open up/down
8. Curing media: Steam, nitrogen
9. Mold heating: Heating pad, heating jacket
10. Green tire storage: 1-position grabbing/ 3-position rotating
11. Position control device: Linearity sensor and encoder
- Manipulator, tire remover, center mechanism, open/close mold
12. Adjustment of mold height automatically
13. Suitable molds: Two piece mold, segmented mold
14. Hydraulic drive station:
1)one main drive five split type
With high pressure 24MPa(1running1standby),
Medium pressure 10MPa (3running 0standby)
2) one drive one typeWith high pressure 24MPa (1 running 1 standby) 15. Cycle time(net): 90 seconds
16. Curing system (optional)
(1) Steam(high temperature): 17kgf/cm2
(2) Nitrogen(internal pressure): 25kgf/cm2
(3) Steam for heating pad/heating jacket: 10kgf/cm2
17. Application
Power supply: 380V(50Hz)3P, DC24V

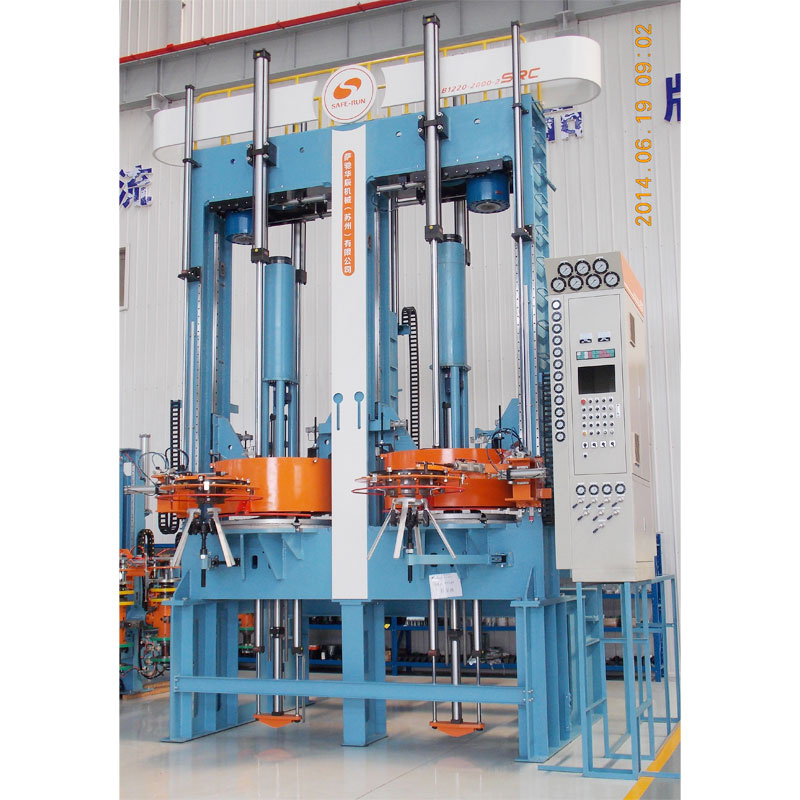

Prod Model: 51 Hydraulic cure press
Markets: Southeast Asia,Eastern Asia
Size: 51 Inches
Type: Tire Machinery
Type Of General Rubber Machinery: Material Processing Machine
Type Of Tire Machinery: Tire Shaping and Curing Press
SAFE-RUN-A new generation of high-end equipment R&D manufacturing base in China

SAFE-RUN, gathered with experienced professional elites, starting from higher point, setting higher position and highergoal, has been developed into an one-stop professionalenterprisewho provides to the customers with integrated solutions that includes not only high-end equipment design and manufacturing, but also process technology, equipment overhaul, upgrades, maintenance and staff training.

Safe-run has got certificates of ISO9001.2008 international quality control system, ISO14001environment management system and OHSAS18001, and won"Hi-tech Enterprise" in Jiangsu province.

R & D Team: Sustainable innovation ability is the main driving force of the company's development. Our company now has a R&D team composed of senior experts of the industry both at home and abroad. Their rich experience and high technology level guarantees the company's leading position of R&D in the industry.

R & D Investment: For pursuing high quality, forward-looking and differentiation, the investment the company invested in R&D each year is about 10% of the sales income averagely. With years' high investment in R&D, the company has accumulated a solid technology strength.

Intellectual Property: Our company encourages self-dependent innovation, attaches great importance to intellectual property rights and assigned specific personnel for the management. Our companyhave obtained a number of national patents and software copyright.
