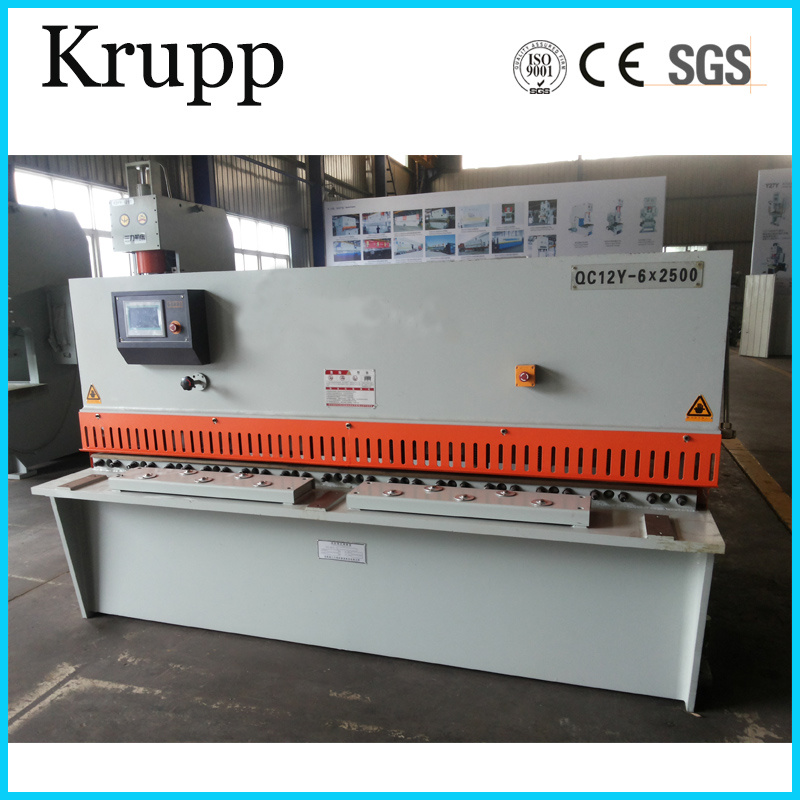

1.The mainframe is fitted with numeric-control system special for shearing machines.
2.The position of rear stopper is displayed in a real-time manner.
3.Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning,to achieve an automatic adjustment for position of rear stopper.
4.It is provided with counting function for shearing,to display the shearing numbers in a real-time manner,able for power-failure memory of position of rear stopper ,procedures, and parameters.
5.Imported ball bearing lead screw and liner guide rail are used,to ensure the positioning precision,so that the processing precision of machine is higher.
Model | Cutting thickness (mm) | Cutting width(mm) | Cutting angle(º) | Travel times (min-1) | Stopper adjust range(mm) | Motor power (Kw) | Dimension (L × W ×H) (mm) |
4×2500 | 4 | 2500 | 1°30` | ≥16 | 20-600 | 4 | 3040×1430×1560 |
4×3200 | 4 | 3200 | 1°30` | ≥12 | 20-600 | 5.5 | 3840×1675×1720 |
4×4000 | 4 | 4000 | 1°30` | ≥10 | 20-600 | 5.5 | 4640×1850×1800 |
6×2500 | 6 | 2500 | 1°30` | ≥16 | 20-600 | 7.5 | 3040×1520×1690 |
6×3200 | 6 | 3200 | 1°30` | ≥12 | 20-600 | 7.5 | 3840×1660×1720 |
6×4000 | 6 | 4000 | 1°30` | ≥10 | 20-600 | 7.5 | 4640×1855×1800 |
6×5000 | 6 | 5000 | 1°30` | ≥8 | 20-600 | 11 | 5786×2200×2160 |
6×6000 | 6 | 6000 | 1°30` | ≥7 | 20-600 | 11 | 6800×2130×2270 |
8×2500 | 8 | 2500 | 1°30` | ≥12 | 20-600 | 11 | 3040×1575×1720 |
8×3200 | 8 | 3200 | 1°30` | ≥10 | 20-600 | 11 | 3840×1675×1750 |
8×4000 | 8 | 4000 | 1°30` | ≥8 | 20-600 | 11 | 4680×1850×1800 |
8×5000 | 8 | 5000 | 1°30` | ≥7 | 20-600 | 15 | 5786×2200×2160 |
8×6000 | 8 | 6000 | 1°30` | ≥5 | 20-600 | 18.5 | 6800×2130×2270 |
10×2500 | 10 | 2500 | 1°30` | ≥10 | 20-600 | 15 | 3200×1960×1800 |
10×3200 | 10 | 3200 | 1°30` | ≥9 | 20-600 | 15 | 3950×1840×1810 |
10×4000 | 10 | 4000 | 1°30` | ≥8 | 20-600 | 15 | 4720×1870×1925 |
12×2500 | 12 | 2500 | 1°30` | ≥10 | 20-800 | 18.5 | 3225×1950×1910 |
12×3200 | 12 | 3200 | 1°30` | ≥9 | 20-800 | 18.5 | 3925×2130×2050 |
12×4000 | 12 | 4000 | 1°30` | ≥8 | 20-800 | 18.5 | 4740×2290×2170 |
16×2500 | 16 | 2500 | 2° | ≥8 | 25-800 | 18.5 | 3240×2182×2040 |
16×3200 | 16 | 3200 | 2° | ≥7 | 25-800 | 22 | 3940×2222×2100 |
16×4000 | 16 | 4000 | 2° | ≥5 | 25-800 | 22 | 4750×2290×2225 |
20×2500 | 20 | 2500 | 2°30` | ≥6 | 30-800 | 37 | 3340×2265×2230 |
20×3200 | 20 | 3200 | 2°30` | ≥5 | 30-800 | 37 | 4050×2400×2330 |
20×4000 | 20 | 4000 | 2°30` | ≥5 | 30-800 | 37 | 4870×2600×2535 |
25×2500 | 25 | 2500 | 3° | ≥5 | 30-800 | 45 | 3400×2430×2335 |
25×3200 | 25 | 3200 | 3° | ≥4 | 30-800 | 45 | 4100×2580×2490 |
25×4000 | 25 | 4000 | 3° | ≥4 | 30-800 | 45 | 4950×2500×2600 |
30×2500 | 30 | 2500 | 3°30` | ≥4 | 30-800 | 45 | 3300×2900×3000 |
30×3200 | 30 | 3200 | 3°30` | ≥4 | 30-800 | 55 | 4200×2500×2600 |
40×2500 | 40 | 2500 | 4° | ≥3 | 30-800 | 55 | 3200×3300×3200 |
40×3200 | 40 | 3200 | 4° | ≥3 | 30-800 | 55 | 4300×3300×3000 |
The above data is just for you reference,if there is any disaccord please refer to actual data
