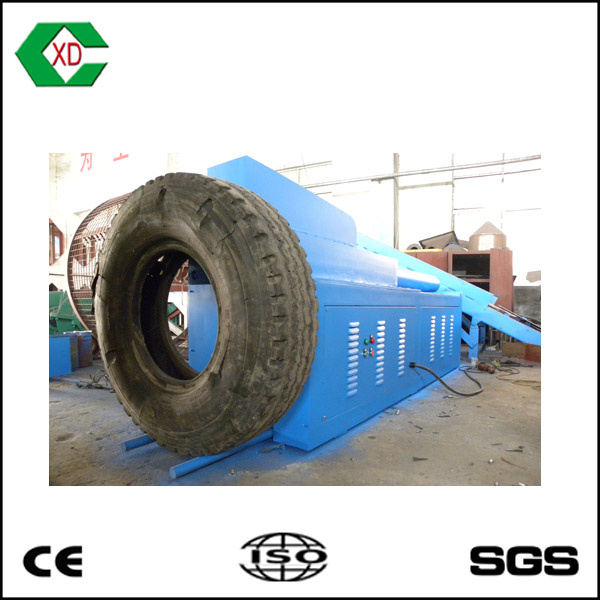

Hydraulic Tyre Wire Drawing Machine

Hydraulic Tyre Wire Drawing Machine
Price: US $ 5000-10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union

Description:

This machine consist of motor ,hydraulic system,drawing hook,drawing mouth,and main part,etc.
Its basic principle is driven hydraulic system and made the cylinder work by the motor to make the drawing
hook liked the cylinders pull pole reciprocate motion, put the tire on the drawing month and jut the drawing
mouth to hook steel wire.

Meanwhile the rubber part of tire is teared because of the drawing mouth block it.thus get the effect of
separating smoothly.


Applications:
Draw out the steel wires from the tire bead.


Specifications:

Power

11Kw

Cylinder moving

1200mm

Tyre size

≤1200mm diameter

Pulling force

15Tons

Capacity

20-40pcs/hr

Dimension

3150*760*1120mm

Weight

1200kg


Competitive Advantage:
1. Hydraulic Driving
2. Easy Operation
3. adopt international advanced plunger pump technology,low noise,and high pressure and improved the stability and life



Prod Model: LS-1200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Tire Machinery
Type Of Tire Machinery: Tire Bead Wire Machine
Using Life: ≥15 Years
Customized: Customized
Weight: 1.2t
Power: 11kw
Pulling Force: 15t
Handling Tire Diameter: <=1200mm
Capacity: 20-40 PCS/Hr
Dimension: 3.15*0.76*1.12m
