About Lingtong Heavy Machinery Co., LTD.
We are one of the leading Manufacturers and Suppliers of block making machine . We
manufacture block making machine using German technology and high grade parts and
components like electric gas, hydraulic valve, etc., that are procured from famous brand manufacturers.
The Hollow Block Making Machine can produce many kinds of solid and hollow brick in different
specifications. The electric cabinet housed in the block making machine automatically controls
the brick production.

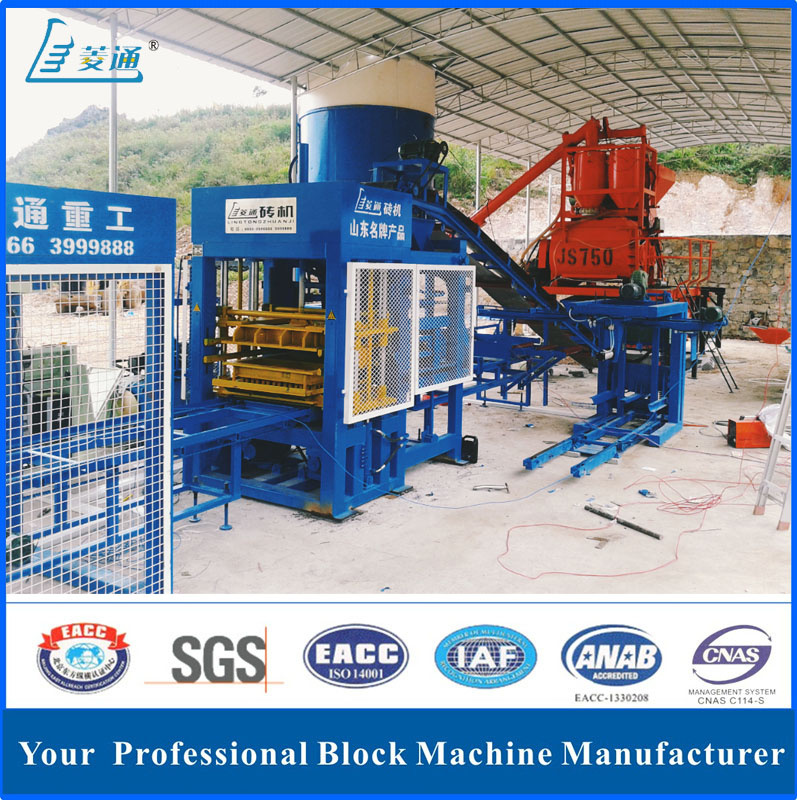

Description of block making machine in china
QT8-15 block making machine is applicable for the manufacture of high-qualityand high-strength
concrete or fly ash blocks, and block making machine is the most advanced and the most reliable
model in the domestic market. The company has production lines of different configurations to meet
the processing requirements and production needs of users for most concrete products.
Technical parameters of QT8-15 block making machine:
| Dimensions of main frame(L*W*H) | 8000*1900*3000mm |
| Molding height | 50-190mm |
| System pressure | 25Mpa |
| Virbration forcement | 78KN |
| Dimension of pallet | 950*900*30mm |
| Whole weight | 13000KG |
| Molding cycle | 15s |
| Power of main frame | 41KW |
Capacity of QT8-15 block making machine:
| Block sample | Size(mm) | Pieces/time | Pieces/H |
| Hollw block | 390*190*190 | 8 | 1920 |
| Multi-row perforated brick | 240*115*90 | 21 | 5040 |
| Standard block | 240*115*53 | 42 | 10080 |
| Pavment brick(single color) | 200*100*60 | 0.56m2 | 84m2 |
Device Configuration:
1. Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trainning to the operator.
2. Vibrator:
It adopts sensor and hydraulic proportion drive technology, forced centrifugal distributed by action of oscillating type charge car and arch breaking mechanism, multi-source vibration, adjustable frequency and breadth, creates low frequency distribution and high frequency forming, applicable for various material. Vibrating acceleration could achieve 17 grades.
3. Frame of forming machine:
It adopts high-strength section steel and special welding procedure, utmost firm.
4. Lead:
It is made of the super-strong and special type steel material, the surface is chromeplated which has favourable torsion and abrasive resistance.
5. Material feeder:
It is a special material feeding device which equiped with rotary forced charing device so that it can resolve the problem of wet slurry and material distribution to perforated bricks production.
6. Raw material:
Various waste slag could be used, such as sand, stone powder, coal gangue, flyash and the steel slag etc.
main features of LT QT8-15 block making machine :
* High quality with competitive price
* Easy to operate, engineers available to service machinery overseas
* Environmental protection and energy saving
* Can produce different bricks just change the mold
* 2 years guarantee service
* Provide OEM service
* Provide free advisory services
Device Configuration
| concrete spreader | electronic batching station |
| hydraulic system | automatic unloader machine |
| ayer pallet mixer | automatic palletizing machine |
| cement silo | secondary concrete spreader |
| loading machine | PLC electronic control system |
| part of host computer | automatic discharging plate mixer |
Professional service:
Our service | 1. Accept user consultation, confirm the scale of operation and program.
|
2. Our company is able to serve you professionally,we will supply the design latout and meet your special needs.
|
3. High quility products,in-time shipment and after-sales service will be guaranteed.
|
4. Free installation, debugging and training the relating work .
|
5. Strict performance of the three services, technical consulting and make the technical review timely.To provide users with more additional value. |
Why choose us ?
√ |
Famous trademark of China |
| √ |
Passed CE Mark |
| √ |
National enterprise abiding by contract and keeping good faith |
| √ |
National key high-tech enterprise |
| √ |
Top ten influential brand of China brick and tile industry |
| √ |
First place in production and sales of block machine and tile making machine in China |
| √ |
ISO quality system certificate enterprise |
| √ |
Supporting institution of Shandong machinery research institue |
FAQ:
1.MOQ: 1 Set
2.Warranty: 18 months.
3.What's the lead time: 10 days
4.What is the package: Wood carton or as per your request
5.Can we change moulds? Yes
6.Certification: ISO CE
7.Area required: 1000M2
8.How much manpower needed:2-3
9.Raw material: fly ash, coal residue, coal wastes, chemical residue, sand, stone, cement, construction wastes, etc.
Attentions:
If you are interested in our construction machinery, please do not hesitate to contact us on
Trademessenger client. Or, you can write message to send us an inquiry.
Your inquiry will be given prompt attentions and reply within 8 hours
Contact us:
Jeanne
Sales Manager,Export Department
Tel: +86 18280428520
Shandong Lingtong Heavy Machinery Co., LTD.
Add:No.88 Economic Development Zone,Gaotang District Liaocheng City,Shangdong Province,China.
Website: en.sdlingtong.com
We are offering a wide range of concrete block making machine that is perfect for concrete block making especially casting of hollow, solid concrete blocks. Fabricated following specified industrial procedures, these are widely acknowledged for their sturdy construction, excellent performance and durable finish standards. The bricks making plant, provided by us, is higher in grades, performance, and working life. The blocks making plant can be availed from us at competitive prices.
The bricks making plant is a fly ash brick making vibro-hydraulic press, which is a fully automatic machine. The bricks making plant is acclaimed by the worldwide clients for its superb efficiency and long working life.
As as a specialized manufacture and exporter for this product in China, we can supply block making machine with high quality and competetive price. Hope can cooprate with you. Compared with traditional clay brick, AAC block is the most economical and eco-friendly building material. As a kind of new building material, AAC block will be the ideal choice for all kinds of modern buildings.
We are prominent manufacturer, exporter, trader and supplier of block making Machines, concrete block machines, Interlocking paver Machines, block Machines, AAC block making machineand cutting machines, brick plants, etc. These machines are widely used for building construction and are appreciated for application specific design, precision functionality, optimum performance, longer serviceability, impact resistance, high tolerance and strength.
