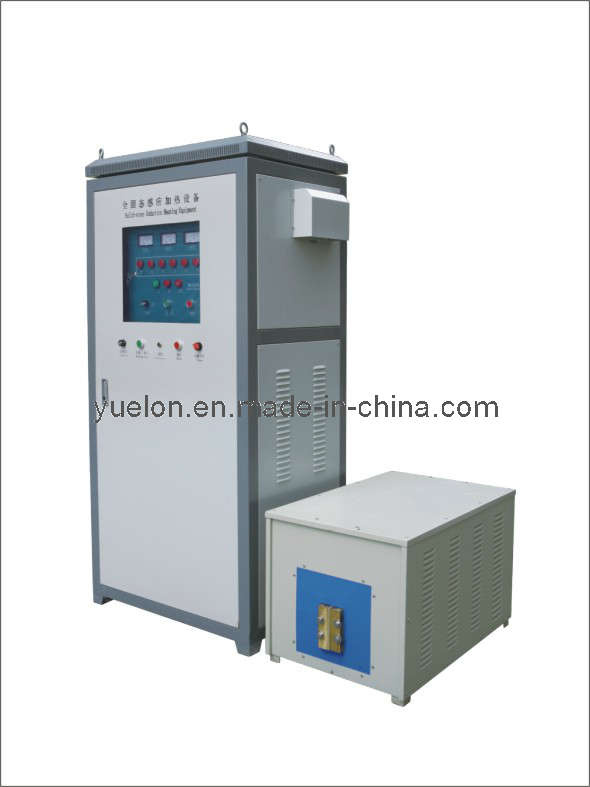

SF-200AB
Main specifications:
Maximum output power: 200KW
Frequency: 8-30kHz
Maximum input current: 320A
Input voltage: 380VAC 3phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: 0.1Mpa 80L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Weight and dimension:
Model Net weight(KG) Size: L x W x H (mm) Packing weight Pacing size: L x W x H (mm)
SF-200AB generator 172KG 603x852x1850mm 335KG 1020x1400x1930mm
SF-200AB transformer 125KG 841x546x580mm
Main characteristics:
1. IGBT inversion technology based LC series circuit.
2. Phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. Diode rectifier cause high power factor more than 0.95
4. Working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. Perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. Low energy consumption: Converts up to 97.5% above of the expended energy into useful heat. Energy saving 15%-30% compared with SCR induction heating machine.
7. Environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. Operating and installation easily and safely
9. Can subsititue traditional heating methods.
Application:
Rod forging
Bolt, nut forging
Heat treatment of shaft, gear, pin, etc.
Shrink-fitting
Annealing of pipe welding etc.
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.
Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)
Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
