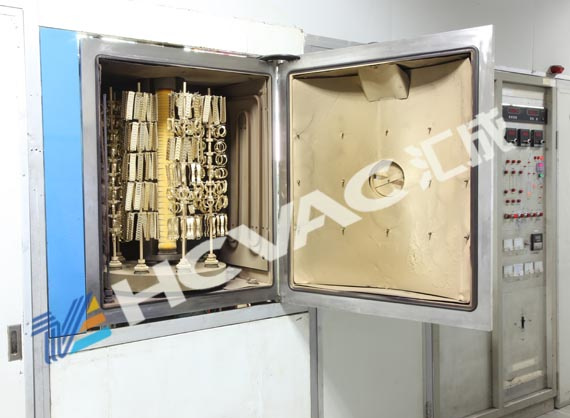

Imitation jewelry PVD coating machine, jewelry gold plating machine
This machine is used for steel jewelry or alloys jewelry to get IPG.IPS,IPR IPB, rose gold Platinum coatings etc. It's a environment protective equipment, no waste gas and no waste water, The main feature of IPG pvd coating machine is low cost , and adhesion of coating is stronger than tradition electroplating.
Usually for jewelry plating is using MF sputtering coating machine. Middle frequency sputtering vacuum coating machine mainly integrate the technology of MF magnetron sputtering and electric arc ion evaporation coating, combining the ion source and the pulse bias voltage. It is fully automatic control when coating films.
Applied industry: Ipg Jewelry Vacuum Coating Machine can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.The colros we can get:
*IPG, IP yellow, Zr-gold, Ti-gold, champagne gold
* 14K,18K,24K, rose gold real gold
*IPU blue, dark blue, grey blue, red purple
*IP light titanium, light grey, dark grey, black
*IPB light coffee, dark coffee, brown
Applications:
*Watch Parts: Watch Case, Watch Strap and accessories

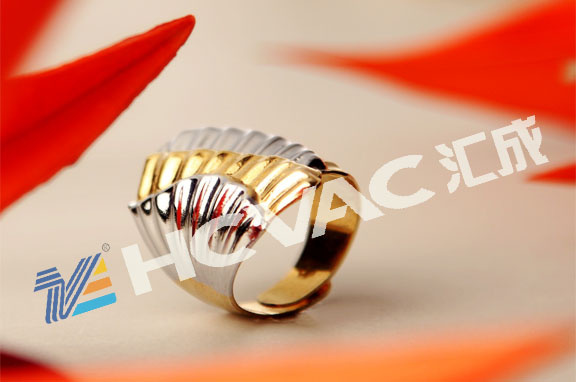

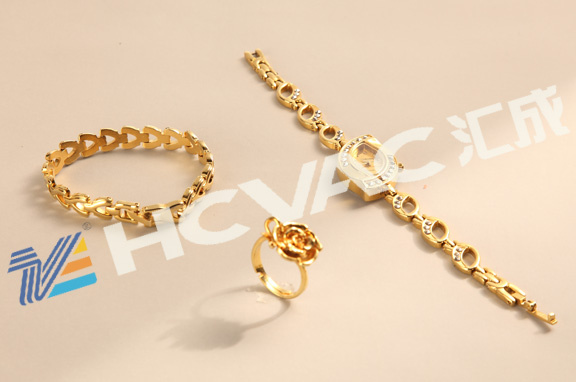

*Jewelry: Ring, Bracelet, Necklace, Pendant etc.
*Golf Head, Golf shafts etc.
*Kitchen&Bath Fitting: Stainless Steel, Brass, Zamak, ABS Parts.
*Hardware: Buckle, Fashion Hardware, LOGO etc.
*Ceramics and Glass Parts
Coating film performance:
(1) The coating is uniform, dense, with good adhesion, high hardness and low friction factor.
(2) The color does not fade over 2-3 years, which can meet the ROHS environmental standard.
(3) High physical property, good abrasion resistance; non-stick dirt on the surface of the coating.
(4) Stable performance, perspiration resistance/salt mist/abrasion/bend/RCA are all qualified.
Ipg Jewelry Vacuum Coating Machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
The coating experts of your own company: Full set solution for the coating production.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technicto meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Please feel free to contact us for further information!
Contact: Lillian Yang
Mobile: 0086-13825720037
Specification:
Mode Dimension | JTL-900 | JTL-1100 | JTL-1300 | JTL-1600 |
Φ9001000mm | Φ11001000mm | Φ13001200 mm | Φ16001200 mm |
Coating mode and main confirguration | 3 electric-arc+2 pairs of plane rectangular cathode | 6 electric-arc+2 pairs of cylindrical cathode | 5 electric-arc+4 pairs of cylindrical cathode | 6 electric-arc+8 pairs of cylindrical cathode |
Film Types | Metal films,Dielectric films,Compound films,Reaction films,Muti-layer function films |
Power source | Electric arc power supply,DC magnetron power supply,MF magnetron power supply.Pulse bias voltage power supply.ion source power supply. |
Process gas control | Quality flowmeter + electromagnetism ceramic valve |
Vacuum chamber structure | Vertical single(side) door, pump system postposition, double water-cooling |
Vacuum system | Molecule pump(diffusion pump)+Roots pump +Mechanical pump (8.0*10 -4 Pa) |
Pumping speed | Pumping time less than 15 minutes ,from atmospheric pressure to 310 -3 Pa |
Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
Control mode | Full automation control system PC+PLC/PC+HMI |
Remark | We can design the dimension of the equipment according to customers special technique requirement. |
