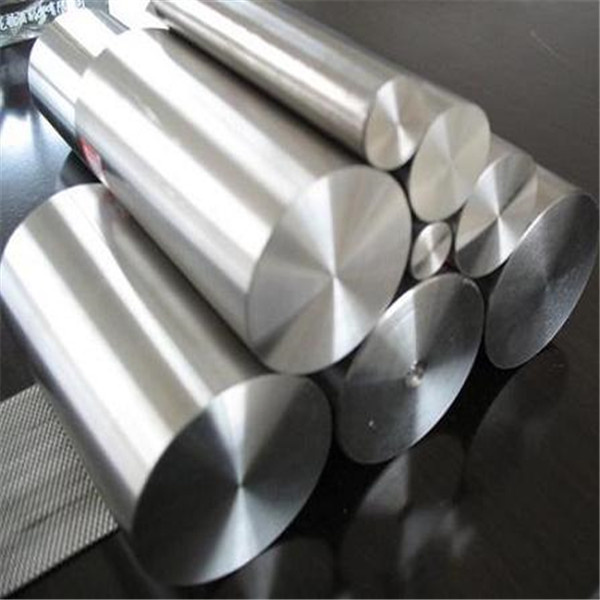

Inconel 600 Nickel Alloy Round bar/rod/pipe fittings
1.Brief Description:
Inconel 600 Specifications
Inconel 600 Chemical Composition
Grade | % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
600 | Min | 72 | 14 | 6 | | | | | | |
Max | | 17 | 10 | 0.15 | 1 | 0.5 | 0.5 | 0.015 | 0.015 |
Inconel 600 Mechanical properties:(Minimum value at 20°C)
Tensile Strength σb/MPa | Yield Strength σp0.2/MPa | Elongation σ5 /% |
585 | 240 | 30 |
Inconel 600 Standards
Bar | Forging | Sheet/Strip | Wire | Pipe |
ASTM B166 | ASTM B366 | ASTM B168 | ASTM B166 | ASTM B167 ASTM B163 ASTM B516 ASTM B517 |
Inconel 600 Application field:
1. Erosion thermocouple sheath of the atmosphere;
2.Vinyl chloride monomer production:corrosion resistance to chlorine, hydrogen chloride, oxidation and carbonation;
3. Oxide shaft chloride converted to six fluoride:
4. Corrosive alkali metal produce and usage filed, especially the sulfide use environment.
5. Use Chlorine produce titanium dioxide
6.Organic or inorganic chlorine produce: corrosion resistance to chlorine and fluoride.
8.Heat treatment furnace flask and components, especially in the carbonization and nitride atmosphere.
9. Petrochemical works production of catalytic regeneration in the application of more than 700 centi degree recommended the use of 600, in order to obtain a longer service life.
