Home Mould Products Induction Hardening Equipment/Machine

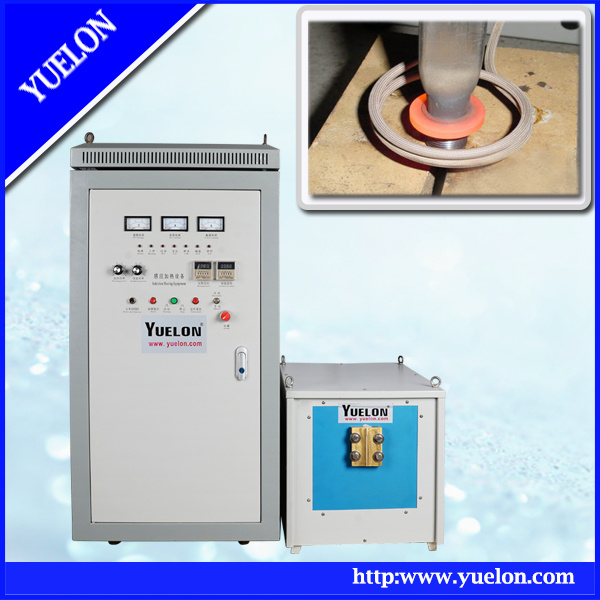

Induction Hardening Equipment/Machine

Induction Hardening Equipment/Machine
Price: Negotiable/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Main characteristics:
ModelMax
output
power
FrequencyMax
input
current
Working
voltage
Input
voltage
Duty
cycle
Water flowGenerator
weight
Transformer
weight
Generator
size
SF-30AB 30KW10-40KHZ48A342-430V




3phase
380V
50/60HZ











100%











 27L/(min)





(0.1Mpa)











61KG31KG
SF-40AB40KW10-40KHZ80A342-430V32L/(min)73KG37KG
SF-50AB50KW10-40KHZ90A342-430V32L/(min)75KG41KG
SF-60AB60KW10-40KHZ110A342-430V40L/(min)80KG46KG
SF-80AB80KW10-40KHZ160A342-430V50L/(min)106KG68KG
SF-100AB100KW10-40KHZ200A342-430V50L/(min)121KG91KG
SF-120AB120KW10-40KHZ240A342-430V68L/(min)138KG95KG
SF-160AB160KW8-30KHZ280A342-430V68L/(min)151KG121KG
SF-200AB200KW8-30KHZ320A342-430V80L/(min)172KG125KG
SF-250AB250KW8-30KHZ380A342-430V80L/(min)180KG131KG
SF-300AB300KW8-30KHZ460A342-430V100L/(min)185KG136KG
SF-350AB350KW8-30KHZ540A342-430V100L/(min)192KG141KG

Application:
Quenching: Quenching for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear(orchard shear).
Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, drive shaft, small shaft and fork.

Various electric tools: Gears and axes.
Quench for machine tool: Lathe deck and guide rail.
Quench for various hardware metal parts and machined parts, such as shaft, gear(chain wheel), cam, chuck and clamp etc.
Quench for hardware molds, such as small size mold, mold accessory and inner hole of mold.

Main characteristics:
1. IGBT inversion technology based LC series circuit .
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely
9. can substitute traditional heating methods.

Main characteristics:
>MOSFET power component and current inverting technologies have been used.
>simple structure and light weight.
> simple to operate, a few minutes is enough to learn it.
> simple to install, installation can be donne by unprofesstional person very easily.
> mul-tidisplay functions, with displays of over current, over voltage, water failure, phase failure and unfit lad
and so on, machine can be protected from destroys and machines can be repaired easily.
> light weight, small size.
> different shape and size of induction coil can be changed easily to heat different parts.
> advantages of the model with timer: the power and the operating time of the heating period and retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch
production to improve the repeatability.
> the separated models are designed to fit the dirty surroundings, the generator can be put in a clean space
to increase the reliability; with the small size and light weight of the separated transformer, it is conveient to
use in the production line and easily assembled inside the machinery or moved mechanism.

Main Application:
Rod forging
bolt, nut forging
heat treatment of shaft, gear, pin, etc.
shrink-fitting
annealing of pipe welding
etc.

We offer complete service :
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
Supply pictures or video help customer to install machine.
Provide long-terms technical support.


Prod Model: SF-80AB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For: Forging, Hardening, Melting, Heating and etc.
Place Of Origin: Yongkang China (Mainland)
Condition: New
Brand Name: Yuelon
Work Condiction: 24hours
Cooling: Water
Guaranty: 12month
Duty Cycle: 100%
System: IGBT
Certification: CE
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.

Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.

Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)

Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
