Industrial Furnace Vacuum Forming Ceramic Fiber Insulator
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |

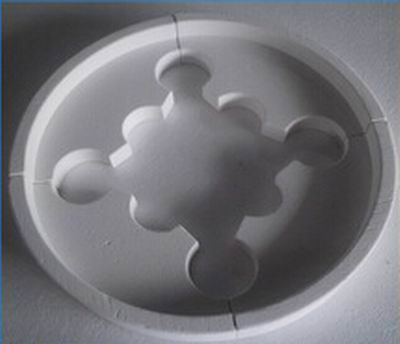

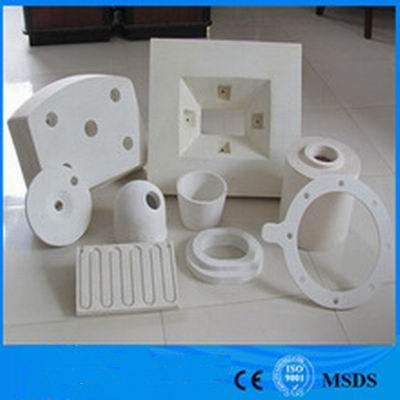

Industrial furnace vacuum forming ceramic fiber insulator, ceramic fiber shape, ceramic fiber furnace insulation. We can offer a variety of vacuum formed ceramic fibre shapes. These are used to cast aluminium and other non-ferrous metals. Any sizes and shapes are available.
Specifications:
1.Industrial furnace vacuum forming ceramic fiber insulator
2.pure white
3.specific size
4.high strength
5.MSDS, ISO9001
Product Characteristic
1.Low heat storage , low thermal conductivity
2.Excellent thermal stability
3.Excellent thermal shock resistance
4.Excellent wind resistance
Typical Application
1.Industrial kilns observation hole, thermometer hole;
2.Industrial furnace burner brick;
3.Industrial furnace door;
4.Sump and launder for aluminum products industry;
5.Heat insulation for thermal radiation in civil and industrial heating device
Technical Data
Types
|
1050 COM
|
1260 STD
|
1260HP
|
1360 HA
|
1430 Zirconium
|
Density(kg/m3)
|
300-450
|
Permanent Change on Heating(%)
|
950°Cx24h≤-4
|
1000°Cx24h≤-3
|
1100°Cx24h≤-3
|
1200°Cx24h≤-3
|
1350°Cx24h≤-3
|
W/(m@k) Theoretic Heat Conductive Co-efficient
|
0.13(600°C)
|
0.13(800°C)
|
0.13(800°C)
|
0.12(800°C)
|
0.16(800°C)
|
0.20(800°C)
|
0.19(1000°C)
|
0.19(1000°C)
|
0.20(1000°C)
|
0.20(1000°C)
|
Chemical Composition
(%)
|
Al2O3
|
37
|
46
|
47-49
|
52-55
|
39-40
|
Al2O3+SiO2
|
96
|
97
|
99
|
99
|
-
|
ZrO2
|
|
-
|
-
|
-
|
15-17
|
Al2O3+SiO2
+ZrO2
|
|
-
|
-
|
-
|
99
|
Fe2O3
|
≤1.0
|
≤1.0
|
0.2
|
0.2
|
0.2
|
Na2O+K2O
|
≤0.8
|
≤0.5
|
0.2
|
0.2
|
0.2
|
Specifications
|
Manufactured based on drawing provided by costumer
|
Packing
|
Carton or Wooded Box
|
| Prod Model: |
GS-CFI77 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Ceramic Fiber Shape |
| Name1: |
Ceramic Fiber Insulator |
| Name2: |
Industrial Furnace Vacuum Forming Ceramic Fiber in |
| Name3: |
Ceramic Fiber Furnace Insulator |
| Manufacturing Technique: |
Spray Silk Rug |
| Kind: |
High Purity Ceramic Fiber |
| Shape: |
Ceramic Fiber Plate |
