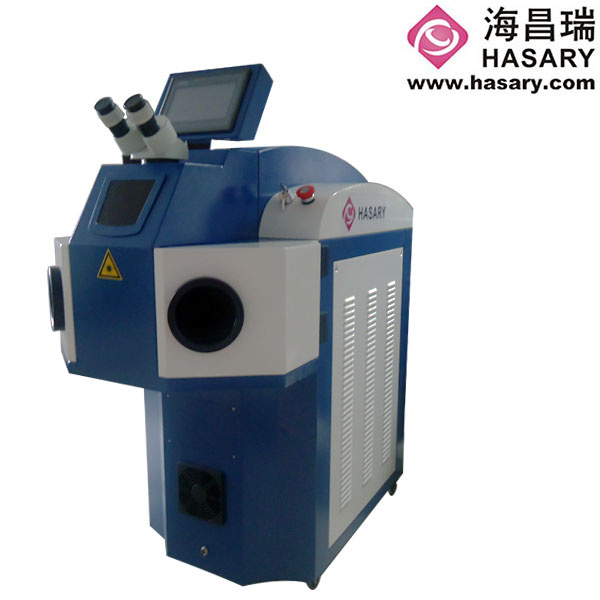

Industrial Mould Spot Welding Machine
>>> Product Features
Jewelry laser welder adopts manual programming automatic dual-purpose worktable, electric focusing, 16 group precise waveform control; Suitable for mold repair, and welding all kinds of electronic products; The main advantages as follows:
(1) Electric regulate the lever of laser focus
It is convenient to regulate lever of laser rapidly through the manual button on the panel, which makes the laser focusing become simple and fast.
(2) Positioning function of welding spot
It through the red light direction to find the rough place of welding spot on the work piece, aiming at the location of welding spot accurately by using Binocular high-magnification microscope observation.
(3) Electric regulating multiple size of scattering mirror (regulating the facula size).
(4) Manual control the movement of XY mobile worktable, optional automatic welding function of Electric control at the same time, which can realize automatic welding of products in high speed.
(5) Integrative design, small size, compact structure, so it's convenient and practical.
>>> Product Performance
1.The high energy and high density of laser impulse has small heat affected zone and smooth jointing surface, it can realize exact jointing which can't do by traditional techniques.
2.Hasary laser welding machine fetch in German technology, so the efficiency is high and easy to handle.
>>> Technical Parameters
Model |
HLW200 |
Workable Itinerary |
100mmX100mm |
Welding Depth |
0.1-3.3mm |
Laser Wavelength |
1064nm |
Pulse Width |
0.3-20ms |
Welding Frequency |
1-50HZ/1-100HZ |
Pump Source |
Xenon Lamp |
Single Pulse Engrgy |
≥30J |
Pulse Power |
6KW |
Adjustable Facula Size |
0.2-2mm |
Waveform number |
16 |
Cooling Mode |
Water Cooling |
Control of worktable |
Manual+ CNC Programming (optional) |
Consumable material |
krypton lamp / filter / water / electricity |
Optional accessories |
Anti-laser glasses |
Dimensions |
970mm×520mm×1100mm |
>>> Product Application
1.It can weld two different materials, such as copper-nickel, nickel-titanium, titanium-molybdenum, brass-copper, low carbon steel-copper.
2.It can be applied widely to mobile phone batteries, sensors, clocks, watches, jewelry, electronic components, eye glasses, crafts, precision instruments and medical apparatus etc.
>>> Optional Parts
1).Up and down work table (makes the machine moves up and down automatically)
2).Rotary attachment (engrave cylinders)
3).Red light pointer (make the laser beam visible)
4).USB port (make the machine work without a computer)
>>> Accessories
Necessary attachment like: water cooling, exhaust fan, air assist, software, English friendly user manual, data cable and other free parts.
>>> Package & Shipping
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.
>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling +86-18602717601.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and 5 years engineering service.
>>> Company Information
Our company located in Wuhan, China's laser capital, which have a very long history of laser equipment manufacturing.
The products cover laser cutting machine, laser engraving machine, laser marking machine and laser welding machine. The main products of the company are YAG Metal laser cutting machine and the high-tech laser die cutting machine for printing & packing industry.
Our company have very strong R&D group which develops new features for the products very year. Every new generation machine will performance much more better than the old types and more energy saving and environment protecting.
Every machine is well tested before shipping and all the products have obtained CE and FDA for the high-end users.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
Any more product information, please contact us !
Wuhan Hasary Equipment Co. Ltd is a new and high technology enterprise in the Optics Valley of China. Our company is specialized in computer software development and technology transfer, laser equipment, optical-electronic equipment and electromechanical equipment, and we also do the agent of various commodities and technology import and export business. And we also undertake precise laser processing business.
Relying on the Optics Valley of China and the advantage of optoelectronical high-tech strength from universities and research institutions, we are the main business agent of the optical equipment such as: Metal laser marking machine, laser engraving machine, laser metal cutting machine, laser welding machine, laser die board making machine and others. Our products can be applied to the fields of hardware auto parts, clothing, leathers, toys, electronic appliance, models, process advertising, stones. Decorations, plastics, glass industry and others.
Hasary insists on "quality wins the market and the quality service wins the customers". Complying with European CE certification, our products sell well in over 30 countries and regions, such as Brazil, Mexico, Belgium, Iran, Thailand, Korea, Vietnam, the USA, Germany, Italy, Australia, Pakistan, Egypt, Spain, South Africa and Lithuania, etc.
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
