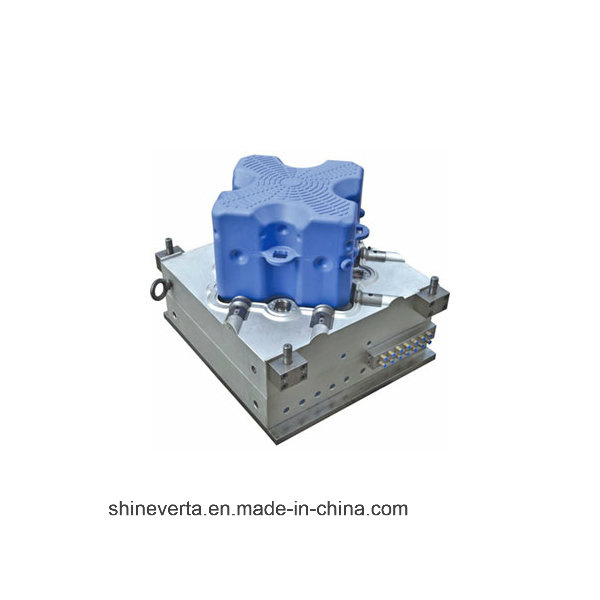

Injection Plastic Moulding Die (2014)
| Price: |
US $ 2000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
.Advantage
1 Good quality.
2.Strictd eliverytime .
3.Design software:UG.PROE.CAD etc.
4.HASO.DME.LKMmouldbase.
5.Specification drawingsPRO/ECAD,UG,CAD/CAM/CAE.
6.Precision machining NC,millingmachine,drillingmachine,numericallathe,alltypesoflathe.
7.Surface finish process polishing,sand blasting, heat treatment, painting, powder coating, anodizing,electroplating, mirror polishing.
8. On-time delivery
Mould Produce Process:
1.product design:customer send us the product drawing directly or we draw the product according to the sample,then we send customer the product drawing to confirm.
2.Mould Design:We' ll start to design mould after the product drawing confirmed, then send customer the mould drawing to confirm.
3.Mould Making:The mould start to make after the mould drawing confirmed, the process include Prepare the mold material,mold base,CNC machine,wire cut machine,EDMmachine,grinder machine,assember,fit mold
4.Mould Test:we' ll test the mould after mould assembly, then we' ll send customer samples a nd video of mould test to confirm
5.Final Process :The mould start to polish if the sample is ok, and make grain, nitridation or chroming if customer required
6.Mould Test:We' ll test the mould again after polishing, then send customer the final sample and video of mould test to confirm
7. Mould Packing:The mould stard to pack with wooden case after the final sample confirmed, then the mould will be sent to port and waiting for shipping
|
Item |
Description |
|
1.Mould material |
P20,718H,45#,STAVAX ESR S136,H13,2316,2083,2344 |
|
2.Hardness of steel |
vacuum quenching ,nitride,HRC41-47, HRC46-50,HRC60 |
|
3.Inserts / Slider steel |
H13 (DIN.1.2344),tempered with HRC46-50 |
|
4.Mould spare parts |
H13 (Din 1.2344),tempered with HRC40-45,nitrited with HRC60-62 |
|
5.Mould base |
LKM,HASCO |
|
6.Mould cavity |
Single / Multi |
|
7.Runner system |
Hot / Cold |
|
8.CAD centre for data formats |
IGES,X_T,STP & DWG,etc |
|
9.Plastic material |
ABS,PC,PE,PP,PS. |
|
10.Mould life |
Guarantee more than 700 , 000 shots by productions |
|
11.Delivery time |
7-9 weeks |
|
12.Terms of payment |
T/T or L/C at sight |
| Prod Model: |
SH-065 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
CNC, High Speed Carve, E.D.M, Wire Cut etc |
| Supply Ability: |
70 Sets Per Month |
| Tools Specification: |
Depends on Customers' Requirements |
| Package: |
Carton/Wooden Case Package |
| Mould Delivery: |
by Sea |
| Shaping Mode: |
Injection Mould |
| Application: |
Hardware |
| Installation: |
Semi Fixed |
| Process Combination Type: |
Compound Die |
shenzhen shineverta Mould Plastic & electron Co., Ltd. is a set of product development, design, mold manufacturing, injection molding, injection silk train service owned enterprises. We specialize in all kinds of precision mold design, manufacturing, precision plastic molding, etc., and a variety of independent research and household products, and won a number of national patents. The company has quality management system standard operation, products are exported to Europe, America and other countries.Company's existing plant area of over 3500 square meters, has a variety of imported equipment more than one, in which the British imported high-speed scanner machine, high-speed precision CNC machining center 1 set, 3 sets of imported CNC machining centers, EDM machine 6 sets , High precision mirror EDM spark machine 2 sets, line cutting 3 sets, gongs bed 15 units, and other ancillary equipment more than one molding, injection molding workshop with Hong Kong Dahua, Toshiba and Taiwan Union other world-class companies manufacture various types of injection molding machine 15 units. Also equipped with projectors, coordinate measuring instrument and other precision measuring instruments, precision molds to meet the requirements, the company has more than 6 senior engineers, over the years the company with technical skills, advanced equipment, good service, timely delivery, and win old and new customers.
The company has excellent team of technical personnel and advanced technology and equipment, the birth of each product are given the strength of our team and innovative spirit, with rigorous attitude, focus on excellence for customers to design the perfect product.
Companies implementing the five concepts - the concept of quality, cost concept, the concept of time, the efficiency concept, the concept of reputation as a criteria for each employee must have a job, but also the development of sustainable management company must pass through the road.
Operating principle - Vision strategic planning, short-term goal, to achieve "common growth, sharing achievements."
Quality policy - ring control, excellence, continuous improvement, customer satisfaction.
Quality objectives - breakthrough zero defect products, customer satisfaction, more than 99%
