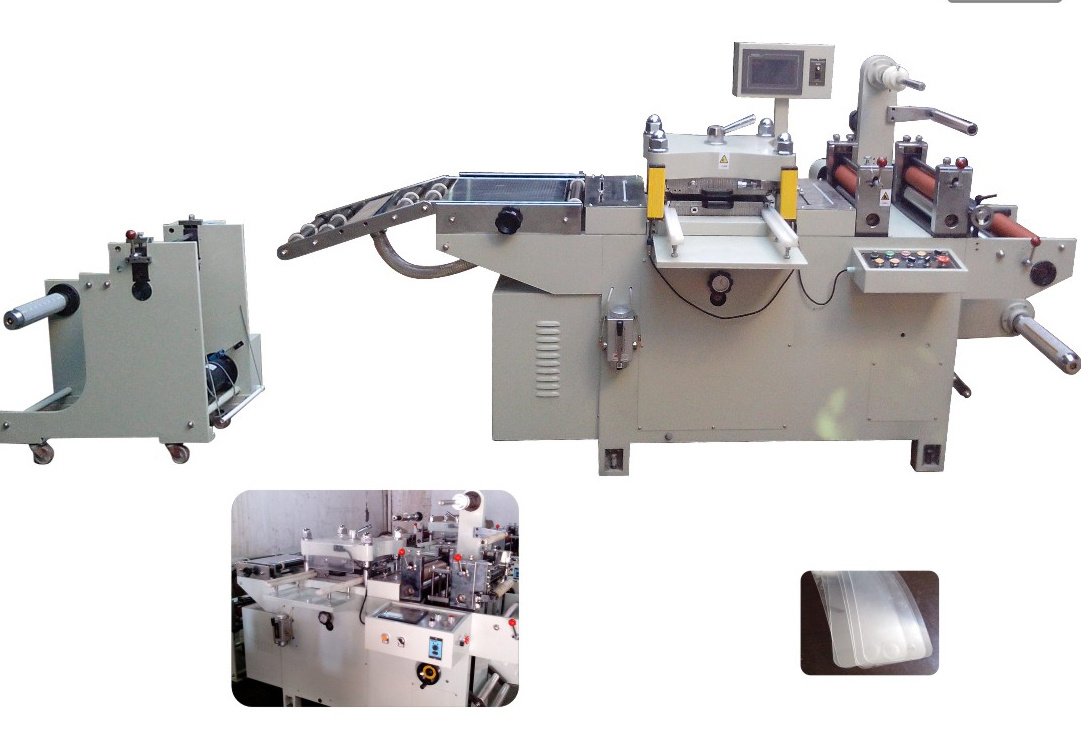

iPad Protect Film Die Cutting Machine
| Price: |
US $ 10000unit |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1unit |
| Pay Type: |
L/C,T/T |
JMQ-320A
Main characteristics of Flat Bed Roll to Roll Die Cutter:
This Flat Bed Roll to Roll die cutting machine die cuts through flat pressing and high precision unit while shifting materials and slitting are controlled through servomotor. The printing Abel's two-faced and Lengthways the color marks from three optics electric eyes to have exquisite tracking to locate, die cut, collect the discarded waste, slit or auto label in one processing. It is very applicable to die cut free paper adhesive tape, Dacron film trademark and laser anti-false trademark. It is ideal equipment for soft printing machine, continuous thread printing machine. Intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.
Optional device:
Hole punching device
Laminating device
Hot-stamping device
| Prod Model: |
JMQ-320A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Die Cutting Speed: |
20-180times/Min |
| Max Feeding Diameter: |
450mm |
| Max Web Width: |
320mm |
| Max Die Cutting Width: |
300mm |
| Max. Diecutting Length: |
290mm |
| Positioning Precision: |
±0.1mm |
| Total Power: |
3.5kw |
| Power Supply Voltage: |
220V±10% |
| Overall Dimension: |
2800×950×1400mm |
| Automatic Grade: |
Automatic |
| Placing Form Of Template: |
Horizontal |
| Imprinting Type: |
Platen |
| Application: |
Earthquake Products |
| Die Cutting Tool: |
Metal Mold |
Ruian City Jiayuan Machinery Company is located in Zhejiang province in China.Our company are specialized in hot melt coating machine, hot melt equipment, hot melt laminating machine, hot melt extruding machine, die-cutting machine, slitting machine, etc.
Hot melt equipment is widely used in the industries of paper carton package, shoe materials, cosmetics fill, furniture agglutination, bookbinding, dynamo agglutination, filter, auto inner-decoration, adhesive tape, garments materials, advertisement materials, medical dressing, label, nonwoven and electronic, etc for sealing, profile wrapping, edgebanding, assembly, lamination, multilayer, canlking, coating.
Our products are highly appraised by customers from South Africa, Hongkong, MID-Asia, Southeast Asia, Vietnam, Thailand, Iran, Pakistan, India, Indonesia, Spain, Ukraine etc.We also sell machines to Europe, we have got CE certification.
Jiayuan Machinery Co., Ltd is a large-scale manufacturer in a variety of hot melt machinery in China.In recent years, the factory is growing stronger and stronger, introducing & absorbing the advanced technology from foreign countries based on our economic strength.High standard management, technology and equipments which enable us to provide good quality to customers all over the world
Please don't have any hesitation to contact us for more information.
We are looking forward to cooperating with friends from all around the world!
