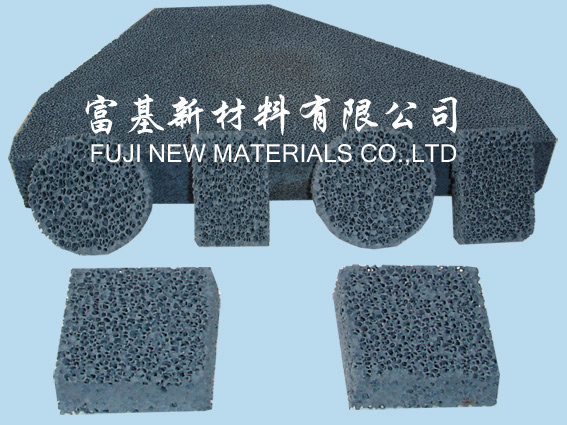

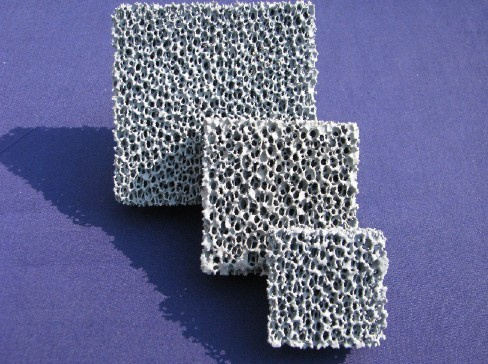

Silicon Carbide Ceramic Foam Filters for Iron casting
Apply to improve quality of nodular graphite iron castings, grey iron castings, tenacity iron castings, drop turbulent of iron solution at feeder mouth. It can bear seamy environment in the process of mouding. Purge iron solution. Improve quality of iron casting. Reduce foreign residue of iron casting. Stabilize time of moulding.
Technical Data:
Bore Density(PPi)/PP: 4-60
Porosity (%): 80-90
Refractoriness: 1500
Bending Strength (Mpa): 0.8
Compression Sterngth (Mpa): 0.9
Thermal Shock Resistance: 6
|
ROUND |
|
SQUARE |
|
SIZE |
PCS/CTN |
SIZE |
PCS/CTN |
|
SIZE |
PCS/CTN |
SIZE |
PCS/CTN |
|
φ30x12 |
1980 |
φ50×18 |
672 |
|
30×50×22 |
880 |
75×50×22 |
368 |
|
φ30x15 |
1650 |
φ50×20 |
616 |
|
35×35×22 |
1000 |
75×75×15 |
408 |
|
φ30×18 |
1848 |
φ50×22 |
560 |
|
37×37×12.5 |
1800 |
75×75×22 |
276 |
|
φ33x20 |
1100 |
φ55×15 |
784 |
|
40×40×11 |
1700 |
|
240 |
|
φ33x22 |
1100 |
φ60×20 |
396 |
|
40×40×12 |
1500 |
75x100x22 |
216 |
|
φ38x20 |
990 |
φ60×22 |
360 |
|
40×40×15 |
1300 |
82×82×13 |
288 |
|
φ40×10 |
1800 |
φ70×22 |
300 |
|
40×40×22 |
850 |
82×82×22 |
176 |
|
φ40×11 |
1700 |
φ70×15 |
450 |
|
40×55×22 |
640 |
90×50×12.5 |
576 |
|
φ40×12.5 |
1500 |
φ70×20 |
330 |
|
45×45×18 |
960 |
90×60×20 |
264 |
|
φ40×18 |
1000 |
φ75×15 |
408 |
|
49×49×18 |
672 |
100×50×22 |
288 |
|
φ40×20 |
950 |
φ75×20 |
300 |
|
50×50×15 |
840 |
100×100×20 |
156 |
|
φ40×22 |
850 |
φ80×14 |
280 |
|
50×50×20 |
616 |
100×100×22 |
144 |
|
φ42×12 |
1500 |
φ80×22 |
176 |
|
50×50×22 |
560 |
100×100×25 |
124 |
|
φ43×13 |
1400 |
φ80×15 |
264 |
|
55×55×12.5 |
928 |
110×70×15 |
300 |
|
φ48x20 |
616 |
φ80×20 |
192 |
|
55×55×13 |
684 |
110×80×20 |
192 |
|
φ50×12 |
1080 |
φ90×22 |
160 |
|
55×55×15 |
784 |
115×75×22 |
186 |
|
φ50×12.5 |
1008 |
φ90×20 |
176 |
|
55×55×22 |
512 |
120×100×18 |
144 |
|
φ50×13 |
952 |
φ100×22 |
144 |
|
66×60×13 |
528 |
120×120×22 |
120 |
|
|
|
|
|
|
60×60×15 |
540 |
125×100×22 |
120 |
|
|
|
|
|
|
60×60×16 |
504 |
145×45×20 |
260 |
|
Contact: Shabo |
|
60×60×22 |
360 |
150×80×20 |
146 |
|
|
65×65×22 |
336 |
150×150×22 |
50 |
|
|
66×66×16 |
438 |
150×150×25 |
40 |
|
|
70×50×15 |
600 |
200×120×20 |
76 |
|
|
70×70×22 |
300 |
|
|
Jincheng FUJI New Material Co., Ltd. is a high-tech enterprise which is engaged in the research, development and production of new materials, it was established in 2000 years and with registered capital of RMB 10 million. Our products have passed Quality System Certificate of ISO 9001: 2000 and owned self-run import and export rights. Our company has three branches and six undertaking departments. We have production lines of 30 million pieces Ceramic Foam Filters and 10 thousand tons iron oxide pigments annually production capacity. It has been a main productive enterprise of ceramic foam filters and iron oxide pigments in China.
Our company sets up the technology center, has the advanced physics and chemistry laboratory, with the domestic advanced production inspection and experiments facilities. For several years, we have successfully captured a series of technical difficulty which are the restrictions of formalization production ceramics foamed filters. We researched and manufactured independently series products of ceramics foamed filters for foundry, such as silicon carbide filter, alumina filter, zirconia filter, magnesia filter. Each technical performance target conforms to the national related standards which were examined by the national special ceramics authority departments. Among these products, the magnesia ceramics foamed filter has filled the domestic and foreign market blank, and it is the first enterprise which has realized the industry formalization production of magnesia ceramics foamed filter in domestic markets.
Welcome all kinds of inquiry and We'd like to communicate with all circles of society and cooperate sincerely.
