Specifications
YUS MOLD & MACHINERY IS ONE OF THE LEADING PROFESSIONAL COMPANIES TO MAKE PLASTIC INJECTION MOLDS AND MACHINERIES IN CHINA.
Name
Description
Mould material
45#, P20, S136, 3Cr13 etc.
Mould base
LKM, HASCO etc
Cavity
12cav
Runner
Hot
Design software
PROE, CAD, CAM, CAE etc.
Plastic material
PP, PE, PET etc.
Mould life
500, 000-3, 000, 000 shots/cav
Delivery time
30-50days
Specification
Depends on customer's requirements.

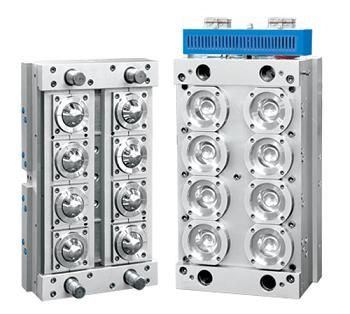

Jar Preform Mould with Shut-off Nozzle
Configuration
A. Off-center adjustment system
Our off-center adjustment system has become one of the Nationl patents in China. This system can make the error of preform's wall thickness less than 0.05mm. This system do not affect the life time of mould.
B. Self-lock system
Long bi-awls fixed orientation advanced techniques have been adopted on preform mould to reduce the preform eccentricity problem caused by our side reasons.
C. All the water Channels in the mould's each inner part, which make the cycle time short enough. And all the cooling channels have been specially treated to prevent them form jam.
1. ) The mould are employed Germany HOTSET Coil Heaters.
2. ) All cores and cavities are employed S136 stainless steel, and the main plate is employed P20.
3. ) The delivery time is 40 days after receiving 40% down payment.
4. ) The mould packaging is adopted wooden box.
* Yusheng Mold & Machinery (YUS) was founded in December 1988.
* Up to now, YUS has a payroll of more than 350 employees.
* Our staff has many years of experience in the PET/BOPP perform mold and hot runner field.
* YUS's core business focuses on PET/BOPP Preform Mold, Blow Molding Machine and Preform Injec-tion Systems.
* Over the past twenty years, YUS had a tremendous growth. During this long period of time. YUS has emerged as one of the major perform mold suppliers. The key to this successful growth: Our experience, product quality, and short lead times.
* Today YUS serves customers in more than 60countries worldwide.
* Adhering to the business concept of [Base on Diligence, Treat People with Honesty] and pursuing of the aim of [No Quality Trouble, Full Satisfactory of Users.
