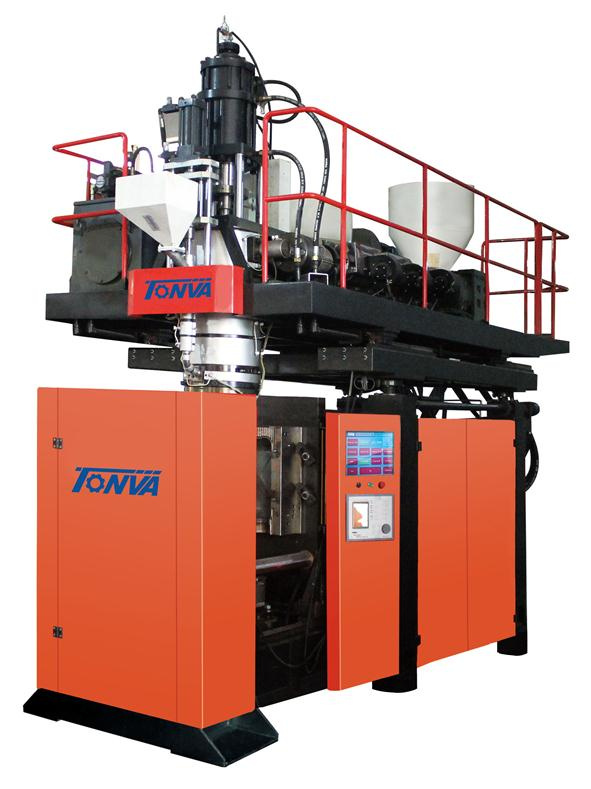

Jerry Can Plastic Extruder Blow Molding Machine Manufacturer

Jerry Can Plastic Extruder Blow Molding Machine Manufacturer
Price: US $ 43000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
ACCUMULATOR SERIES TVA-20L

Specifications:
22-year manufacturer of blow molding machine
Famous brand component parts
CE; ISO;SGS
1-year warranty
Customized

Basic specification:
Ø Single Station
Ø70mm screw / 15kw motor
Ø PE etc material

Working condition:
Ø Power supply: 380VAC/50Hz
(depending on client's country)
Ø Water Cooling: 20ºC
Ø Air source: 0.6m³/min

Technical characteristic:
Ø This series is applicable for PE/PP/PS/PC raw material,and capacity between 10L and 50L .It is widely used in plastic barrel,tool boxes,hollow desk board,chairs,auto parts and other large and medium-sized plastic hollow products.
Ø Adopts accumulator die head,with high quality nitrogen treatment and hardness of surface,resulting smooth flow and quick parison ejection.
ØBased on products,equip with 30 points or 100 points standard parison controller,to control the thickness of parison precisely.


Technical Parameters:

Category

Item

Unit
TVA-20L

Basic Specification




Raw Material
--PE etc.

Container Capacity Max
L20

Machine Dimension
m3.5×3.4×3.3

Total Weight
kg7200

Extrusion system






Diameter of screw
mm70

Screw L/D ratio
L/D28:1

Screw rotating speed
r/min10-85

Plasticizing capacity
kg/h80

Drive motor
kW15

Heating power
kW18

Die head




Die head material
--38CRMOALA

Accumulator volume
L3.7

Accumulator capacity
kg2.8

Heating power
kW8

Clamping system


(x)
Platen size (W x H)
mm700×850

Clamping range
mm300-800

Clamping force
kN200

Power consumption





Servo pump power
kW11

Total Power
kW52

Average power Consumption
kW/h22

Air consumption
m3/min0.6

Water consumption
m3/h1.2
Main Features:
(1)Screw: Specially designed based on material's trait,high quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2.
(2) Barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2.
(3) Drive mode: inverter and hard gear surface decelerator.
(4) Temperature controlling: PID&PWM temperature control model.
(5) Mode of cooling: adopt water cooler for the processing zone, fan cooler for the rest zones.
(6) Die head system: The melting plastic out of the extrusion system is divided through the core parts of  die head, distributed by the die head channel to become several peach shaped sections.
(7) Clamping system:Four tie rod hydraulic clamping,  the structure is compact,effective mold size
increase 25%,  four clamping pull rod center,  guide rails positioning accurate.
(8) PLC and HMI: Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display;
(9) Extrusion motor: with the inverter controlling and alloy hard gear surface decelerator driving, saving power, lower noise, balanced and stable screw rotation.
(10)Parison control system:
Adopt imported Japan MOOG 100 points parison controller,  cooperating with special electronic scale,  make the parison thickness can be freely adjusted during ejection, to meet ideal requirements.
(11)Down blowing system:
Adopt 38CrMoAlA for down blowing pin, precise action.

Company information:
TONVA Plastics Machine Co.,Ltd.was established in 1993.The company is one of  the largest manufactures of Extrusion Blow Molding Machines, PET Stretch blow molding machines and kinds molds in China.The Company has a group of experienced engineers who contribute more than twenty
years in Blow Molding Machine industry and a team who good at after-sale service.

Our Service:
1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Can trainning clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7. Custimized design as requirements.

Contact Us:
Sales Manager: Andy Huang
TEL: +86 576 81716102  FAX: +86 576 81716106  MOB: 86 13566834851
Website: www.tonva.cn
Add:Bingang Industrial Zone,Shamen Town,Yuhuan County,Taizhou City,Zhejiang. P.R. China.


Prod Model: TVA-20L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3.5*2.4*3.3m
Weight: 7.2ton
Packaging: Film or Wooden
Designe: Custom Designe
Delivery Detail: 60 Days After Receiving Deposit for Blow Molding
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Type: Extrusion Blow Molding Machine
Raw Material: PE
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: BV
Yuhuan Tonva Plastics Machine Co., Ltd. was established in 1993, and specialized in producing Blow Molding Machines\ Vacuum forming Machine and Moulds. Company has a group of experienced people who contribute more than twenty years in Blow Molding Machine industry and a team who good at after-sale service. The company has passed the ISO9001: 2008 Internationl Quality Control System and the CE ststem. Based on fabulous reputation and favorable service, our products reach great sales both in domestic markel and more than 40 countries. We produce more than 400 sets machines each year, while being highly valued and trusted by our customers.

The company focus on innovation and invest in the advanced technology year after year. Based on different functions, TONVA Blow Molding Machine can be divided into Single Station\Double Station\Four Station series; Single Die\Multiple Die Series; Single Layer\Muliple layers series; Accumulator Head\Parison Control System series. The range of the capacity is from 5ml to 3000L. They aresuitable for Various materials, such as PE\PP\PVC\PS\EVOH\EVA\PET etc. They are used to produce various kind of plastic products, such as oil barrel\Sprayer barrel\cosmetics bottle\pharmaceuticals bottle\food package\plastic toys\Christmas ball\plastic experimental apparatus and auto-parts etc.
