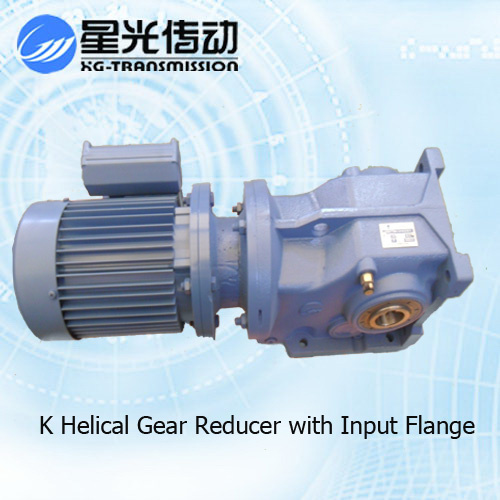

K Series Gearing Arrangement Agricultural Bevel Gearbox

K Series Gearing Arrangement Agricultural Bevel Gearbox

1.Product features:

A.R/F/K/S series gear reducers are optimized and designed according to international standard

B.High precision, high efficiency, fine classification in transmission ratio, wide range, large transmission torque, reliable performance, low noise, flexible installation, and convenient use and maintenance.

C.They are widely used in various low-speed transmissions, which are general basic parts of mechanical transmission.

2.Technical parameters:


Housing material	HT2OO high-strength cast iron from K37,47,57,67,77,87
Housing material	HT250 High strength cast iron from K97,127,157,167,187
Housing hardness	HBS90-240
Gear material:	20CrMnTi
Surface hardnesss  of gear	HRC58°-62°
Gear core hardness	HRC33°-40°
Input/Output shaft material	40CrMnTi
Input/Output shaft hardness	HBS241°-286°
Shaft at oil seal postion hardness	HRC48 ° -55 °
Machining precision of gears  material	Accurate grinding 6-5 grade
Heat treatment	tempering, cementing, quenching etc
Efficiency	94%-96%
Noise(Max)	60-68dB
Tem.rise:	40°C
Tem.rise	50°C
Vibration	≤20um
Backlash	≤20Arcmin
Bearing brands	NSK,HRB,C&U etc
Oil seal brands	NAK, CTY,SKF etc
Oil:	CHELSEA or CHANGCHENG
Motor	IP55, F class
Motor shaft	40Cr, Tempering, cementing,quenching etc.


3.Applications:
Foshan XG Transmission Gearbox reducer are widely used in ceramic, glass, food, metallurgy, beer & drink, printing and dyeing, textile, petrochemical engineering, warehouse logistics, wood-working machine, environmental protection equipment, printing and packaging, pharmacy, and leather.



4.Why US?
A.The  Foshan XG-TRANSMISSION Machinery Co., Ltd is State-owned Xingguanggong Mold Factory, a state-owned military industrial enterprise established in 1965. It completed reform in 2002.


B.The company has a strong technical force. It has more than 400 employees at present, including more than 40 engineering technicians and 10 experts and senior engineers enjoying special allowances of the State Council.


C. Since reform, the company has developed rapidly. It took the lead in passing ISO9001 International Quality System Certificate and International Quality Credit AAA++ Certificate in 2004, and Swiss SGS Certificate in 2009. It has won such titles as "Iconic Brand in Chinese Electromechanical Industry", "Famous Brand of Guangdong Province", "Non-public Scientific and Technological Enterprise in Guangdong Province", "National High and New-tech Enterprise", and "Tope 50 in Chinese Gear Industry" successively, which has been listed in the formation plan of "2011 Foshan Engineering and Technological R&D Center".
