Kt-373b Aluminum Window Hydraulic Punching Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

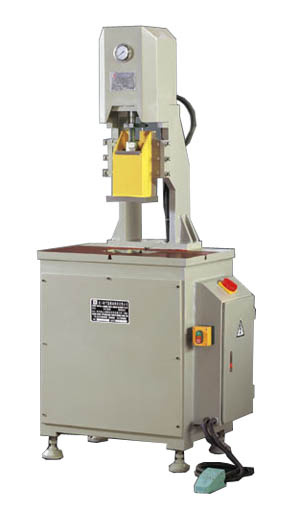

Model Name: KT-373B Seated Hydraulic Punching Machine
This machine is equipped with aluminum profile single mold and combination mold, capable of complete punch machining of all kinds of bores and slots of sliding window or casement window. The equilibrium of that machine is good, and the accuracy is high. It is easy to change the combination mold. It is the ideal equipment for aluminum window profile processing.
| 1. | Punching thickness | 1-2.5mm |
| 2. | Max. punching quantity | 4-8 pieces |
| 3. | Dffective worktable area (LxW) | 720x330mm |
| 4. | Max. punching travel | 60mm |
| 5. | Oil cylinder diameter | 80mm |
| 6. | The piston travel of oil cylinder | 60mm |
| 7. | The max. sealing height | 240-300mm |
| 8. | Oil tank capacity | 40L |
| 9. | Motor power | 2.2Kw |
| 10. | Rated oil pressure | 16Mpa |
| 11. | Max. punching shearing force | 10000KG |
| 12. | Overall dimension (motor) | 720x450x1785mm |
| 13. | Weight | 600Kg |
| Prod Model: |
KT-373B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
High Precision |
SHUNDE kingtool aluminum doors and windows machinery Co., Ltd. is a enterprise gathers to research, development, production and management of the integral whole, is a director unit of China Building metals construction association of Developments department, and become the profession standard drafter of national aluminum quality processing machine in 1998 June, the product also acquires the title of honor of "China excellent product".
In the last years, the king Tool group be very grateful for the public trust and involve support, passing by a series effort and the important action, making the KingTool group become the production base of the biggest scale in the domestic investment production, the most maturity in the kit product, the first in product development at the doors and windows construction and the veil wall equipments profession. The company product includes primarily now: the process equipments of aluminum metal alloy doors and windows, the process equipments of plastic steeldoors and windows, the process equipments of glass veil wall, the process equipments of compound aluminum plank and every kind of combination punch equipments, combining can be designed for the customer to manufacture every kind of non-standard equipments and molding tools according to the customer's different need.
The company is strict to regard "KingTool machine, expert's quality" as the principle; with "Beg the solid setting up innovation, solidify enterprising" as the guideline; with the "strive to make country strong, offer the society" as the spirit; with "help the satisfied product in customer's choice" as the tenet, in the foundation of firmly grasp the product quality, not only to provide expert's quality of three stage service system in preceding sell, selling, behind sell for custo-mer, at also to return the free providing the profession information for the custo-mer, providing the different scale install scheme and the factory building project for the customer according to the different district, the different term and requests, letting customer attaining high output to the best with the little devotion, and high-efficiency with low cost.
Because of this kind of honesty exactly, positive and enterprising work attitude, so THE KingTool GROUP has been in the lead position in the same industry, and the sell network is spread al over the market of Southeast Asia, city, autonomous region and each province of nation-wide, make various services more shortcut. In the market economy tide, THE kingTool Group wish to cooperate hand in hand with the public whole in the aspects of marketing, technique, quality and Services more best again, creating fine tomorrow together!
