L. Mold Repair Laser Welding Machine to Repair Auto Mould

L. Mold Repair Laser Welding Machine to Repair Auto Mould
Price: US $ 7300-7800/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union


Laser mold repair welding machine




The working principle and characteristics:

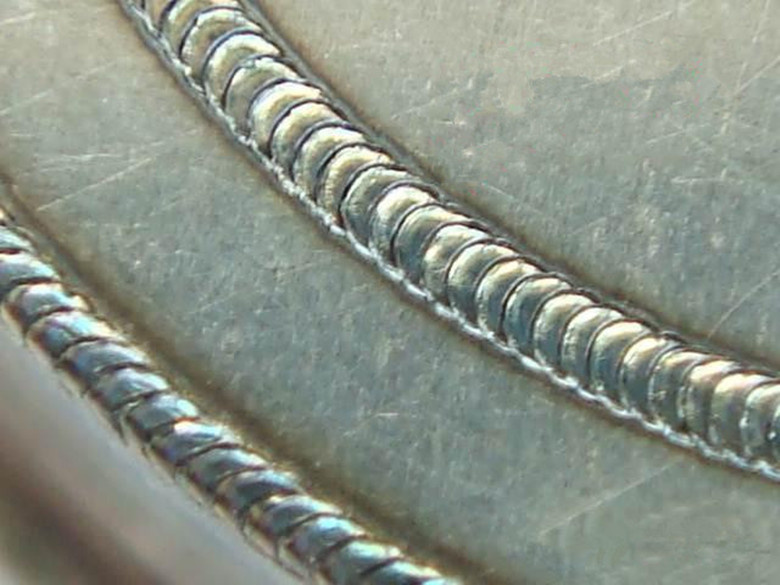

   The laser model repair welding machine welds specialized wire to the damaged part by high heat energy, produced instantaneous, and weld firmly with original substrate. By welding, sparking and grinding, the processed surface can turn into smooth.
Application:
Suitable for repairing cracks, chipping, mold edge, damage sealing side of precision molds. The applicable materials include stainless, tool steel, copper, aluminum, and other metal products, and can replace conventional argon welding machine. The heated area from welding is small, and the welded workpieces neither change color nor get distorted. Besides, large pores or air pockets will not happen, and the hardness can reach a Rockwell hardness of 50 to 60.

Technical parameters:
Parameters/model
Laser power200w
Laser wavelength1064nm
Laser typeND:YAG pulse
Light point adjustment range0.1-0.4mm
Welding depth≤7mm
Pulse frequency0-50Hz
Spot size0.2-4.0mm
Observation systemmicroscope
Shielding gasargon
Wire diameter0.1-0.4mm
Output focallength80mm/110mm/150mm/200mm
Power requirements200V±10%/50Hz     380v±10%/50Hz
Cooling methodWater cooling
Guarantee and after sale service (0:p)

Guarantee for one year excluding comsumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
Your order will be shipped within 3-5 business day after payment received.
24-hour technical support on internet or by telephone, free instructions and problem solving.
Free installation and fully test before send and free training for operators.
Please advise us the following information, then we can recommend you the most suitable model.

The exact material you want to process
The maxi. Output power you demand.
We are look forward for agency abroad.
Please feel free to contact me if you are interested in.

Prod Model: ZY-M200 /Mold repair
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type: Laser Welding Machine
Power: Small Power
Drive Type: AC Servo Drive
Certification: CE
Laser Type: ND:YAG Pnise
Control: Automatic/Mold Repair
Current: AC
Condition: New
Usage: Mold Repair
Size: L1600mm*W700mm*H1300mm
