Specifications

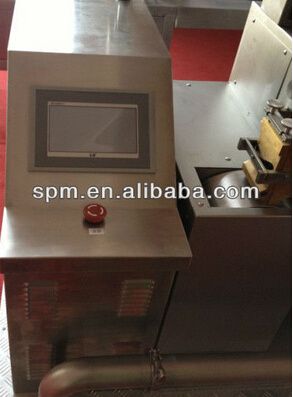

1.Mini Soft-capsule production line 2.Small size 3.PLC touch screen 4.Meet GMP Standard

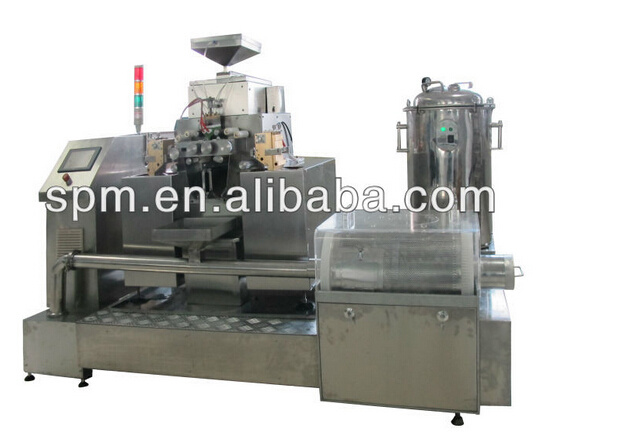

SRJ-5 Small Soft Capsule Making Machine the requirements of GMP standard. It is a simple and efficient laboratory machine mainly for R&D or small batch production of gelatin capsule products in laboratories or pharmaceutical researching institutes.
The whole set of the equipment is simple and efficient with small occupation. It includes a main machine. Control system, water-cooling system lubrication oil saving system, a dryer, a set of mould, as well as an auxiliary HTG-II Gelatin Dissolving Unit. All the materials for the whole set of the equipment are well selected to meet the GMP requirements, making it applicable for medical, food and cosmetic industries.
The main machine

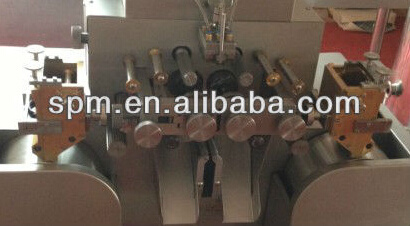

The main machine is the center of the soft gelatin encapsulation machine, whose function is to simultaneously finish the preparation of the gelatin ribbon, quantitative feeding of the content (liquid or sticky materials ). And packing to form the pills.
Technical parameters
Output : 4000granule/hour(500mg)
Charge variance: ±2%
Single plunger charge: 0-1.5ml
Size of the die roller: 64x75mm
Rotational speed of the die roller: 0-4rpm infinitely variable speed
Power of the main motor: 0.75kw
Power of the main machine: 1.8kw
Power supply: 220v, 50hz
Overall dimension: 1240x620x1250mm(Lx Wx H)
10.Weight: 300kg
PRODUCTION PROCEDURE | ITEM NO. | NAME | QTY | POWER | NOTEM |
CAPSULE MAKING | 1 | MAIN MACHINE OF SOFT ENCAPSULATION HTSY-5 | 1 SET | 2KW | 800X800X1200mm |
2 | ELEC CONTROL CABINET | 1 SET | | Press the area between pill 20 square metres |
3 | AIR COOLER | 1 SET | 1.2KW | Pressure pills between 18-24 degrees Celsius temperature |
4 | DRYER HR-II(1 CAGES) | 1GROUP | 2.2KW | Pressure pills between 45-55 percent humidity |
GELATIN MELTING | 5 | VACUUM STIRRING TANK HTG-30 | 1 PIECE | 2.2KW | 600x600x1450mm |
MATERIAL PREPARATION | 6 | SST. COLLOID MILL JM-50 | 1 PIECE | 2.2KW | |
DRYING SYSTEM | 7 | DRYING CAR AND TRAY(10TRAY/CAR ) | 1CAR | | Dry area: 40 square meters |
Tumble size: 330x460mm
Power of the motor: 220v 90w
Power of the motor: 220v 180w
Tumble rotating rate: 12rpm
Overall dimension (LxWxH ): 1120x50x510mm
Weight: 70kg
The dryer
The dryer consists of a one section tumble and one fans. Through adjusting the direction of the tumble, the gelatin capsules can be maintained in it fo drying or be discharged. The dryer is mainly for the forming and drying in soft gelatin capsule production.
