Die cutting machine, die cutter machine, die cutter.
Label die cutting machine, die cutter, punching machine
Die cutting machine
Die cutter
Die cutting machine
Flat die cutting machine
Die mould machine
Hot stamping
Characteristics:

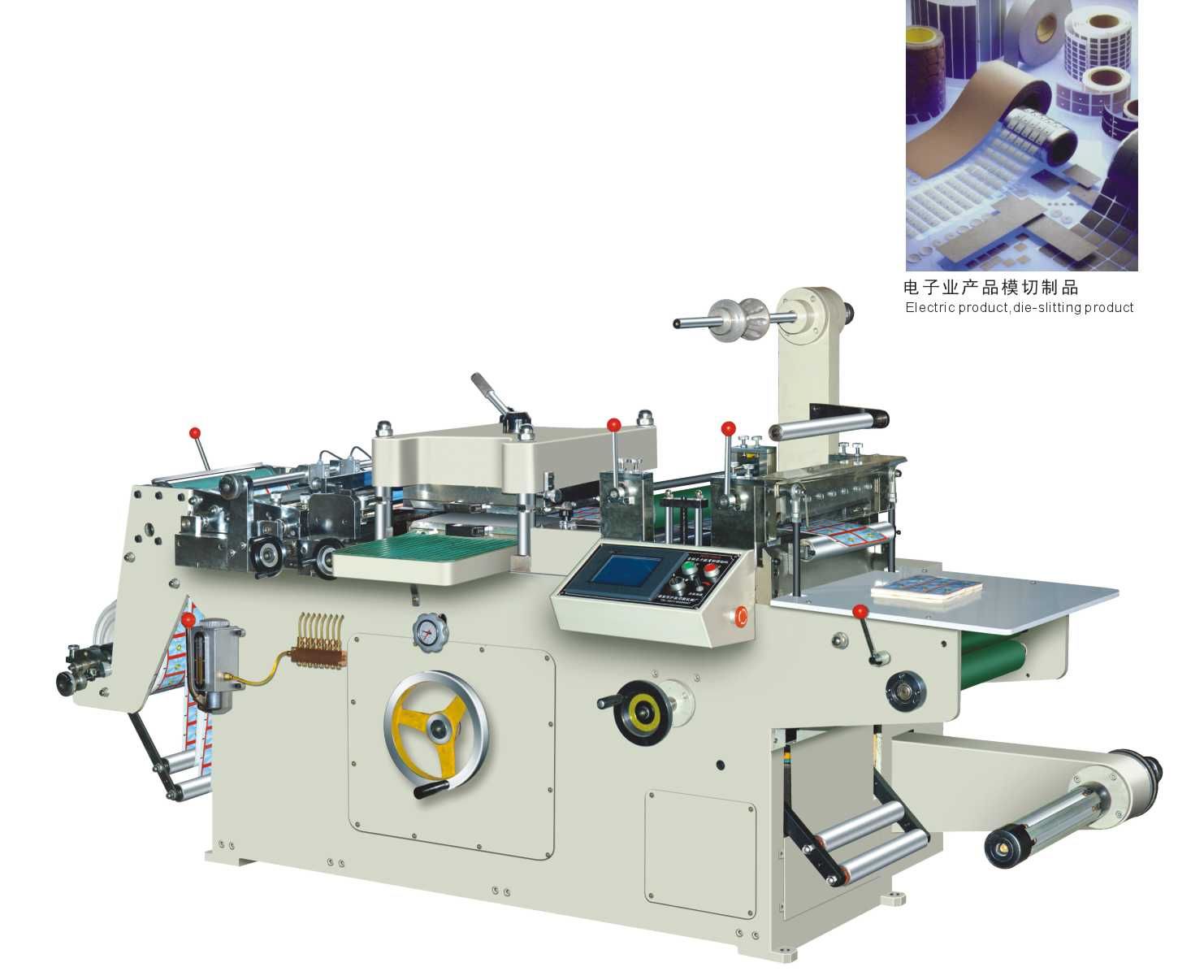

This machine is applicable to die cut through platenwith high precision, while the computer controls the slices and conveyor. The sides of trademarks and longitudinal route are tracked through three photoelectric eyes to position, while the die cutting, discarded delivery or auto trademark labeling can be finished in the processing of one web. The machine is applicable to die cut paper self adhesive trademark, Dacron film trademark and laser anti-false trademark. It is an ideal complete set of soft printing machine, continuous thread printing machine, relief printing machine and die compress machine for anti-false trademarks.
Main technical parameters:
Type: |
HSM-320 |
HSM-420 |
Die Cutting Speed: |
30-145times/min |
30-145times/min |
Max Feedging Diameter: |
450mm |
450mm |
Max Web Width: |
320mm |
420mm |
Max Die Cutting width: |
300mm |
400mm |
Max Die Cutting Length: |
300mm |
300mm |
Positioning Precision: |
0.15mm |
0.15mm |
Main Motor Power: |
1.1kw |
1.2kw |
Total Power: |
2.5kw |
3.5kw |
Power Supply Voltage: |
220v & plusmn; 10% |
380v & plusmn; 10% |
Weight: |
(about)1500kg |
(about)1800kg |
Overall Dimension: |
2600x950x1400mm |
2600x1050x1400m |
Ruian Husong Printing Machinery Co., Ltd., is a leading manfucturer specializing label equipments, printing machine.
The main products are flexo press, self-adhesive full automatic die-cutting machine and automatic slitting machine series that are well distributed to Southeast Asia, etc. The products are well popular with the numerous customers. In the fierce marketing competitione, the factory advocates the policy Quality Products, Fine After-sale Service, and develops and researches continually at the basis of original technology to make the products more technologically competitive.
Husong Printing Machinery is your ideal choice. We are looking forward to cooperating with all customers all over from world.
