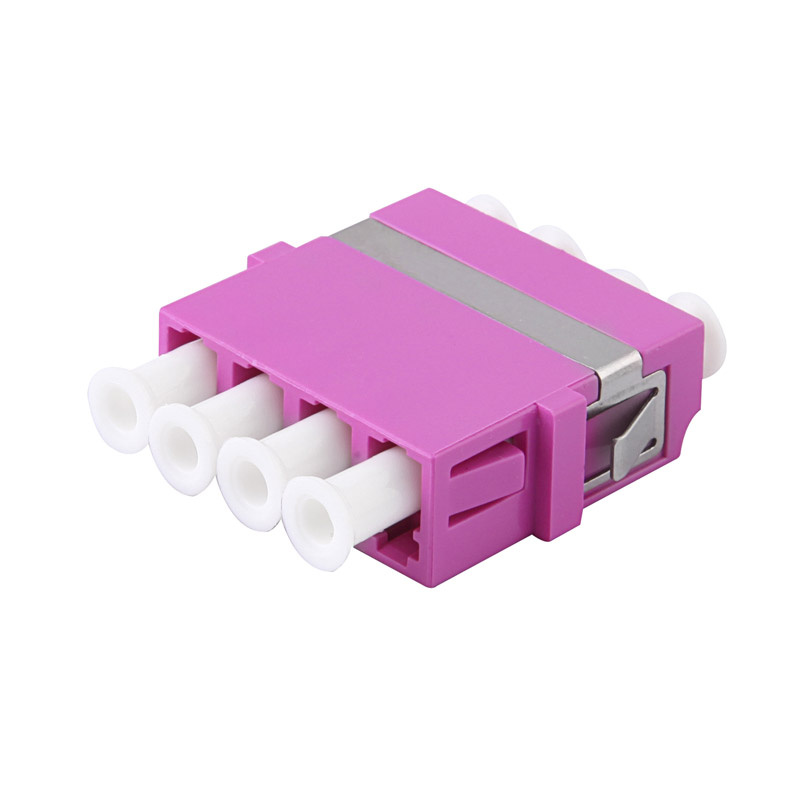

Brief Introduction
The LC adapters are use ceramic sleeve to connect connectors although they are
different size and appearance. Each species has a lot of types and colors can be chose.
Single mode and multi-mode are different performance and price. These adapters can
locking the connectors and get low insertion loss to transmission optical signal,KOC's
adapters are meet the Telcordia and IEC- 61754 stander, all material compliance RoHS
require.
Feature
1.Great repeatability and interchangeability.
2.Low insertion loss.
3.Hign reliability.
4.Compliant with IEC and Rohs standards.
Applications
1.Test equipment.
2.Connection of optical links in optical active
devices
3.Jumper connection
4.Production and testing of optical devices
5.Optical fiber communication system,CATV
6.LANs and WANs
7.FTTx
SPECIFICATIONS
| ITEM Parameter | Single-mode | Multi-mode |
| Adapter color | Blue,Green | Beige |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB Max change,500 mating |
| Channels | Simplex,Duplex,4channels |
| Material | Plastic or metal |
| Sleeve material | Ceramic(ZrO2) or Customized |
| Adapter type | Show as drawing (page of 2~4) |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
