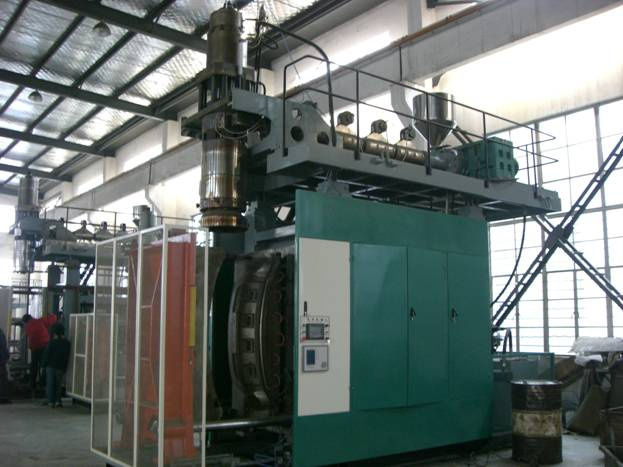

ZEB Series Accumulator die head Mode PE Blow Molding Machine, Equipment and materials meet the wide range and suitable for kinds of production. It's open and close mold systems is stationary open and close mould frame, extrusion system is the hard surface reducer, the Japanese import inverter. Die head system adopt to accumulator die head, all imports of hydraulic valves, seals, electro-hydraulic proportional control. Control System is make of MITSUBISHI PLC\Imported HMI\PLC Automati Temperature Controller\Imported Electronic Parts.
ZEB90N for max 60L jerrycan barrel. Tool box. Toolcase watering pot etc blowing products.
ZEB100NA for max 80L jerrycan barrel. Tool box. Toolcase watering pot etc blowing products.
ZEB100NB for max 160L jerrycan barrel. Tool box. Toolcase watering pot etc blowing products.
Traffic barrier
Feature & usage
This model adopts fixed mould open-closing system and accumulator die. Parison programmer is available to control thickness. This model is automatic process with low noise, saving energy, high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water box, oil box, air-condition pipe, auto tail), toys(wheel, hollow auto bike, basketball stands, baby castle), tool box, vacuum cleaner pipe, chairs for bus and gymnasium, etc. This model can produce various hollow plastic product.
Variety of functions for different products matching the technological requirements: Bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system, etc.
|
Specifications |
|
ZEB65N |
ZEB75N |
ZEB80N |
ZEB90N |
ZEB100NA |
|
material |
|
PE,HDPE,PP,ABS... |
|
|
max. product volume |
L |
15 |
20 |
30 |
60 |
80 |
|
output(dry cycle) |
pc/hr |
400 |
400 |
400 |
400 |
360 |
|
machine dimension(L×W×H) |
m |
3.8×2×3.2 |
4.1×2.4×3.6 |
4.5×2.4×4 |
5×2.6×4 |
5.5×2.5×4 |
|
machine weight |
ton |
6 |
9.5 |
12 |
12.5 |
17 |
|
clamping force |
kn |
95 |
175 |
215 |
400 |
460 |
|
platen opening stroke |
mm |
250-700 |
300-750 |
400-850 |
450-1050 |
500-1200 |
|
platen dimension |
mm |
600×500 |
720×600 |
880×800 |
980×950 |
1250×1080 |
|
max. mould dimension(W×H) |
mm |
400×500 |
440×650 |
600×850 |
750×1000 |
800×1000 |
|
cooling water pressure |
Mpa |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
cooling water consumption |
L/min |
50 |
60 |
60 |
85 |
180 |
|
blowing pressure |
Mpa |
0.6 |
0.8 |
0.8 |
0.8 |
0.8 |
|
air consumption |
m 3 /min |
0.6 |
0.7 |
0.8 |
0.8 |
1.2 |
|
screw diameter |
mm |
65 |
75 |
80 |
90 |
100 |
|
screw L/D ratio |
L/D |
24 |
24-28 |
24-28 |
22-28 |
25-30 |
|
output of HDPE |
kg/hr |
56 |
80-100 |
110-120 |
140-200 |
180-250 |
|
No. of screw heating zone |
zone |
3 |
3-4 |
3-4 |
4 |
4-5 |
|
screw heating power |
kw |
5 |
6.2-8.2 |
7-8.5 |
7.5×9.5 |
8.5-11 |
|
extruder motor power |
kw |
18 |
30 |
30-37 |
37-45 |
45-55 |
|
No. of heating zone |
zone |
3 |
3-4 |
3-4 |
4 |
5 |
|
die head heating power |
kw |
10 |
6 |
6 |
7.8 |
9.5 |
|
max. die diameter |
mm |
220 |
300 |
300 |
350 |
450 |
|
oil pump driving power |
kw |
7.5-11 |
11-15 |
15-22 |
30 |
37 |
|
accumulator capacity |
L |
1.8-2.7 |
3.8 |
4.4 |
6.6 |
12 |
