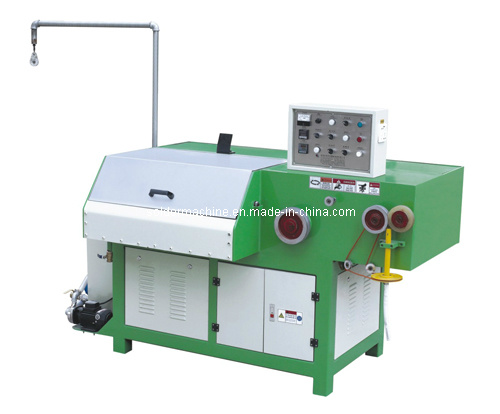

Leaded Solder Wire Drawing Machine

Leaded Solder Wire Drawing Machine
Price: US $ 10000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Machine name

Advanced Germany Technology 3 Rollers solder wire Drawing Machine

Application:
Apply to tin alloy wire processing.

Features:
1) Principal electric motor driving on the wire drawing principal axis and winding axis through a flat belt or a gear chain, through wimble drive to winding system and achieve the drawing & winding finally
2) Tin wire put into the draw-extend room through wire setting rack, go through tower wheel, then draw by the wire drawing model, cooling mode is spray or water logging
3) The wire will traverse pulling wheel, wire passing idler pulley, wire setting wheel and then enter into wire receiving tray and finished the process at last
4) Adopts top quality timing electric motor, principal axis processed by digital boring lathe in order to keep the homocentricity of the axis & the machine
5) Model seat adopt Germany's enchase technique to protect the model from being damaged
6) Wire stretching axes is the middle carbon steel S45C treated by high frequency
7) Tower wheel was forging the ball carbon S45C steel and heat-treated by several refine ways, which can provide long term use without distortion
8) Tower wheel sprayed by rigid chrome to assure wire quality


Machine detail

Machine frame: Adopt digital boring machine for hole boring to ensure the concentric of the axis and the machine frame.
Dies seat: Adopt West Germany(Inlay type), assure the drawing center distance to avoid the wire breakage.
Drawing axes: Made of S45C medium carbonizes steel with high frequency modified treatment, which can be more wear well.
Roller: Adopt S45C forging steel with high density to be more wear well.
Electric Equipment: Mainly adopt Taiwan SHSI brand.
Motor: Adopt top China brand (Dong Guan Motor), large wire drawing machine 11KW, Medium wire drawing machine 7.5KW, small wire drawing machine 5.5KW. Small wire drawing machine adopt inverter speed control. Roller spray chromium to assure the brightness of the fine size wire and reduce wire breakage as well.
Spare parts with machine:
Wire pay-off stand one set for large wire drawing machine.
Guarantee:
One year for free maintenance(Man-made damage not included, consumable parts like wire press wheel and dies not included)

About our company

Victory Technology Internation Ltd is a foreign Enterprise, which is specialiszed in equipment manufacture &develop for solder powde, solder paste, solder wire, solder bar /stick, silver wire and metal spraying materials, pure zinc, zinc alloy wire ect.
We have been making experience and technologies for electronic solder equipmengt, along with mature solder product producng technologies and formula with more than 20 years history, In 2004, our vivtory has been covering of 33, 000 square meter standard modernized factory building, being the largest electronic solder machine production base.
item  VT-17D
inlet wire diameter ¢9mm
outlet wire diameter ¢4.3mm
main power  11kw
 voltage  380v
 cooling method   steeped/spray
 speed control  inverter control
 wire speed   165m/min
 die no  17pcs
 machine elongation rate  digression
 2400*860*1380mm  2200*860*1380mm
 machine weight  0.85T
Prod Model: VT-17D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire Processing: Easy Operation
Color: Green
Spare Parts: with a Tank
Machine Size: 2200*860*1380mm
Machine Weight: 0.85t
Usage: Wire
Type: LZ Straight-Line Metal Drawing Machine
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.

Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.

On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
