Products can be divided into: Single Tank, Two League Tank, Four League Tank, and Five League Tank. It can be customized according to clients' requirements.

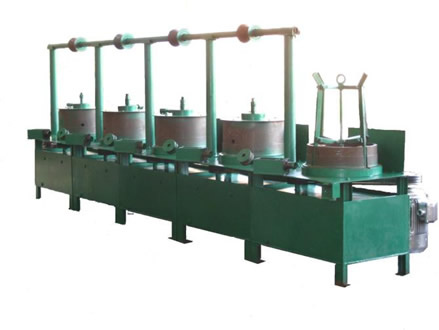

(Our technology is continuously renewal; The picture is for references only, please refer to the real object. ) Wire Drawing Machine Technical Parameter
Five League Tank
Four League Tank
Three League Tank
Two League Tank
Diameter of Rolling Drum(mm)
550-600
550-600
550-600
550-600
Maximum Inputting Wire(mm)
4
6.5
6.5
6.5
Minimum Outputting Wire(mm)
1.9
3.8-4
6-1
4.5
Moulds Number
5
4
3
2
Line Speed(m/min)
216
120-160
120-160
120-160
Power of Dynamo(KW)
37.5
44
34.5
-
Lubrication Method
Powder
This machine can draw iron wire, copper wire, aluminum wire. Those drawn wires can be used in weaving wire meshes, building, galvanize etc and it can be also used to water tank drawing wires.
Hebei Anping Huagang Special Wire Mesh Machinery Factory is located in Anping of Hebei province which is well known as Wire Mesh Land of China, It is a professional manufacturer and seller of wire mesh and wire mesh machines. It combines wiredrawing, weaving net, wire mesh further processing industry and trade together. It has full equipment, advanced technology and strong technical force. It executives strict, scientific management and detection means to fulfill customers' requirements maximally. Excellent quality, on-time delivery, reasonable price and cordial service are our goal to service our customers so we have earned a good reputation among our former and new clients.
Main products:
Screen type: Diamond mesh, chain linkencing, adjustable mesh, chain link fence, weaving net, crimped mesh, mine sieving mesh, wire netting, conveyer belt mesh, stainless steel wire, food wire mesh, anglebead mesh, wall angle mesh, braid, graticules mesh, mine protection mesh, square wire mesh, welded wire mesh, many kinds of fence netting, razor barbed wire mesh Dutch weave mesh and so on.
Machines:
Our factory can produce all machines of the above mentioned meshes, Our products have high quality and complete standards. They have been exported to America, South Africa, German, Korea, Belgium and countries of Southeast Asia and have earned trust from users both at home and broad.
Our factory follows the policy of honesty, good faith, success by good quality in doing business. We wish to Cooperate with all walks of life and develop together. We warmly welcome merchants and friends from both home and abroad to visit and give us suggestions and we will provide you our best products and service at the lowest price to cooperate with you.
