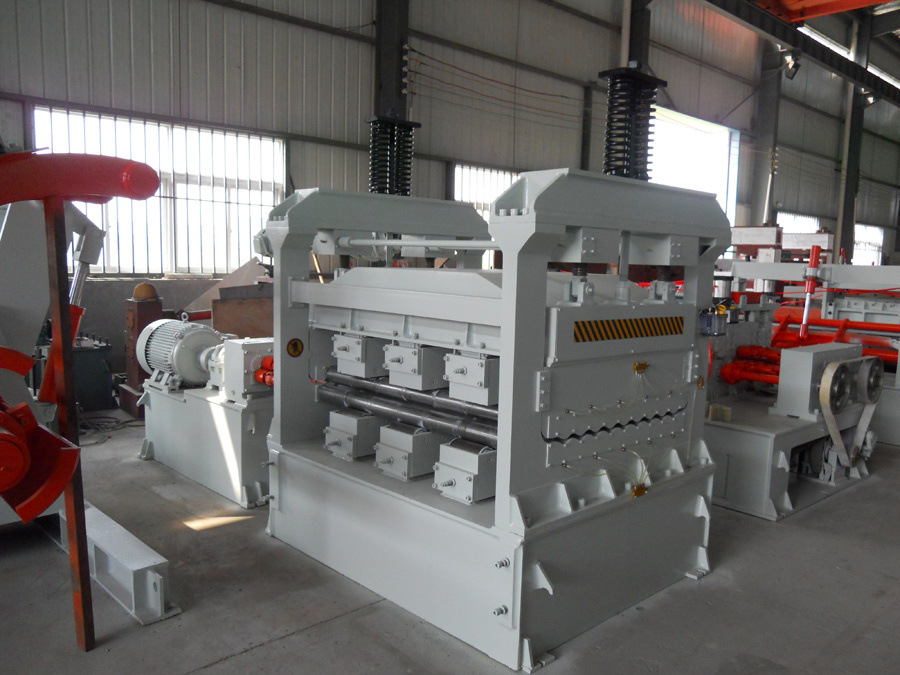

Performance features for high-precision levelling machine:
1. The machine employs a frame structure and has characteristics of high strength and good stiffness.
2. It has high surface protection for processing materials and high leveling accuracy.
3. Every single surface has three layers of rolls: Support roll, intermediate roll and work roll.
4. It employs a six-high leveling structure of a leveling roll, a complete support roll and multi-group support rolls.
5. Levelling rolls and support rolls material: GCr15, 9CrS and 9Cr2Mo are available for selection.
6. Levelling rolls and support rolls final process: Refining, hard chrome plating, fine polishing; Gap clearing device is designed for adjustment and depressing.
7. Reducer: TR reducer and ZLY reducer with hard tooth surface is available for selection.
8. Universal connecting shaft: Made of alloy structural steel.
9. Technology for heating processing, distribution box structure, adjustment and lubrication methods are the same as those for four-high levelling machine.
Bronx Machinery designs and builds high quality cut to length line, slitting line, shearer, press brake, uncoilers, straighteners, and coil processing industries. When it comes to coil processing equipment, Bronx's name and reputation are synonymous with speed, safety and quality.
This overview of our complete line of feeders, straighteners, reels and ancillary equipment that can be supplied as an integrated coil system or as stand-alone systems designed to meet your coil processing needs. You can also check product availability and pricing for each piece of equipment.
At Bronx, coil systems are built to the highest industrial standards to ensure long-lasting durability and operating efficiency. Each system may be purchased individually as a stock item or combined into a complete coil processing line. Our design engineers will work to match our technology with your production needs to achieve a more efficient, more profitable operation.
